In practice, 3d printing in automotive industry is less about novelty and more about speed, iteration, and solving parts that conventional tooling handles poorly. The real value shows up when a team needs a functional prototype, a lighter fixture, a complex duct, or a low-volume component without waiting weeks for tooling. This article breaks down where the technology works, which processes and materials matter, where it fails, and how I would evaluate it in a real program.

The practical wins are faster iteration, lighter tooling, and low-volume flexibility

  • Best fit: prototypes, jigs, fixtures, ducts, brackets, service parts, and motorsport components.
  • Strongest economics: small batches, frequent design changes, and parts with complex geometry.
  • Most common polymers: nylon-based materials, ABS/ASA, photopolymers, and TPU for flexible parts.
  • Main trade-off: slower production per part than molding, plus post-processing and validation steps.
  • Most common mistake: treating additive manufacturing like a printer instead of a full process chain.

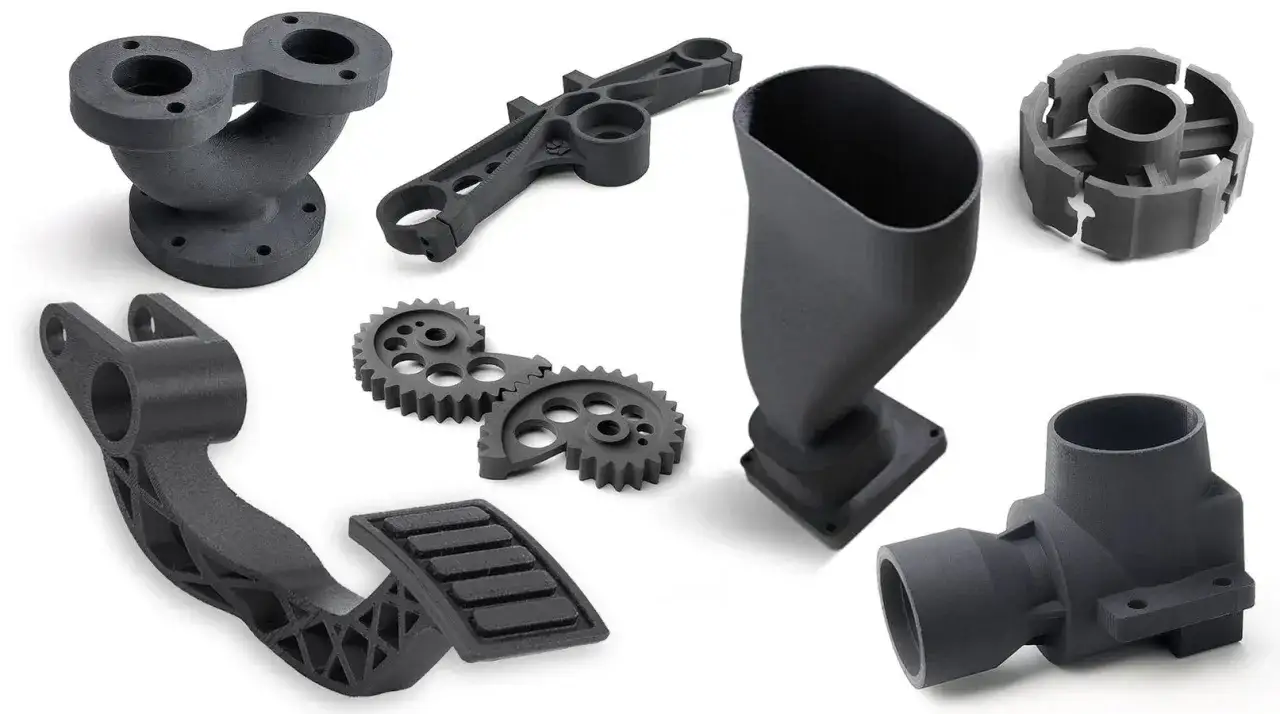

A collection of dark gray, 3D-printed parts showcasing the versatility of 3D printing in the automotive industry, including gears, a pedal, and complex structural components.

Where 3D printing matters most in automotive production

The best applications are usually the ones that benefit from geometry freedom, short lead times, or both. I see the strongest return in prototyping, tooling, fixtures, grippers, ducting, and low-volume end-use parts, especially when engineering changes are still happening and waiting for hard tooling would slow everything down.

For plastics work, printed jigs and fixtures are often the easiest win. They are light enough for operators, can be customized to a station, and are cheap to revise when the assembly line changes. Ford says some of its 3D-printed assembly-line tools are up to 50% lighter, which matters more than it sounds when a worker handles the same tool all day.

For product teams, the other big win is speed. A design can move from CAD to a testable part in hours or days, not the many weeks often tied to molding or machining. That is why additive is so useful for trim pieces, HVAC ducts, battery-related housings, sensor brackets, and airflow parts where the geometry is tricky but the volumes are still modest.

The boundary is just as important as the opportunity. If a part is simple, heavily standardized, and needed in very high volumes, injection molding usually remains the better answer. Once you know the job, the next step is matching the right process and material to it.

Which processes and materials make sense for each job

Automotive teams do not buy “3D printing” in the abstract; they buy a process that matches a part’s load, finish, temperature, and quantity. For most plastic applications, the decision comes down to whether the part is for visualization, functional testing, or production use.

Process Best fit Strengths Limits Common materials
FDM / FFF Shop-floor tools, rough prototypes, brackets Low cost, broad material choice, easy to run Visible layer lines, lower accuracy, anisotropic strength ABS, ASA, PETG, PA, carbon-fiber nylon
SLA / DLP Design models, cosmetic parts, clear components Excellent surface finish and detail Lower heat resistance and toughness than engineering nylons Standard, tough, and clear photopolymers
SLS Functional plastic parts, ducts, clips, housings Strong nylon parts, no support structures, good batch efficiency Surface is rougher than SLA, post-processing still matters PA12, PA11, glass-filled nylon
MJF Repeatable nylon parts and production aids Good batch throughput, consistent parts, solid mechanical performance Color options and finish are still more limited than visual-model processes PA12, PA11, filled nylons
PolyJet Presentation prototypes and design verification Fine detail, multi-material options, realistic appearance Not my first choice for high-heat or high-wear parts Rigid and elastomeric photopolymers
LPBF metal Heat-loaded or structural components Complex metal geometries and part consolidation Higher cost, more qualification work, more post-processing Aluminum, stainless steel, titanium alloys
If I had to simplify the choice, I would say this: use SLA when surface quality is the point, SLS or MJF when you need serious nylon parts, FDM when speed and shop-floor practicality matter most, and metal powder-bed fusion only when polymer is not enough. BMW Group reports more than 400,000 3D-printed parts a year worldwide, and its Additive Manufacturing Campus has already passed 1.6 million components, which is a good reminder that the technology scales best when the process is matched to the job. Once the process is clear, the real constraint becomes economics and design freedom.

How additive design changes cost, weight, and lead time

The argument for additive manufacturing is rarely about one metric alone. A part may cost more per unit than a molded alternative, yet still win because it reduces assembly steps, eliminates tooling, shortens development, or cuts vehicle weight.

That is why part consolidation is such a big deal. If one printed component replaces three molded pieces, two fasteners, and a manual assembly step, the real savings show up in labor, quality, and serviceability, not just the unit price. I also think designers sometimes undervalue the ability to build internal channels, lattice structures, and localized reinforcement directly into a part instead of adding them later through extra hardware.

The weight story matters too. In automotive, grams add up fast, especially in components that sit high in the vehicle or move with the operator during assembly. Printed brackets, ducts, and carriers can be optimized for stiffness where it matters and stripped down everywhere else. That is one reason the technology is so effective in tooling and support hardware before it ever reaches a vehicle.

Still, the economics are honest. For high-volume, simple parts, conventional molding remains cheaper. Additive starts to shine when the part is low volume, changes often, or has enough geometric complexity that traditional tooling would be expensive to justify. That brings us to the part most teams skip: the validation chain.

How I would move from concept to validated production

The fastest way to waste time is to print a part before the requirements are clear. My workflow is simple: define the job, choose the process, design for the process, validate the part, then decide whether it is a prototype, a production aid, or a true end-use component.

  1. Start with the load case. Define temperature, chemical exposure, vibration, UV, crash relevance, and expected life.
  2. Pick the process before finalizing geometry. A part designed for FDM should not be built like an SLS part, and a cosmetic SLA prototype should not be treated like a structural nylon bracket.
  3. Design for printing, not against it. Use consistent wall thickness, generous fillets, self-supporting angles, escape holes for powder removal, and orientation that reduces weak planes.
  4. Account for post-processing. Sanding, vapor smoothing, dyeing, heat treatment, support removal, and inspection can change cost and dimensional accuracy more than the print itself.
  5. Validate with the same discipline you would use for any other process. Check dimensional repeatability, tensile or fatigue performance where needed, and lot-to-lot consistency in material feedstock.

The big mistake I see is assuming one successful prototype proves a production-ready process. It does not. Additive programs only become reliable when design rules, machine settings, and inspection criteria are locked down together. Once that is in place, the next question is what can still go wrong.

The limits that decide whether a part belongs on the printer

There are four limits I watch first: heat, anisotropy, surface finish, and throughput. Heat matters because many polymer parts are fine on a bench but fail near a hot engine bay or battery enclosure. Anisotropy matters because layer orientation affects strength, so a part may be strong in one direction and weaker in another. Surface finish matters when aerodynamics, sealing, or customer-visible quality is involved. Throughput matters because even a fast printer is still slower than a mold once volumes climb.

Limit What it usually means How I handle it
Heat exposure Polymers can soften, creep, or deform near hot zones Choose higher-temperature materials, test in real conditions, or move to metal
Layer direction Strength is not equal in every axis Orient the part around the main load path and validate mechanically
Surface quality Visible layer lines can affect sealing and cosmetics Use the right process, then plan finishing early
Build size Large parts may exceed the machine envelope Split the part intelligently or move to large-format systems
Post-processing Support removal and finishing can absorb time and budget Design for self-support, powder escape, and minimal cleanup

I would also be cautious about two hidden costs: support removal and inspection. Complex geometries often need more post-processing than the CAD file suggests, and that can erase much of the time savings if the part was not designed with additive in mind. Chemical resistance, creep, and long-term fatigue are also easy to underestimate, especially on polymer parts that sit under load for months.

That said, the limits are predictable, which is why the technology is valuable when used honestly. If a team needs a repeated, safety-critical, high-volume part with tight cosmetic standards, conventional manufacturing still wins. If the need is flexible, low-volume, or design-heavy, additive usually deserves a serious look.

What I would prioritize first in a 2026 automotive program

If I were starting from zero in 2026, I would not begin with a body panel or a safety-critical engine part. I would start with production aids, service tools, and low-volume plastic components that can prove value quickly: jigs, fixtures, trim prototypes, air ducts, sensor mounts, and ergonomic shop-floor tools.

  • Measure lead-time reduction in days, not just unit cost.
  • Track operator ergonomics and assembly errors, because those gains are often where printed tools pay back fastest.
  • Use one material family per application first, then expand only after validation is stable.
  • Build a clear rule for when a part graduates from prototype to pilot production to final series manufacturing.

The technology is most persuasive when it removes friction in the development chain and not just when it produces a flashy part. If I had to condense the whole topic into one sentence, I would say this: additive manufacturing in automotive wins when it saves time, simplifies assembly, or unlocks shapes conventional tooling cannot justify. That is the standard I would use before committing budget or expecting production results.

Frequently asked questions

3D printing offers faster iteration, lighter tooling, and flexibility for low-volume parts. It excels in prototyping, jigs, fixtures, ducts, and brackets, reducing lead times and enabling complex geometries not feasible with traditional manufacturing.

FDM is used for rough prototypes and tools, SLA for cosmetic parts, and SLS/MJF for strong nylon functional parts. Metal LPBF is reserved for high-heat or structural components where polymers are insufficient.

While unit cost can be higher, 3D printing reduces overall costs by eliminating tooling, shortening development cycles, and enabling part consolidation. It significantly cuts lead times from weeks to days for prototypes and low-volume parts.

Main limitations include heat exposure for polymers, anisotropic strength due to layer direction, surface finish challenges, and slower throughput compared to high-volume molding. Post-processing and validation also require careful consideration.

Begin with production aids, service tools, and low-volume plastic components like jigs, fixtures, trim prototypes, and air ducts. Focus on measuring lead-time reduction and ergonomic gains before moving to more critical vehicle parts.
