The design choices that matter most
- Cantilever clips are the default, but tight packaging often pushes a design toward U-shaped or annular geometry.
- Root radius, wall thickness, and undercut size matter more than decorative CAD details.
- Short-term strain is the real design budget; frequent opening means backing off that budget.
- Material choice changes both insertion force and long-term creep.
- A small validation test can prevent a costly retool later.

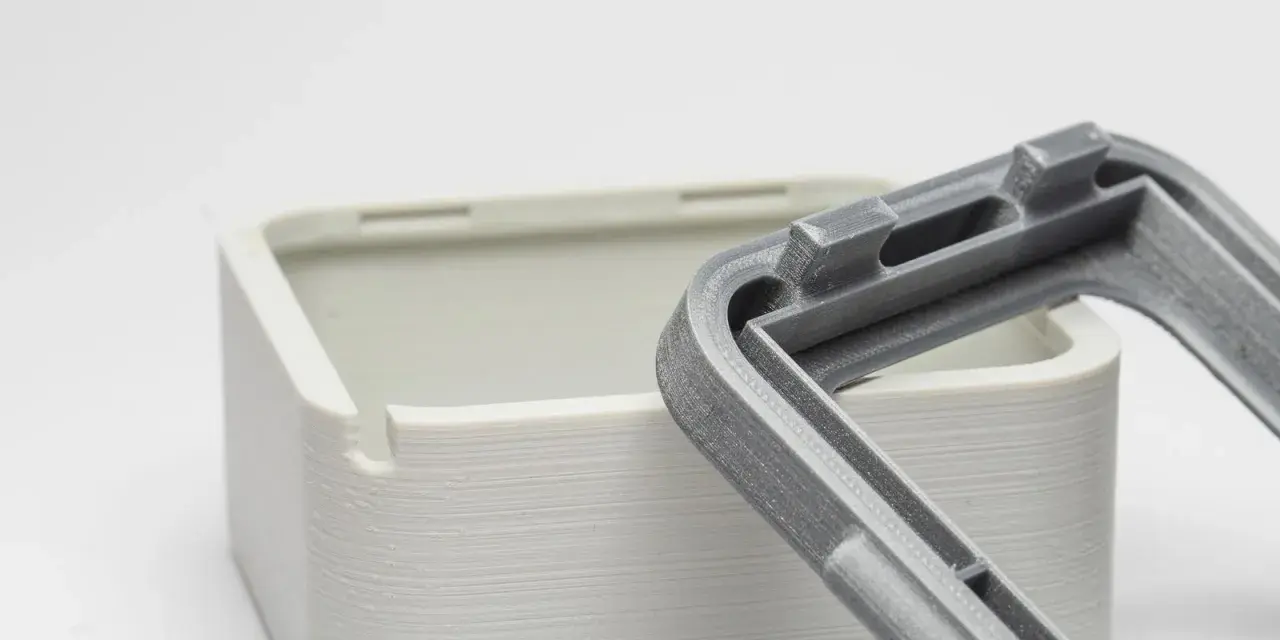

Why snap-fit connections still win in plastic housings
When I compare a snap to screws or adhesive, I usually start with assembly time. A good clip reduces parts count, keeps the outside of the product clean, and removes the need for torque-controlled fastening on the line. That is especially useful in U.S. consumer products, appliances, and light industrial housings where labor time and appearance both matter.
The trade-off is straightforward: a snap is fast, but it is not forgiving. It depends on material behavior, mold accuracy, and a geometry that can flex without taking permanent set. If any one of those is weak, the joint becomes noisy, loose, or brittle.
| Criterion | What a snap-fit does well | Where it struggles |
|---|---|---|
| Assembly speed | One motion, no tool, no loose hardware | Can be hard to automate if the force window is too narrow |
| Cost | Removes screws, nuts, inserts, and often secondary operations | Tooling is less forgiving if the geometry is wrong |
| Appearance | Hidden retention points keep the exterior clean | Needs careful wall transitions to avoid sink and witness marks |
| Serviceability | Can be designed for tool-less opening | Repeated opening wears the feature and lowers retention |
| Tolerance behavior | Works well when plastic shrink and stack-up are controlled | Sensitive to variation if the undercut is too aggressive |
That balance is why I treat snap retention as a system decision, not just a detail on the housing. Once you know why you want it, the next step is choosing the right geometry for the space you have.
The joint families that matter most
Most products do not need an exotic clip. They need the right spring element for the package they already have. In practice, I keep coming back to four families: cantilever, U-shaped or L-shaped variants, torsional, and annular.
| Joint family | Best use | Why I choose it | Main caution |
|---|---|---|---|
| Cantilever | Flat-wall housings and simple covers | Easy to design, easy to mold, and usually the first prototype choice | Highest stress sits at the root, so the beam must be sized carefully |
| U-shaped or L-shaped | Tight packaging where a straight beam is too short | Extends effective length without growing the product envelope much | May require slots or extra wall features that affect cosmetics or airflow |
| Torsional | Designs where twist is acceptable and bending room is limited | Loads the joint through torsion rather than pure beam deflection | Repeated twisting can bring fatigue into play sooner than many teams expect |
| Annular | Caps, cylindrical closures, and compact round parts | Load is distributed around the circumference, which can make the joint strong and compact | Usually needs higher assembly force than a cantilever clip |
When I see a housing with almost no spare length for a beam, I usually stop trying to force a straight cantilever into it. A U-shaped or L-shaped feature often solves the packaging problem cleanly, while annular retention is better when the product is already circular, such as a cap or collar. The next question is not which family looks neatest in CAD, but how to size the feature so the plastic survives assembly.
How I size the geometry so the clip survives assembly
The main mistake I see is starting with the undercut and only later asking whether the plastic can actually carry it. I do the opposite: I start with the material’s allowable strain, then work backward to the arm length, thickness, hook depth, and lead angle. That keeps the design grounded in the resin’s real behavior instead of in a perfect-looking model.
There are a few geometry rules I treat as non-negotiable. First, the root radius matters more than most teams expect. Covestro’s design guide notes that the radius should not be less than 0.015 in, and I treat that as a practical floor rather than a target. A larger radius reduces stress concentration, but going too large can create a thick section that invites sinks or voids, so there is always a balance.
- Design from strain, not from space. The part may fit in the envelope and still be overstressed.
- Keep the root smooth. Sharp transitions create the crack starter you do not want.
- Share deflection if you can. If both mating parts flex, the strain on each side drops and the allowed undercut can grow.
- Use the entry and return angles intentionally. A shallow lead angle lowers insertion force; a steeper return angle improves retention.
- Derate for reuse. If the part will be opened and closed repeatedly, I back off the short-term strain budget instead of assuming the first-cycle design will last forever.
| Material behavior | Short-term snap loading guidance | What it means in practice |
|---|---|---|
| Semicrystalline thermoplastics | Can approach the yield point in a single brief operation | Useful when you need a tough clip and can control the geometry well |
| Amorphous thermoplastics | Often designed to about 70% of yield strain | Good for predictable flex, but still needs a conservative root design |
| Glass-fiber-reinforced compounds | About half of elongation at break is a sensible starting point | Stiffness helps, but the clip window narrows quickly |
| Repeated separation and rejoining | Use roughly 60% of the short-term values | The margin drops fast once the joint becomes a service feature |
If those numbers feel restrictive, that is the point. Snap features work because the plastic stays elastic, not because it looks clever on the screen. Once the geometry is realistic, the material and manufacturing route become the deciding factors.
Material and manufacturing choices decide the real outcome
I have seen perfectly shaped clips fail because the resin was wrong. A stiff but brittle material can look strong in CAD and still crack at the root, while a forgiving resin can survive assembly but creep under load and slowly lose retention. For that reason, I always match the clip concept to the material family before I commit to tooling.
| Material family | Why I reach for it | Watch-out |
|---|---|---|
| PP and PE | High flexibility, low cost, and easy deflection | Creep and heat resistance can limit long-term retention |
| ABS | Balanced, easy to mold, and common in consumer housings | Less strain margin than a softer, more flexible resin |
| PC | Tough and suitable for clearer or premium housings | Notch sensitivity means the root detail matters a lot |
| POM or acetal | Good fatigue behavior and low friction | Dimensional control matters because the fit can feel either too loose or too sharp |
| Glass-filled nylon | Higher stiffness and better heat resistance | Lower snap strain means the clip window is narrower |
For production, injection molding is still the baseline for most plastic snap features. CNC and additive manufacturing are useful for prototypes, but I treat printed parts as fit and function checks, not as proof that the final part will behave the same way. The surface finish, anisotropy, and local stiffness of a printed clip can be very different from a molded one.
Tooling also matters. If the undercut forces a slide, lifter, or other side action, I want that cost visible early rather than discovered after the housing is already approved. That is often the point where a hybrid solution, or a different fastening method altogether, becomes the smarter choice.
How I test a snap design before tooling
A clip that feels fine in CAD can still be annoying on the line or fragile after a hot soak. I validate it in the same sequence the user will experience it, then I add margin for the cases they will never mention in the spec sheet: a colder warehouse, a hotter vehicle, a sloppy assembly stroke, or a technician opening the part one time too many.
- Measure insertion force. I want the part to assemble without making workers fight it or bend the housing.
- Check retention force after conditioning. Heat, humidity, and cold can change the real lock-up more than the CAD model suggests.
- Cycle the joint. Repeated opening exposes whitening, creep, permanent set, and root cracking fast.
- Test tolerance extremes. Best-case and worst-case parts should still assemble within the intended force window.
- Inspect the root and hook after every test. That is where the first damage usually shows up.
If the product lives in a car, a kitchen, a warehouse, or anywhere else with meaningful temperature variation, I test those conditions explicitly. I would rather find out in validation that the clip loses retention after conditioning than discover it after the first customer returns a loose cover. From there, the only remaining question is when the snap itself is the wrong tool for the job.
The decisions that keep the part usable after launch
I do not force a snap into every housing. If the part carries a safety-critical load, has to be opened often, or sits in a harsh thermal environment, I usually move to a hybrid or a different fastener. A snap is best when I want fast assembly, a clean exterior, and moderate loads. It is less attractive when the retention has to survive abuse, repeated service, or large manufacturing variation.
- Use a hybrid when you want the clean look of a clip but still need a screw for clamp load or service access.
- Prefer a screw or latch when technicians need repeated opening without damaging the enclosure.
- Avoid pure snap retention when the resin choice is still undecided or the tolerance stack is not under control.
The best snap features are quiet about their existence: they assemble cleanly, hold predictably, and disappear into the product architecture. That only happens when geometry, material, and testing are treated as one decision, not three separate ones.
