3D-printed optics are no longer a novelty, but they are still easy to misunderstand. The real question is not whether a lens can be printed; it is which manufacturing route, material, and finishing steps will produce useful optical performance for the job you actually need. This article breaks down where printed lenses work well, where they still struggle, and how I would judge the trade-offs before committing to a design.
What matters most before choosing printed optics
- Best use cases are custom, low-volume, or geometrically complex optics, not high-volume commodity lenses.
- Surface quality is the critical limiter; layer lines and scattering matter more than the print itself.
- Post-processing often decides success, especially for visible-light optics.
- Material choice must match the wavelength, transparency, and thermal or chemical demands of the application.
- Hybrid workflows such as printed molds, casting, or glass additive manufacturing can outperform direct printing.
- Medical and wearable optics are promising, but many of the most advanced ideas are still research-stage rather than mainstream production.
What a printed optic really is
I treat a 3D-printed lens as a family of manufacturing strategies, not a single process. Some optics are printed directly in resin, some are printed as masters and copied into a clearer material, and some use additive manufacturing to create glass or glass-like structures. That distinction matters because the print itself is only half the story; the surface finish, the optical material, and the amount of post-processing usually decide whether the part is a useful lens or just a good-looking prototype.

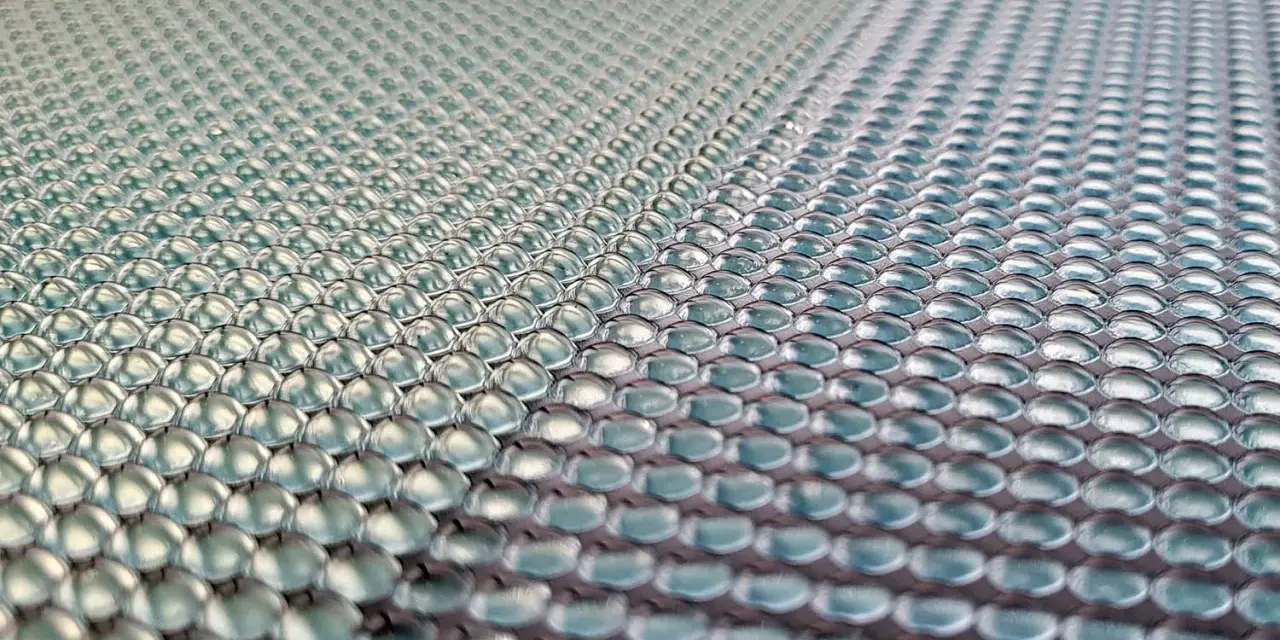

For the right projects, this flexibility is the point. Printed optics are strongest where geometry is hard, volumes are small, or customization matters more than tooling efficiency. That is why I see them showing up first in laboratory instruments, compact sensors, microlens arrays, and special-purpose imaging systems rather than in everyday mass-market eyewear. The lens can be printed, but the real value is in choosing the right manufacturing route for the optical job.
How the manufacturing route changes the optical result
The manufacturing route is what separates a part that merely resembles a lens from one that actually behaves like one. In practice, there are three common paths: direct printing of the optic, printing a mold and casting the final lens, and printing glass or hybrid optical structures. Each has a different balance of speed, clarity, and design freedom.
Direct printing on the final surface

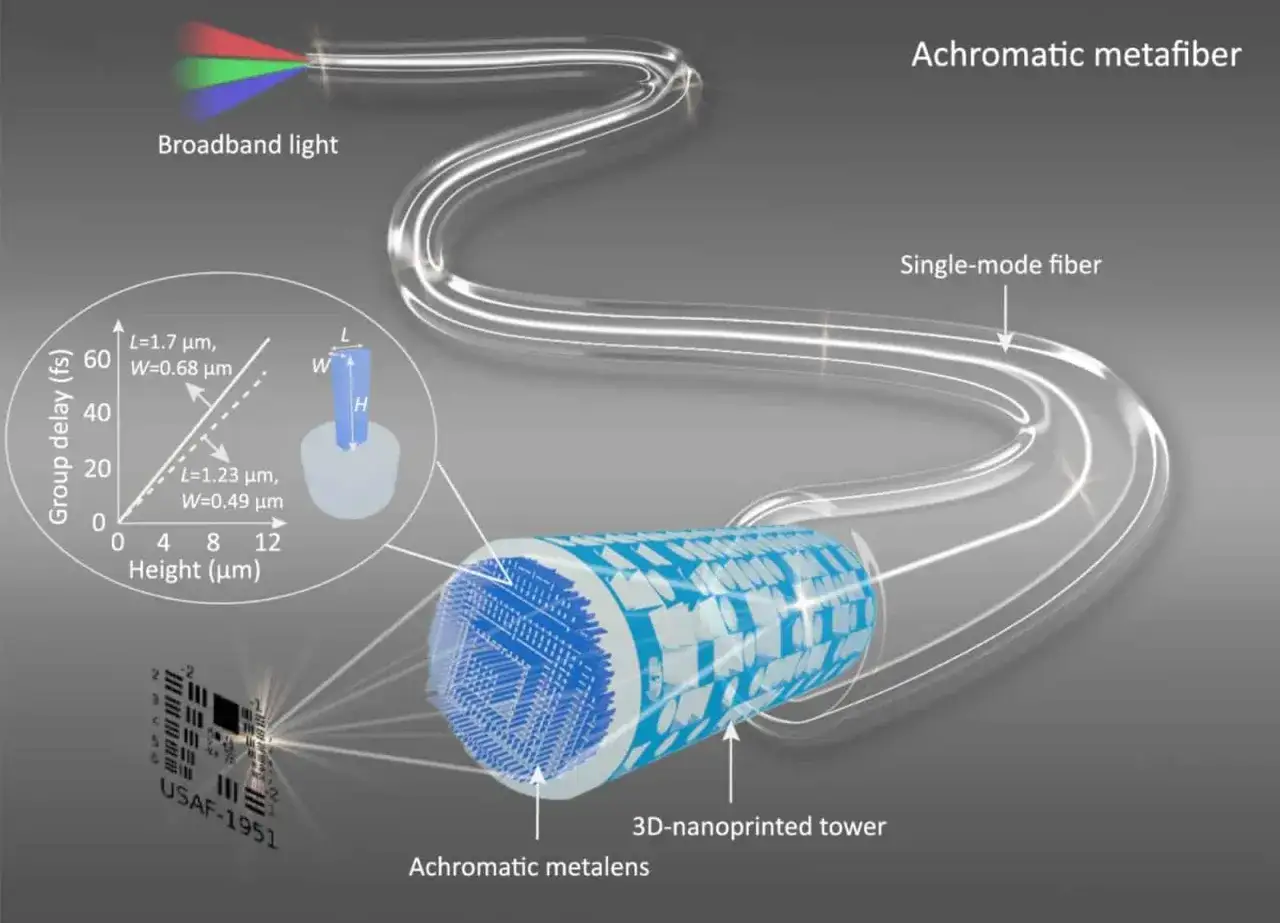

Direct printing is the most straightforward option when you need a fast iteration loop. Technologies such as SLA, DLP, and two-photon polymerization can produce lenses with complex freeform geometry, microstructures, or unusual curvature that would be awkward to machine by hand. The downside is that the as-printed surface usually needs help. Layer steps, pixelation, and small geometric errors can scatter light, so a raw print is rarely the end of the process if the optic has to handle visible light cleanly.
Printing a mold and casting the lens
This is the route I would expect many teams to prefer when they want optical performance without giving up design freedom. The printer makes a master or mold, and the final optic is cast in a clear resin or other optical material. A 2026 Optica report described a workflow that combined consumer-grade 3D printing, silicone molding, and UV-curable resin to create low-cost lenslets for super-resolution microscopy, with individual lenses costing less than $1. That is a good example of where additive manufacturing is most persuasive: not as a replacement for every optical process, but as a way to make precise, custom optics cheaply in small runs.
Read Also: Precision 3D Printing - Get Your Parts to Fit Right
Printing glass or hybrid optics
When the optical part needs better thermal stability, chemical resistance, or long-term durability, glass becomes attractive again. MIT Lincoln Laboratory has shown a low-temperature additive manufacturing process for glass that uses direct ink writing and only a 250°C heat treatment instead of the more typical 1,000°C-plus glass processing route. That is a major practical difference, because it opens the door to free-form optical lenses and other glass components without the full burden of traditional glassmaking. In other words, additive manufacturing is not limited to plastics; it can also change how glass optics are produced.
The short version is this: direct printing is fastest, mold-and-cast is often cleanest, and printed glass is the most specialized but also the most compelling when stability matters. Once you understand those routes, it becomes easier to see where the technology already makes sense in real projects.
Where the technology already earns its keep
The strongest use cases are the ones where custom geometry or miniaturization has more value than bulk production. In microscopy, lenslets and freeform optics can be tailored to a specific illumination pattern or imaging requirement. In the terahertz range, 3D-printed dielectric lenses and metalenses can be large, complex, and still comparatively affordable. In smart contact-lens research, additive methods are increasingly used to place functional features on curved surfaces without redesigning the entire lens manufacturing stack.- Microscopy and lab optics benefit from rapid customization. Lens arrays, illumination optics, and specialized holders can be produced quickly, then revised after testing. That matters because lab optics often change several times before the design stabilizes.
- Terahertz and infrared systems are a strong fit because the wavelength regime relaxes some of the extreme surface requirements seen in visible-light optics. Researchers have shown 3D-printed terahertz metalenses with broadband focusing and a numerical aperture of 0.555 across 0.2 to 0.9 THz, which is a serious signal that additive optics can do more than just prototype a shape.
- Wearable and contact-lens concepts are more experimental, but they are moving. Recent work has shown that functionalized hydrogel features can be printed onto commercial contact lenses with negligible optical losses, which is important because it suggests a path toward custom filters, monitoring features, and drug-delivery regions without changing the base lens geometry.
What ties these applications together is not the printer brand or the resin chemistry. It is the combination of small-volume production, unusual shapes, and a real payoff from customization. If the project can tolerate the limitations, printed optics can be a very efficient answer. If not, the weak spots become obvious quickly.
The quality bottlenecks that still decide success
This is the part I would not gloss over. The main barrier in optical printing is not geometric freedom; it is optical quality. Additive processes can leave layer steps, internal density variation, or tiny surface defects that scatter light. In one widely cited research example, the as-printed optical surfaces had roughness on the order of tens of microns, which is far too rough for serious optics until smoothing is applied. After post-processing, the roughness dropped to a few nanometers, which is much closer to what high-quality optical surfaces need.
- Surface roughness and scattering are the first problem. If the surface is not smooth enough, light does not focus cleanly. That is why a lens can look fine by eye and still perform poorly under a beam test.
- Shape fidelity matters just as much. Small deviations from the intended curvature can shift the focal length, add aberration, or ruin alignment in multi-element systems.
- Material transparency is not optional. The polymer or glass has to transmit the wavelength you care about, whether that is visible, near-infrared, or terahertz.
- Post-processing often turns a promising print into a real optic. Polishing, smoothing, UV curing, solvent wash, annealing, or casting into a better final material can all be part of the process.
- Biocompatibility and certification become critical for eyewear, medical, or implant-adjacent uses. A lens can be optically sound and still be unsuitable for a wearable product.
I think this is where many teams misread the technology. They assume the printer is the main variable, when the decisive variable is usually the finishing workflow. That leads naturally to the practical comparison most buyers or engineers need: when does printing beat conventional optical manufacturing, and when does it not?
How printed optics compare with molded and ground lenses
For most real projects, the question is not whether 3D printing is “better” in an abstract sense. It is whether it is better for your volume, wavelength, tolerance stack, and lead time. This table is the simplest way I know to frame that decision.
| Approach | Best for | Main strengths | Main limits |
|---|---|---|---|
| Direct 3D printing | Prototypes, microlenses, freeform optics, custom lab parts | Fast iteration, complex geometry, no hard tooling | Surface finish and transparency can limit visible-light performance |
| Printed mold plus casting | Small-batch optical parts and lens arrays | Better final surface quality, low tooling cost, repeatability | Extra process step, mold accuracy still matters |
| Ground or polished glass | High-end imaging and demanding visible-light optics | Excellent optical quality, mature supply chain | Higher cost, slower iteration, less design freedom |
| Injection-molded plastic | High-volume consumer optics | Low unit cost at scale, consistent repeatability | Tooling cost is high and design changes are expensive |
My rule of thumb is simple: if the design is still changing and the volume is low, additive or hybrid optics make sense. If the spec is frozen and the part needs to ship in large numbers, conventional molding or grinding usually wins. The smarter the team, the less they treat this as a binary choice.
How I would evaluate a project before investing
Before committing to a printed optic, I would work through a small set of questions in order. That keeps the discussion grounded in performance, not hype.
- What wavelength does the optic need to handle? Visible-light optics demand a much cleaner surface than many infrared or terahertz systems.
- Is the part a final lens or a master for casting? A printed master can be much easier to make well than a final optical surface.
- What is the acceptable roughness, alignment error, and focal tolerance? If those numbers are tight, the process window gets narrow quickly.
- How many parts do you actually need? Small runs benefit from printing far more than stable high-volume production does.
- What post-processing can your team support? Polishing, smoothing, curing, and inspection are not optional extras in serious optics.
- Are there safety, biocompatibility, or regulatory constraints? Those can be the real project blockers, especially for eyewear and wearables.
This is also where I would push back on optimistic timelines. A printed optic is only “easy” if the team already understands optical tolerances and finishing. Without that discipline, the printer just makes the failure faster. With it, additive manufacturing becomes a real design advantage rather than a novelty.
What I’d watch next in 2026
The most believable near-term progress is in hybrid workflows: print the geometry, cast the surface, or print the glass with a lower-temperature process and finish only what needs finishing. That path is more realistic than expecting one printer to replace every established optical process. I would also expect more work in custom microscopy optics, compact sensors, terahertz imaging, and functional layers on commercial contact lenses, because those are the places where customization pays for the extra process complexity.
If I were budgeting a project today, I would treat printed optics as a design tool first and a production tool second. That is not a weakness. It is exactly why the technology is useful: it lets you make optical parts that are hard to mold, expensive to grind, or simply too specialized for standard production lines. For the right application, that is the difference between a theoretical concept and a part you can actually build.
