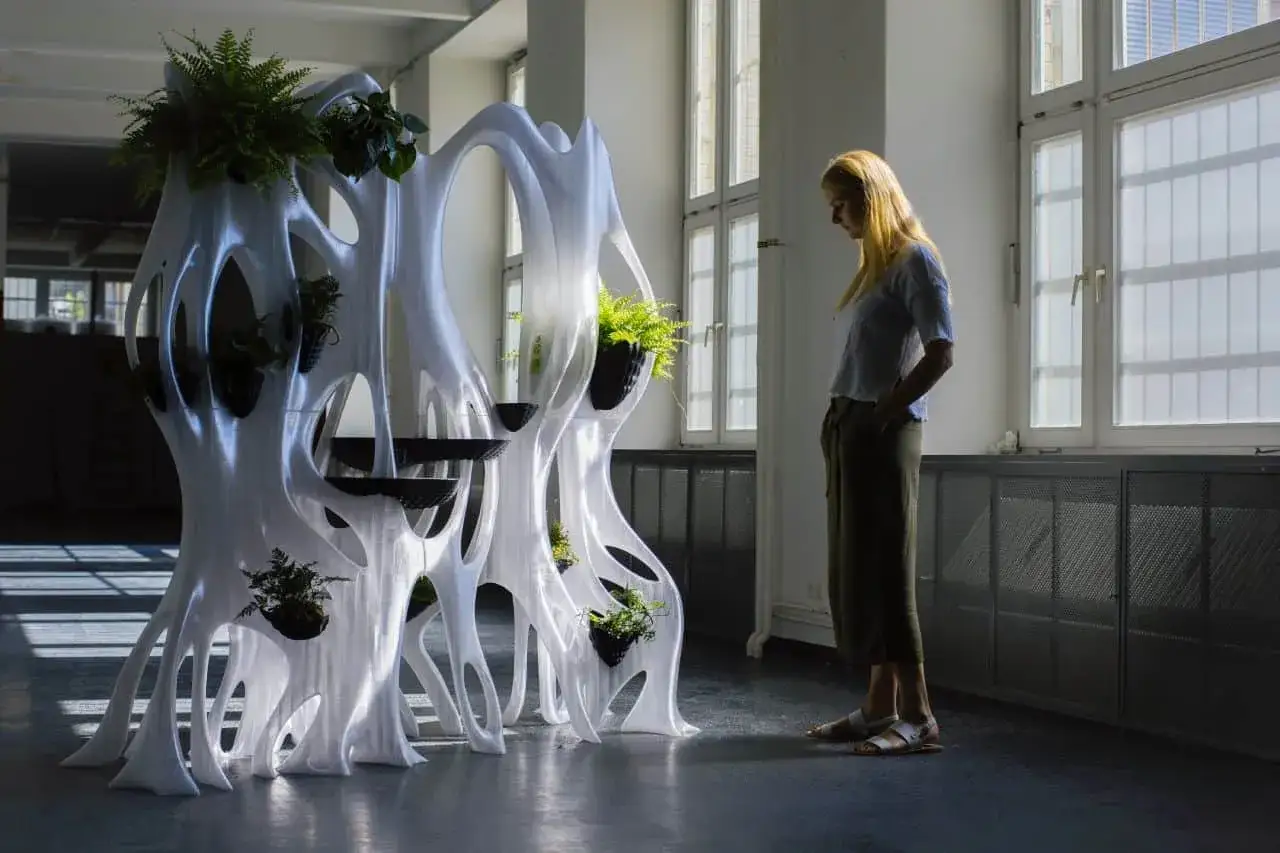

Product teams use algorithmic design tools to move faster from a rough brief to a shortlist of viable concepts. Generative design software is most useful when the team already knows the loads, envelope, material, and manufacturing route, because that is when the software can search broadly without drifting into fantasy shapes.
In this article I break down how the method works, where it fits in product design, why it is especially useful for plastic parts and structural components, and what to check before you commit to a platform. I also separate the practical gains from the hype, because the output is only as good as the constraints you define.
Key takeaways for product teams
- Generative tools explore many geometry options from a defined set of objectives, constraints, and manufacturing rules.
- The strongest results usually come from parts with clear loads, tight space limits, and measurable performance goals.
- For plastic product design, the method works best when you define wall thickness, draft, gate strategy, and long-term behavior early.
- It is not a replacement for CAD discipline or moldability checks; it is a fast way to narrow the concept space.
- The best platform is the one that fits your manufacturing process, simulation workflow, and export needs, not the one with the flashiest demo.
What the software is really doing in product design
At its core, the system is not inventing in a human sense. I think of it as a search engine for geometry: you define the goal, load cases, keep-out zones, material, and process limits, and the solver explores many alternatives that satisfy those rules. The best platforms then rank results by mass, stiffness, stress, displacement, and manufacturability, so you can compare options instead of guessing from a single sketch.
This is why the method works so well early in product development. It can expose layouts that a team would rarely sketch by hand, but it still depends on clear inputs. If the problem statement is vague, the results will be vague too, and that is where teams usually waste time. Once you understand that, the next question is how the workflow actually unfolds.
How the workflow moves from brief to manufacturable concept
The practical workflow is usually more structured than people expect. In a good run, the software may generate hundreds or even thousands of candidates, but only a small fraction deserve real engineering attention. I recommend treating the first pass as a filtering exercise, not a design finish line.
- Define the design space. Set the outer envelope, the no-go areas, and the interfaces that must stay fixed.
- Lock the performance targets. Load, stiffness, weight, thermal behavior, fatigue, and safety factor all belong here if they matter.
- Choose the manufacturing path. Additive, subtractive, casting, or molding will change what counts as a realistic shape.
- Run the search. Let the solver explore multiple topologies and sort them against the objectives you set.
- Filter for reality. Remove shapes that cannot be cleaned up, tooled, cooled, printed, or assembled with confidence.
- Rebuild the winner in CAD. The final concept still needs human detailing, tolerance control, and downstream validation.
The part most teams underestimate is step five. A shape can satisfy the math and still fail in the mold shop, on the printer bed, or during assembly. I have found that the best results come from teams that treat the software as a way to accelerate judgment, not replace it. That matters even more when the parts are made from plastics, because material behavior and tooling constraints can quietly dominate the outcome.
Where it adds the most value in plastic product development
In plastic product design, the method is strongest when you need structural efficiency inside a constrained envelope. It is less about producing a final cosmetic shell and more about discovering the internal architecture that makes the shell perform better. For many consumer and industrial products, that is where the real leverage sits.
Parts that benefit most
- Internal brackets and support ribs inside housings, where weight reduction matters more than visual symmetry.
- Functional inserts and frames that carry load while the outer plastic surfaces remain simple.
- Assembly fixtures and tooling aids, where speed and rigidity matter more than aesthetics.
- Lightweight prototype structures for additive manufacturing, especially when you want to validate load paths before tooling.
- Hybrid components that combine molded plastic with metal interfaces or fastener bosses.
Read Also: Best 3D CAD Software - Choose the Right Tool for You
Plastic-specific constraints that matter
For injection-molded parts, the solver will not automatically solve draft angles, wall thickness balance, gate location, sink risk, weld lines, or ejection problems unless you encode those realities into the brief. That is the trap. A geometry can look excellent in simulation and still be awkward or expensive to mold. When I work with plastic parts, I care as much about shrinkage, creep, and heat deflection temperature as I do about mass.
There is also a practical split between concept exploration and final moldability. Generative output can give you a strong internal structure or load-bearing skeleton, but the outer surfaces often need manual cleanup before a toolmaker would sign off on them. That is not a weakness; it is simply the boundary between algorithmic exploration and production engineering. From there, the comparison with other CAD methods becomes much easier.
How it compares with topology optimization and parametric CAD
These tools overlap, but they solve different problems. I use the comparison below when a team is deciding whether it needs more exploration, more control, or a faster way to refine a known architecture.
| Approach | Best for | Weak spot | Typical outcome |
|---|---|---|---|
| Generative design | Exploring many viable concepts under several constraints at once | Can produce shapes that still need manual cleanup or process adjustment | A shortlist of structurally promising, often non-obvious concepts |
| Topology optimization | Improving material distribution for a known load path | Usually narrower in concept variety | A refined internal structure or load-efficient form |
| Parametric CAD | Controlling dimensions, features, and revisions with precision | Does not explore radically different architectures by itself | Reliable iteration on a chosen design direction |
In practice, I treat generative exploration as the front end, topology optimization as a refinement tool, and parametric CAD as the discipline that turns the chosen idea into something buildable. A recent comparative study across plastic, aluminum, and iron parts found that generative approaches can perform especially well when constraints are complex, while topology optimization remains strong when the load case is simple and well defined. That is the real lesson: the method should match the problem, not the other way around.
What to compare before you buy or pilot a platform
When I evaluate generative design software, I care less about the prettiest demo and more about whether the tool fits the way the product will actually be made. A beautiful form is cheap; a manufacturable form is the hard part.
| What to compare | Why it matters | What I would look for |
|---|---|---|
| Constraint handling | Weak constraints produce attractive but unusable results | Keep-out zones, load cases, materials, and process rules that are easy to define |
| Manufacturing awareness | Plastic, metal, and additive workflows need different logic | Support for molding, machining, or printing constraints that match your shop reality |
| CAD round-trip | The concept still has to live inside a downstream design file | Clean export, editable geometry, and a stable transition back into your CAD stack |
| Simulation quality | The solver is only as trustworthy as the analysis behind it | Clear assumptions, reviewable load cases, and visible result ranking |
| Team workflow | Adoption fails when the tool sits outside the normal review process | Version control, collaboration, and enough transparency for engineering signoff |
If you are building products in the United States, I would also ask how the software handles local supplier realities. Contract manufacturers often want straightforward moldability, fast revisions, and files that can move cleanly between engineering and tooling. The platform that saves the most time is usually the one that reduces back-and-forth with the people who will actually build the part. Even with the right platform, though, the output can still mislead a team if the brief is weak.
Where teams get misled by the output
The biggest mistake is treating the first result as a finished answer. In my experience, that is how good tools get blamed for bad process. The software will happily optimize the wrong thing if you ask it to.
- Optimizing only for mass. A lighter part is not automatically a better part if stiffness, fatigue, or assembly stability suffer.
- Underdefining the load cases. A product rarely sees one perfect load in the real world; it sees drops, vibration, handling, thermal changes, and abuse.
- Ignoring plastic behavior. Creep, warpage, and shrinkage can erase the advantage of an elegant geometry.
- Expecting a finished aesthetic surface. Many outputs are structural concepts, not polished consumer-facing shells.
- Skipping process cleanup. The generated form still has to be drafted, thickened, trimmed, and documented.
This is also where hype tends to outrun reality. The software can broaden your options, but it cannot replace design intent, tooling knowledge, or judgment about tradeoffs. The teams that win with it are the ones that are disciplined before they are ambitious. That leads to the most practical question of all: what should you lock down before you run the first search?
What I would lock down before the first run
Before I ask the solver for ideas, I want a short brief that leaves very little room for ambiguity. That one habit removes more waste than any feature checklist.
- The primary load case and the secondary loads that can actually change the design.
- The fixed interfaces, such as fasteners, connectors, mounting points, and keep-out areas.
- The manufacturing route, because a molded part and a printed part should not be optimized the same way.
- The material assumption, including any creep, heat, or chemical exposure concerns.
- The success criteria, whether that is lower mass, better stiffness, fewer parts, or easier assembly.
- The review owner, so engineering, tooling, and product all sign off on the same direction.
Once those are fixed, the software can do what it is genuinely good at: widen the design space quickly, then help you close it down with evidence instead of instinct. For product design, especially in plastics, that is the real value. The strongest teams are not chasing the most dramatic geometry; they are using algorithmic exploration to make better manufacturing decisions earlier, when the cost of being wrong is still low.
