3D scanning for 3D printing works best when the scan becomes a design asset, not just a file you hope will print cleanly. In product design, that usually means capturing an existing object, repairing what is missing, and turning the result into a printable model that respects fit, surface finish, and material behavior. I’ll focus on the decisions that matter in practice: which capture method to use, how to clean the mesh, how to choose the right print process, and where the workflow usually breaks.
The main decisions that shape a good scan-to-print result
- Start with the end use: cosmetic prototype, fit check, or functional part. That choice drives the scanner, file cleanup, and print process.
- Raw scans are rarely printable as-is. Expect mesh repair, hole filling, alignment, scale verification, and often some CAD rebuilding.
- For tight-detail work, resin printing usually gives the cleanest result; for tough housings and complex internal geometry, powder-bed plastics often make more sense.
- Optical scanning struggles with shiny, black, and transparent plastics unless you prep the surface or control the lighting.
- The scan is only one source of error. Printer tolerance, post-processing, and part orientation can matter just as much.
Where scan-based modeling adds real value in product design
In product design, I reach for a scan when the real world already exists and CAD alone would waste time. That includes legacy parts that no longer have drawings, ergonomic surfaces that need to be preserved, replacement covers, enclosures that must fit around an existing assembly, and prototype parts that are easier to capture than rebuild from scratch.
The biggest advantage is not novelty. It is speed with context. A scan gives you the geometry that already works in the hand, in the machine, or in the assembly line, and that lets you move straight to improvement instead of reconstruction. The catch is simple: a scan captures form, not intent. If a part needs ribs, bosses, draft, or controlled wall thickness, I usually treat the scan as a reference and then rebuild those features in CAD.
That distinction matters most with plastics. A beautiful mesh can still be a poor manufacturing model if it ignores wall strength, snap-fit behavior, or print shrinkage. Once that is clear, the next question is which capture method gives you the right balance of detail, speed, and effort.
Choosing the right scanner for the part in front of you

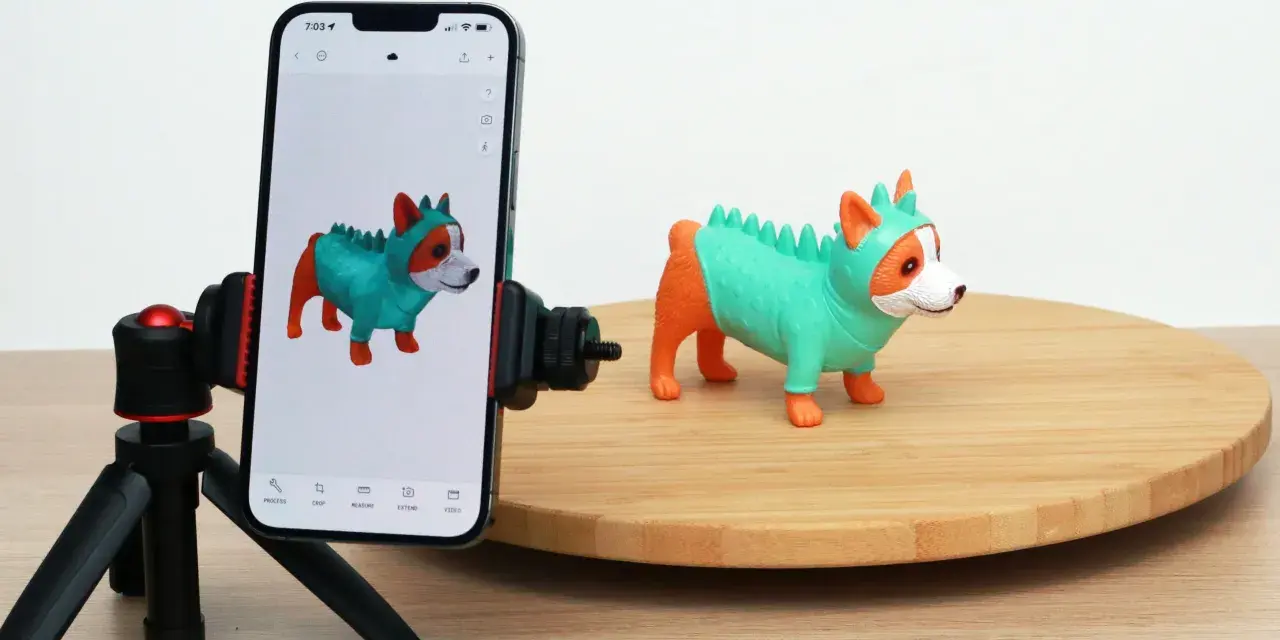

The scanner choice should follow the part, not the other way around. For product work, I usually compare three capture methods: structured light, laser scanning, and photogrammetry. They all produce a digital mesh, but they behave very differently with size, surface finish, and detail.
| Method | Best for | Strengths | Limitations |
|---|---|---|---|
| Structured light | Small to medium plastic parts, housings, consumer products, detail-rich prototypes | Good balance of speed and detail, strong for reverse engineering, widely used in design workflows | Can struggle with glossy, black, or transparent surfaces; ambient light matters |
| Laser scanning | Edges, deeper features, larger parts, some harder-to-read surfaces | Useful when feature definition matters and the object is less scan-friendly | Usually slower and more expensive; workflow can be less convenient for quick iteration |
| Photogrammetry | Large objects, appearance capture, rough dimensional references | Low hardware cost, flexible setup, good for visual context | Usually the weakest choice for tight dimensional work unless the setup is very controlled |
For plastics, surface finish is a practical issue, not a cosmetic one. Glossy ABS, clear polycarbonate, and dark textured parts can produce holes, noise, or weak edge data. A removable matte spray can help, but I only use it when the part allows extra prep and cleanup. If the scan must remain non-destructive, I rely more on lighting control, multiple passes, and careful alignment.
One rule I keep in mind is that the scanner needs to be better than the print requirement. If the printer cannot hold the part accurately, or if the scan is noisy enough to blur the edges that matter, the workflow stops paying back. Once the capture method is settled, the real work begins: turning the scan into something a slicer can trust.
Turning a scan into a printable model
A raw scan is usually a triangle mesh with noise, overlap, missing regions, and inconsistent scale. That is normal. The job is to turn that data into a clean model without sanding away the accuracy you paid for in the first place.
Clean the mesh before you simplify it
I start by removing floating fragments, closing obvious holes, and fixing inverted normals. Good scan software can automate some of that cleanup, but I still inspect the critical edges by hand. If a file is full of tiny spikes or dense noise around the seams, the slicer will not improve it. It will just make the problem harder to see.
Preserve the dimensions that matter
Decimation is useful, but overdoing it destroys edge fidelity. I reduce triangle count only after I know which surfaces are cosmetic and which surfaces control fit. If the part has mating lips, screw bosses, snap features, or sealing edges, those regions stay dense. Flat, non-critical areas can usually be simplified much more aggressively.
Decide early whether the mesh is the final model
For organic shapes, a cleaned mesh may be enough. For mechanical parts, I usually rebuild at least part of the model in CAD and use the scan as a reference. That gives me clean datum planes, editable holes, and tolerances I can control. It also makes later revisions far easier than trying to sculpt a perfect printable mesh forever.
Read Also: Snap Fit Joints - Design for Durability & Success
Export in the format your print pipeline actually likes
STL remains the common default because nearly every slicer accepts it. OBJ is useful when color or material data matters, and 3MF is often the better modern choice when you want richer metadata and a cleaner handoff. Before exporting, I verify scale against a known dimension. That one check catches more expensive mistakes than any mesh filter I know.
In short, the scan should be treated as a starting point, not a finished part. Once the geometry is clean, the next decision is which printing process can preserve it best.
Picking a print process that matches the geometry
Printer choice matters more than many teams expect. According to Formlabs, SLA and DLP can hold roughly ±0.15% on 1 to 30 mm features, ±0.2% on 31 to 80 mm features, and ±0.3% on 81 to 150 mm features, with a lower limit near ±0.02 mm. FDM is typically closer to ±0.5% with a 0.5 mm floor, while SLS and MJF sit around ±0.5% or 0.3 mm, whichever is larger. Those numbers do not guarantee the final part, but they explain why some scan-derived models print beautifully in resin and feel vague in filament.
| Process | How it behaves with scan-derived parts | Best use case | Main trade-off |
|---|---|---|---|
| SLA / DLP | Excellent detail and fine edge definition; strong for tight-fit prototypes | Cosmetic parts, small housings, clips, precise fit checks | Supports, washing, and post-curing add steps, and resin behavior can change dimensions |
| SLS / MJF | Good dimensional stability and strong functional parts, especially with complex geometry | Brackets, enclosures, internal channels, snap-fit parts | Surface finish is rougher, and the process is usually more expensive than basic FDM |
| FDM | Fast and accessible, but less reliable for sharp detail and tight tolerance parts | Large concept models, early fit studies, rough validation | Warping, layer texture, and lower dimensional control can hide issues in the scan |
Formlabs also notes that post-curing resin parts can shrink, which is why compensation in prep software matters. I mention that because scan-based work often fails at the last step, not the first. A part can be captured accurately and still come out wrong if orientation, support strategy, or post-processing is ignored.
My practical rule is simple: use the scan to define geometry, then use the printer to protect the tolerance you need. That means resin for sharp detail, powder-bed plastics for functional complexity, and FDM only when the part can tolerate a looser result. Once that decision is made, you still need to avoid the mistakes that quietly distort the whole workflow.
The mistakes that quietly ruin an otherwise good scan
Most bad results come from a few predictable failures, not from the scanner itself. When I troubleshoot a scan-to-print job, these are the issues I look for first.
- Scanning a glossy, black, or transparent plastic part without surface prep. The fix is usually matte spray, improved lighting, or a different capture angle.
- Ignoring hidden geometry. Undercuts, deep recesses, and the inside of shells often need multiple passes or a second capture position.
- Trusting the mesh too much. If a part is supposed to fit with another component, I always verify the critical dimensions with calipers or a reference model.
- Over-simplifying the file. A lighter mesh is good; a blurred edge on a mating face is not.
- Using the scan as the final CAD model when the part actually needs real design edits such as ribbing, draft, or controlled wall thickness.
- Forgetting printer behavior. Support marks, shrinkage, orientation, and warping can change the part even if the scan is accurate.
There is also a subtle mistake I see often in product teams: they scan the part, print one copy, and assume the job is done. That works only for loose concept validation. If the part has to assemble with other plastics, hardware, or electronics, one printed sample is usually not enough. A small tolerance test saves more time than a second full reprint.
Once those risks are controlled, scan-based modeling becomes much more useful in real plastic product programs than people expect.
Where scan-based design pays off most in plastics projects
I get the best return from scan-based workflows when the geometry is already physical and the product still needs to evolve. In plastic design, that often looks like one of the following:
- Replacement trims, covers, and brackets where the original part is unavailable or damaged.
- Custom enclosures that need to wrap around existing boards, connectors, clips, or cable paths.
- Ergonomic surfaces such as grips, handles, and hand-contact areas that are easier to refine from a real object than from a sketch.
- Assembly fixtures and jigs that must fit current equipment instead of an idealized CAD environment.
- Prototype parts for consumer products where surface form matters as much as function.
The most effective pattern is usually hybrid: scan the real object, rebuild the functional logic in CAD, and print a test part in the process that matches the tolerance target. That is much more reliable than trying to preserve every triangle from the scan.
For product design teams, this approach also shortens iteration. You can measure the existing part, change only the surfaces that need change, and keep the rest anchored to reality. That is where scan-based workflows stop feeling like a workaround and start behaving like a proper design tool.
The checks I would not skip before sending a scan to print
Before I release a scan-derived part, I run a short checklist. It is not glamorous, but it prevents most of the expensive mistakes.
- Confirm the part’s purpose: visual prototype, fit check, or functional use.
- Verify one or more known dimensions against calipers or an original drawing.
- Inspect the mesh for holes, noise, flipped faces, and over-decimation near critical features.
- Decide whether the model should remain a mesh or be rebuilt in CAD.
- Match the print process to the tolerance requirement, not just to what is available in the shop.
- Plan for post-processing, especially if resin curing, sanding, or support removal could affect the fit.
If you keep those steps tight, the workflow is dependable: scan the real part, clean the data, rebuild what needs intent, and print in the process that respects the geometry. That is the version of scan-based product development that consistently saves time instead of spending it.
