HDPE plastic is one of the most useful materials in packaging, piping, and durable goods because it combines stiffness, impact resistance, chemical resistance, and low cost. In this article I break down what high-density polyethylene actually is, which properties matter in design and fabrication, where it performs well, and where it falls short. I also cover selection, processing, and recycling in practical terms, because those are the details that decide whether a part works in the real world.
Key facts to keep in mind before you specify HDPE
- Density and crystallinity drive performance; HDPE is more tightly packed than LDPE, so it is usually stiffer and more dimensionally stable.
- Typical commercial grades often sit around 0.941-0.955 g/cm³, with melting temperatures commonly around 129-135°C.
- ESCR matters a lot if the part will see detergents, fuels, cleaners, or other stress-cracking chemicals.
- Generic HDPE is not enough; melt index, additives, color, and compliance status can change the result dramatically.
- Outdoor parts need help; UV stabilization and design validation matter if the part lives in sunlight.
- Recycling is real, but local acceptance is variable; the resin code helps, but it does not guarantee collection in every U.S. program.
What makes high-density polyethylene different
HDPE is a semi-crystalline thermoplastic, meaning part of the polymer structure is ordered while part remains amorphous. The important difference is that its chains have fewer side branches than LDPE, so they pack more closely together. That tighter packing raises crystallinity, which in turn gives the resin its familiar mix of stiffness, opacity, and dimensional stability.
In practice, I think of it as the polyolefin you choose when a part needs to hold shape without becoming brittle. The trade-off is equally important: you give up some flexibility and clarity, and you need to respect shrinkage and heat limits during design. That balance is exactly why HDPE sits in so many everyday products, from bottles to pipe, and it leads directly into the properties that matter most.
The properties that matter in real designs
The numbers that matter are the ones that tell me how a part will behave after molding, loading, and aging. For many commercial grades, density sits around 0.941-0.955 g/cm³, melting temperature often lands around 129-135°C, and Vicat softening commonly falls near 126-127°C. Vicat softening point is the temperature where a standardized needle begins to indent the material under load, so it is a useful warning sign long before full melt.
| Property | Typical HDPE behavior | What it means in design |
|---|---|---|
| Density | About 0.941-0.955 g/cm³ for many commercial grades | Higher density usually means more stiffness and better dimensional stability. |
| Melting temperature | Often around 129-135°C | Useful for processing, but not a license for high-heat service or hot-fill without validation. |
| Vicat softening point | Commonly around 126-127°C | The part begins to indent under load before it fully melts, so heat margin is limited. |
| ESCR | Often one of the strongest points of the resin family | Important for detergents, chemicals, and parts held under stress for long periods. |
| Impact resistance | Good to excellent, especially in the right grade | Helps containers, crates, and housings survive shipping and handling. |
When I compare resins, I also keep density ranges in mind. HDPE typically sits around 0.941-0.955 g/cm³, LDPE around 0.915-0.925 g/cm³, and PP around 0.890-0.915 g/cm³. That is a quick reminder that HDPE is the stiffer polyethylene, LDPE is the softer and more flexible one, and PP lives in a different part of the design space. It also explains why HDPE is rarely the right choice when you need film-like softness or a very compliant seal layer. Once those property differences are clear, the next question is where the resin actually earns its keep.
Where HDPE earns its keep in real products
I see HDPE at its best in parts that get squeezed, dropped, stacked, or exposed to chemicals. In U.S. packaging, that includes milk jugs, detergent bottles, caps, and closures; in industrial work, it expands into drums, pails, fuel and chemical containers, crates, pallets, drainage pipe, and large tanks. Dow's HDPE portfolio reflects that same breadth, because the resin family can be tuned for flexible packaging, rigid packaging, durable goods, and pipe.

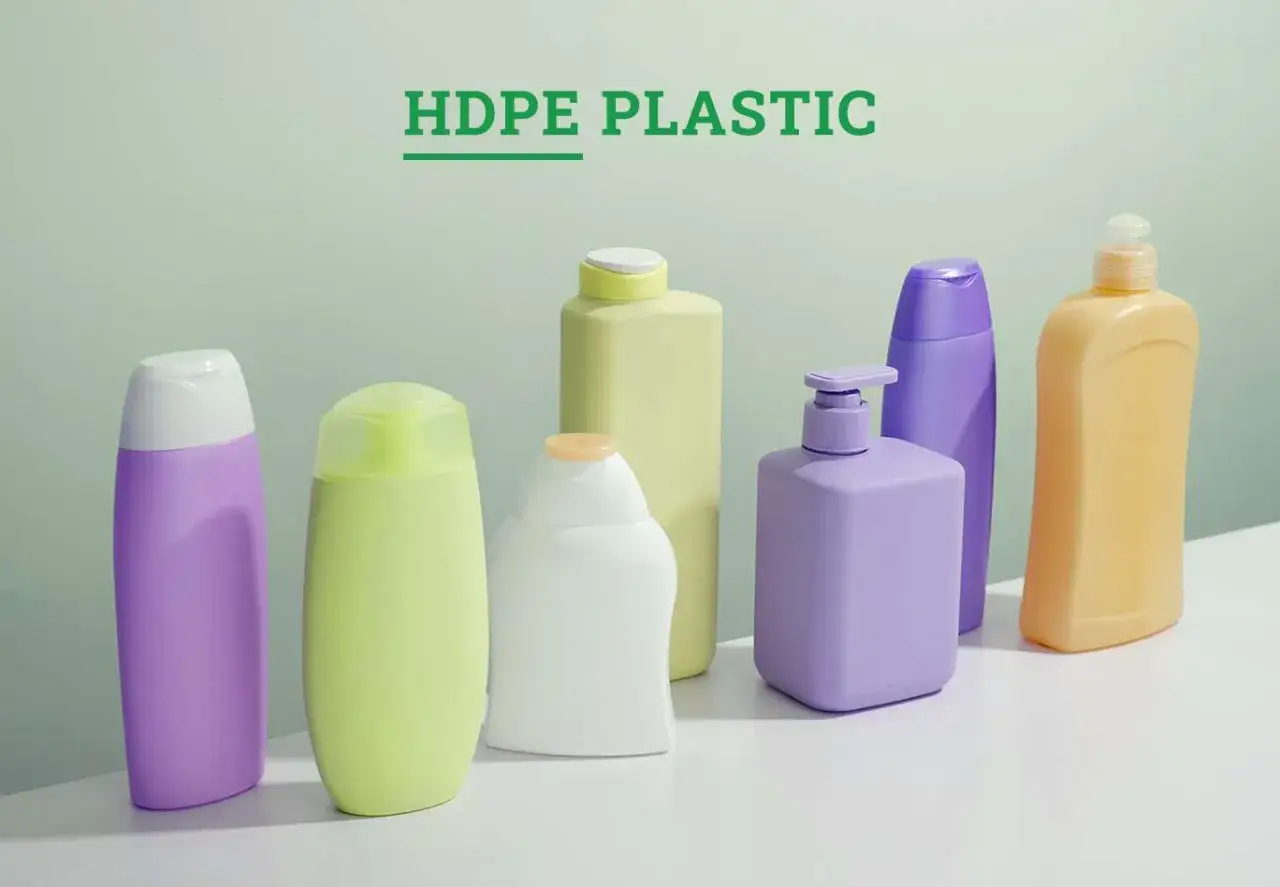

Rigid packaging
For bottles and closures, I care most about ESCR, stiffness, and squeeze recovery. The part must hold shape on the shelf, survive cap torque, and resist cracking when the contents are aggressive. That is why bottle-grade HDPE is not interchangeable with a pipe grade, even though both carry the same family name.

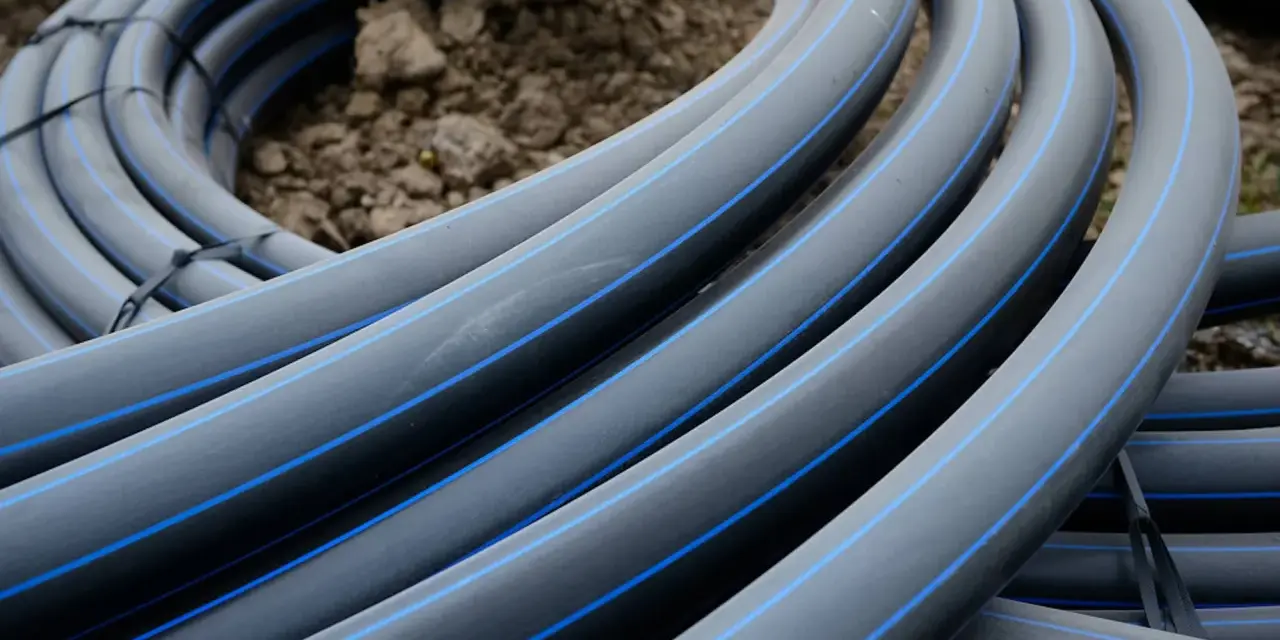

Pipes and tanks
Pipe-grade resins are tuned for slow crack growth and rapid crack propagation resistance, because failure mode matters more than cosmetics. For tanks and large hollow parts, wall thickness uniformity and long-term creep resistance become just as important as raw impact strength.
Read Also: Chemical Resistant Plastics - Choose Right, Avoid Failure
Durable goods
Crates, pallets, toys, bins, and housewares benefit from a different strength profile: repeated impact, handling, and load cycling. Here the resin choice often comes down to whether the part needs to be stiff, tough, or a little of both. That is also why the label alone is never enough, and the next step is choosing the right grade rather than just choosing the resin family.
How to choose the right grade instead of just choosing HDPE
I would never specify HDPE by name alone on a drawing. I want density, melt index, additive package, color, process method, and any regulatory requirement written down, because those details are what separate a workable part from a part that only looked right on paper.
- Low melt index works well for large blow-molded parts and thick sections, because it supports melt strength and helps the parison hold shape.
- Higher melt flow helps with easier filling in thin-wall injection molding, where flow matters more than maximum stiffness.
- Higher density usually points to more stiffness and better dimensional stability.
- Strong ESCR is important when the part will touch cleaners, fuels, detergents, or other stress-cracking chemicals.
- UV stabilization matters for outdoor parts, because unprotected resin can embrittle over time.
- Grade-specific compliance is non-negotiable for food contact, drinking-water, or other regulated uses.
If I need recycled content, I ask for documentation, odor and color expectations, and whether the application can tolerate more variation. That step is usually cheaper than discovering a mismatch after tooling is cut, and it leads naturally into how the material is actually processed.
Processing and fabrication tips that save time on the shop floor
HDPE is easy to process in the sense that it runs on familiar equipment, but the part still needs discipline. Many blow-molding grades process on conventional machines around 150-190°C, and the exact window shifts with melt index, part size, and geometry. The biggest mistakes are usually boring ones: uneven wall thickness, poor venting, too much heat history, or a mold design that ignores shrinkage.
- Expect shrinkage. HDPE is semi-crystalline, so it shrinks more than amorphous plastics. I build that into the mold instead of assuming nominal dimensions will hold on the first trial.
- Control cooling. Uneven cooling leads to warp, sink, and internal stress.
- Watch adhesion. HDPE has low surface energy, which means many adhesives do not wet or bond it well unless the surface is treated or the joint is mechanically supported.
- Do not overpromise heat service. If the part sits near hot liquids, motors, or sunlight, test the real condition instead of relying on the material family alone.
- Use the right joining method. Welding, fasteners, or prepared surfaces often outperform a generic adhesive callout.
Those are the details that decide whether a resin becomes a reliable production part or just a lab sample that behaved nicely for a day. The last major piece is end-of-life, because material choice does not stop when the part leaves the mold.
Recycling, food contact, and sustainability realities
HDPE has a stronger recycling story than many commodity plastics, but only if the stream is clean. EPA's material-specific data shows a 29.3% recycling rate for HDPE natural bottles, while the overall plastics recycling rate is much lower, so this resin clearly has recovery value. The catch is that the recycling symbol only identifies the resin family; it does not guarantee local collection, and it definitely does not guarantee that a dirty or mixed container will make it through the system.
- Empty and rinse containers if your local program accepts them.
- Keep labels, closures, and liners in mind, because they can change sortability.
- Do not assume recycled HDPE is interchangeable with virgin resin in every part.
- For food contact, verify the exact grade and its authorization rather than relying on the resin family name.
That is the practical version of sustainability: not just whether a material can be recycled, but whether it can be collected, sorted, and reused in a way that still makes sense for the product. Which brings me to the last check I make before I sign off a spec.
What I check before I sign off an HDPE part
Before I approve the material, I ask five simple questions: does the part need stiffness, impact resistance, chemical resistance, UV resistance, or food-contact compliance; which of those matters most; what process will make the part; how much shrinkage and creep can the design tolerate; and can the chosen grade actually be supplied with the right color or recycled-content package?
- If the answer is mostly about rigidity and chemistry, HDPE is often a strong candidate.
- If the answer is about clarity or high-heat service, I usually look elsewhere.
- If the part is outdoor or load-bearing, I want a stabilized grade and a validated design, not a generic resin name.
The material is practical, versatile, and still easy to underestimate. Once you start specifying the grade instead of just the family, HDPE becomes much easier to use well.
