What matters most when plastic is part of the design
- Plastic is chosen for a mix of weight, cost, chemical resistance, electrical insulation, and manufacturability, not one property alone.
- The same resin can behave very differently after injection molding, extrusion, thermoforming, or machining.
- PE, PP, PVC, PET, ABS, PC, nylon, and acetal cover many everyday use cases, but each has a clear performance ceiling.
- Thermoplastics suit repeatable production and recycling; thermosets matter when heat and long-term stability are more important than remeltability.
- Material choice should start with failure mode, then process, then cost, not the other way around.
Why plastics fit so many different jobs

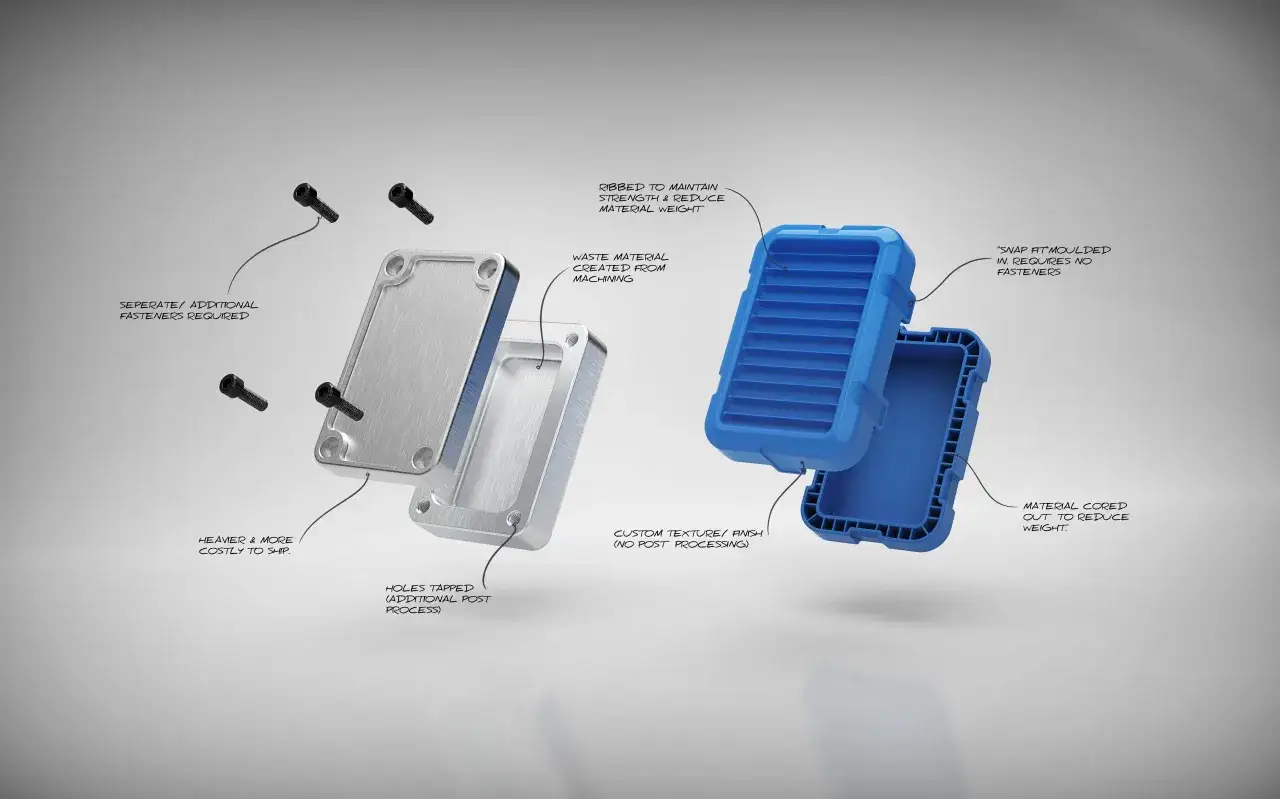

What makes plastics useful is not a single superpower. It is the combination of low density, easy forming, corrosion resistance, and the ability to build features directly into the part. A bracket, cap, lens, housing, or tube can be made with ribs, snaps, living hinges, threads, or translucent walls in a way that would be far more expensive in metal or glass.
That is why plastics show up everywhere from packaging to medical devices to electrical enclosures. When I compare a plastic option against aluminum, glass, or stainless steel, I am usually asking whether the part can do the job with fewer steps, less weight, and less post-processing. That advantage only holds when the resin choice matches the actual environment, which is where material properties come in next.
The properties that actually drive selection
When I specify a resin, I look at performance in use, not a brochure claim. A part can be strong in tension and still fail because it creeps under load, turns brittle in sunlight, or loses tolerance after absorbing moisture. The shortlist gets much easier once the dominant property is clear.
| Property | Why it matters | What I watch for |
|---|---|---|
| Tensile strength and stiffness | Supports load and keeps the part from bending too much | Wall thickness, ribs, and reinforcement when the part spans a gap or carries weight |
| Impact resistance | Helps the part survive drops, shock, and repeated abuse | Protective covers, lenses, guards, and housings that are handled often |
| Heat resistance | Keeps the part from softening, warping, or losing tolerance | Service temperature, heat deflection, and long-term creep near warm components |
| Chemical resistance | Prevents swelling, cracking, or surface damage from cleaners, fuels, oils, and solvents | Stress cracking is often the real failure mode, not complete dissolution |
| Creep resistance | Prevents slow deformation under constant load | Clips, shelves, fasteners, and seals that must stay dimensionally stable for years |
| Optical and electrical behavior | Supports clarity or insulation | Lenses, light guides, windows, and enclosures that must be electrically safe |
| Moisture and UV stability | Preserves size, color, and mechanical performance outdoors or in humid spaces | Outdoor parts usually need stabilizers, coatings, or a different resin family |
Thermoplastics and thermosets are not interchangeable
Most everyday plastic parts are thermoplastics, which soften when heated and can be reshaped. That makes them practical for injection molding, extrusion, blow molding, thermoforming, and recycling streams that depend on remelting. Thermosets behave differently. They cure into a crosslinked structure and do not remelt, which makes them useful when heat stability, chemical resistance, or dimensional permanence matter more than reworkability.
| Type | Behavior under heat | Typical processing | Best fit | Main limitation |
|---|---|---|---|---|
| Thermoplastic | Softens when heated and can be remolded | Injection molding, extrusion, blow molding, thermoforming, machining | High-volume parts, repairable or recyclable designs, complex shapes | Some grades lose stiffness or creep under sustained heat and load |
| Thermoset | Cures into a fixed structure and will not remelt | Compression molding, casting, lamination, potting, composite layup | Electrical encapsulation, composite parts, high-heat or chemically demanding uses | Harder to recycle, harder to rework, and fixed after cure |
For consumer packaging, housings, and many industrial parts, thermoplastics dominate because they are fast to process and easier to scale. Thermosets still matter in the right places, especially when the design needs permanent shape stability rather than remeltability. With that split in mind, the next question is which specific plastics actually get specified most often.
Common plastics and the jobs they do best
I rarely choose a plastic by name first. I choose a requirement, then I narrow to the resin family that satisfies it with the least compromise. The table below is the practical shorthand I use most often.
| Material | What it is good at | Typical applications | Practical caveat |
|---|---|---|---|
| PE (polyethylene) | Tough, low cost, chemically resistant, easy to process | Films, bottles, tanks, pipe, crates, liners | Usually low stiffness and limited heat resistance, often around 70 to 80°C for common grades |
| PP (polypropylene) | Lightweight, fatigue resistant, good chemical resistance, strong living-hinge behavior | Caps, closures, automotive trim, labware, packaging | UV and heat limits matter, with many grades used around 90 to 110°C |
| PVC (polyvinyl chloride) | Can be rigid or flexible, good weatherability, useful flame behavior | Pipe, cable insulation, profiles, flooring, tubing | Temperature ceiling is modest, often around 60 to 75°C depending on formulation |
| PET (polyethylene terephthalate) | Clear, strong, dimensionally stable, good barrier performance | Beverage bottles, trays, fibers, thermoformed packaging | Processing control matters, and service range varies widely, roughly 80 to 120°C by grade and crystallinity |
| ABS | Good impact resistance, easy molding, attractive surface finish | Housings, dashboards, consumer products, prototypes | Needs protection from UV and weathering, often around 80 to 100°C in service |
| PC (polycarbonate) | High impact strength, transparency, useful heat resistance | Safety glazing, lenses, shields, electrical enclosures | Scratch resistance and stress cracking need attention, with many grades used around 120°C |
| Nylon (PA) | Wear resistance, toughness, engineering strength | Gears, bushings, clips, under-hood parts | Absorbs moisture, which can change dimensions and mechanical behavior, often around 120 to 150°C when dry |
| Acetal (POM) | Low friction, dimensional stability, precision movement | Gears, valves, latches, bearings, fasteners | Less forgiving against strong acids and oxidizers, typically around 100°C |
Those ranges are broad design references, not guarantees. I still verify the exact grade before I commit to a design, especially for food-contact, medical, or flame-rated parts. Once the material family is in view, the process used to make the part can improve it or ruin it.
How processing changes what the plastic can do
Plastic selection is only half the story. The same resin can perform very differently depending on whether it is injection molded, extruded, thermoformed, blown, machined, or printed. I have seen a good material fail simply because the process introduced weld lines, uneven wall thickness, or internal stress that the design did not account for.
| Process | Best for | What it changes |
|---|---|---|
| Injection molding | Complex, repeatable parts at medium to high volume | Fast cycles, high detail, but weld lines, shrinkage, and gate location matter |
| Extrusion | Continuous shapes such as pipe, trim, and tubing | Uniform cross-sections with efficient material use, but limited geometry |
| Blow molding | Hollow parts such as bottles, reservoirs, and tanks | Lightweight cavities, but wall distribution and top-load performance need attention |
| Thermoforming | Large panels, trays, and shells | Lower tooling cost, but thickness variation is harder to control |
| Machining and additive manufacturing | Prototypes, low volumes, or custom geometry | Good for iteration, but higher unit cost, material waste, or anisotropy can be issues |
If a part needs crisp details and thousands of identical copies, injection molding usually wins. If it needs a long, constant profile, extrusion is the cleaner fit. That process-level thinking is why the same resin can look ideal on a spec sheet and still be wrong for the product.
Where plastics earn their keep in U.S. products
In U.S. product development, plastics earn their place when they reduce weight, simplify geometry, resist corrosion, or cut assembly steps. The strongest cases are usually not flashy. They are practical.
- Packaging uses PET bottles, PP caps, PE films, and multilayer structures because they are light, formable, and efficient to ship.
- Medical and laboratory products often rely on PP labware, PVC tubing, and PC shields because clarity, cleanability, and sterilization compatibility matter.
- Automotive and transportation use PP interior trim, nylon connectors, and PC lenses to reduce weight and support complex shapes.
- Electrical and electronics depend on ABS and PC housings, PBT or nylon connectors, and PVC cable jackets because insulation and flame performance are essential.
- Construction and infrastructure use PVC pipe, PE liners, and acrylic or polycarbonate glazing where corrosion and weathering are bigger risks than impact alone.
- Consumer and industrial goods use molded housings, clips, handles, gears, and covers because plastics combine shape freedom with predictable cost.
The pattern is consistent: plastic becomes the right choice when performance is not just about strength, but about weight, assembly, durability, and production economics at the same time. That leads to the most practical part of the conversation, which is how I choose a resin without overspending on capability the part does not need.
How I choose a resin without overbuying performance
My shortest useful checklist is simple. I start with the part’s environment, not the resin family. Then I work through geometry, load, process, compliance, and cost in that order. If those inputs are vague, the material decision will be vague too.
- Define the service environment. I want temperature, humidity, UV exposure, chemicals, and cleaning methods in writing before I compare materials.
- Rank the failure modes. A clip that must not snap needs different behavior than a cover that must not warp or a lens that must not scratch.
- Choose the process before the grade. Injection molding, extrusion, thermoforming, or machining changes the geometry you can afford and the tolerances you can hold.
- Check compliance early. Food-contact, medical, and electrical parts are grade-specific, and the wrong assumption can kill a design late.
- Validate with prototypes. I want real samples in the real environment, not only nominal data-sheet numbers.
- Factor supply and cost stability. A perfect resin that is difficult to source or too expensive at scale is not a finished solution.
When a plastic design passes those six checks, the odds of a clean launch rise sharply. The next problem is knowing what usually goes wrong, because plastic failures are often predictable long before they appear in production.
The failure modes I check before tooling
Most plastic failures are not mysterious. They usually come from one of a handful of missed assumptions, and once I know the pattern, the fix is often straightforward.
| Failure mode | What it looks like | How I reduce it |
|---|---|---|
| Creep | Clips sag, shelves droop, fasteners loosen | Lower the stress, add ribs, shorten spans, or move to a stiffer grade |
| Stress cracking | Crazing or sudden cracks near solvents or sharp corners | Check chemical compatibility, soften geometry, and avoid aggressive cleaners |
| UV aging | Color shift, chalking, or embrittlement outdoors | Use outdoor grades, stabilizers, pigments, or coatings |
| Moisture absorption | Size drift, softer feel, or loss of precision | Dry the resin correctly and design for the conditioned size, especially with nylon |
| Wear and scratching | Cloudy lenses, noisy gears, scuffed surfaces | Choose a harder grade, add surface protection, or redesign the contact pair |
| Heat distortion | Warping, loosening, or loss of fit near warm components | Verify service temperature, not just melting point, and keep stress levels low |
If a part only works when it is new, dry, and sheltered, it is not ready. Before tooling, I want the load case, temperature range, chemical exposure, and end-of-life plan written down in one place. When those four points are clear, the material choice is usually defensible, and when they are fuzzy, the safest move is to slow down and test one more time.
