Plastic selection becomes much easier once you stop treating every resin as interchangeable. The broad answer to the types of plastic question is that the material family matters less than how it behaves under heat, load, chemicals, and fabrication. In this article I break down the main classifications, the common resin groups you see in the United States, and the properties that actually matter when a plastic has to perform in the real world.
Key points to keep in mind when comparing plastic families
- Plastics are most useful to classify by heat behavior first, then by performance grade and application.
- The familiar resin codes 1 to 7 identify the plastic resin, not whether a product is automatically recyclable everywhere.
- For design work, stiffness, impact resistance, heat resistance, chemical resistance, creep, and clarity usually matter more than the name on the part.
- Thermoplastics dominate injection molding, extrusion, thermoforming, and many 3D printing workflows because they can be reshaped with heat.
- Recycling in the U.S. is still uneven, so local collection rules matter more than the symbol printed on the package.
The most useful way to classify plastics
When I evaluate a plastic for a product or fabrication job, I start with behavior, not brand language. The cleanest split is how the polymer responds to heat, because that determines whether it can be remelted, whether it cures permanently, and how it will behave during manufacturing.
Thermoplastics soften and reshape with heat
Thermoplastics can be heated, formed, cooled, and often reheated again. That makes them the workhorse materials for injection molding, extrusion, thermoforming, and many machining and 3D printing workflows. They are usually the easiest plastics to recycle mechanically, although real-world recycling still depends on collection and sorting systems.
Thermosets cure once and stay set
Thermosets harden through a curing reaction, which creates a crosslinked structure that does not melt again. That structure gives them strong heat resistance and good dimensional stability, but it also means you cannot simply remelt and reshape them. I tend to think of thermosets as the choice for parts that need to hold form under demanding service conditions rather than be reprocessed later.
Elastomers are the flexible side of the family
Elastomers behave more like rubber than rigid plastic. They stretch, recover, and absorb vibration, which is why they show up in seals, gaskets, grips, and soft-touch components. A useful nuance is that some elastomers are thermoplastic elastomers, so they combine rubber-like flexibility with melt processing.
Read Also: PVC Pipe Types - Choose the Right One Every Time
Performance grades matter as much as polymer class
Beyond the heat-based split, I also group plastics by performance. Commodity plastics like PE, PP, PVC, and PS are high-volume and cost-efficient. Engineering plastics like ABS, PC, nylon, acetal, and acrylic give you better mechanical or thermal performance. High-performance plastics such as PEEK, PPS, and PEI are used when heat, chemicals, or load demand much more than an everyday resin can provide. That hierarchy is a practical shortcut, and it leads naturally into the resin codes people see on packaging.

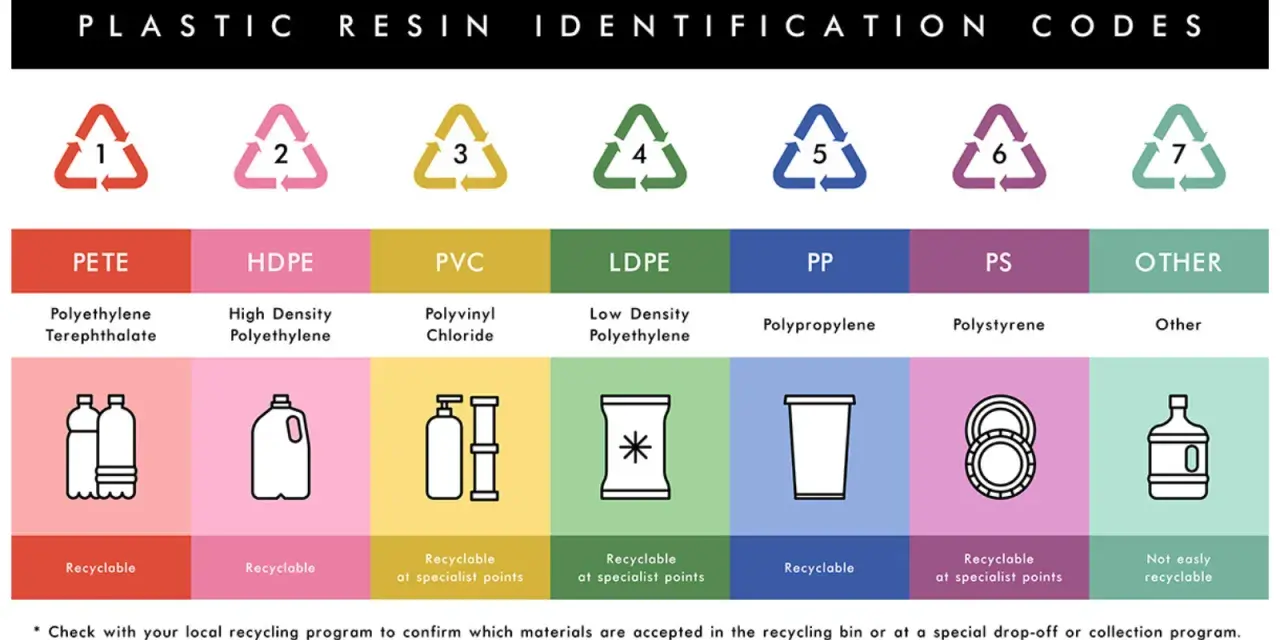

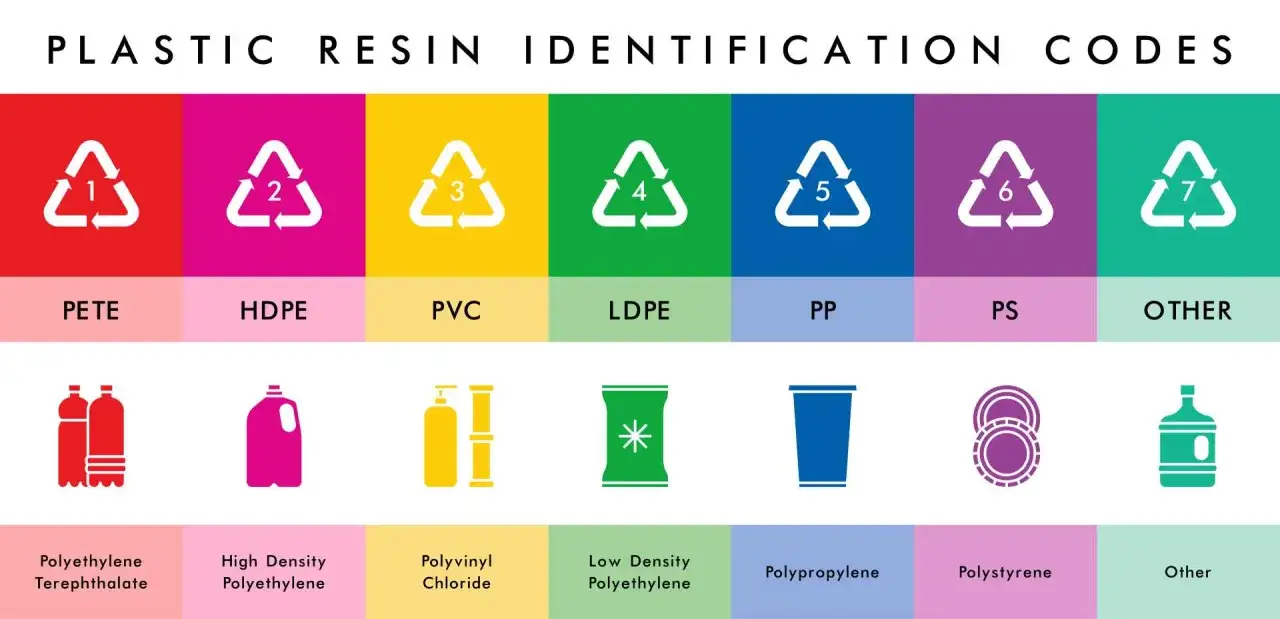

The seven resin groups you see on packaging
In U.S. packaging, the numbered resin identification codes are still the quickest public-facing way to identify a resin family. They are useful for sorting, but they are not a promise that a product will be accepted by curbside recycling in your area. I find this distinction important because people often confuse the symbol with a recycling guarantee.
| Code | Resin | What it is good at | Common uses and cautions |
|---|---|---|---|
| 1 | PET | Clear appearance, good gas barrier, decent strength | Water and soda bottles, food trays, fibers. Good for clarity, but it can lose performance under higher heat. |
| 2 | HDPE | Tough, chemical resistant, moisture resistant | Milk jugs, detergent bottles, pipe, crates. It is less clear than PET, but it handles rougher service well. |
| 3 | PVC | Chemical resistance, weather resistance, versatility in rigid or flexible forms | Piping, cable insulation, some profiles and films. Formulation matters a lot because additives change behavior significantly. |
| 4 | LDPE | Flexibility, sealability, impact tolerance | Film, bags, squeeze bottles, liners. It is soft and pliable, but not a good choice when stiffness is needed. |
| 5 | PP | Good fatigue resistance, chemical resistance, useful heat performance | Caps, living hinges, food containers, labware, automotive trim. It is one of the most versatile everyday thermoplastics. |
| 6 | PS | Rigid, easy to process, can be clear in some forms | Disposable ware, foam packaging, trays, housings. It is useful, but it tends to be brittle compared with PE or PP. |
| 7 | Other | Catchall for specialty or mixed resins | Polycarbonate, ABS, acrylic, nylon, multilayer materials, and blends. The number tells you little on its own, so you need the full resin name. |
The key point is simple: the code identifies the resin family, not the recycling outcome. According to ASTM D7611, the code is used to identify the plastic resin used in an article. In practice, two products with the same number can still behave differently because of additives, wall thickness, colorants, and multilayer construction. That is why resin codes are a starting point, not the whole story.
Why material properties matter more than the label
Most plastic selection mistakes happen when people choose by name instead of by performance requirement. The better approach is to ask what the part must survive. If the wrong resin softens, creeps, cracks, or crazes, the label on the package will not save the design.
| Property | What it tells you | Why it matters in practice |
|---|---|---|
| Stiffness | How much a part resists bending | Important for housings, panels, brackets, and structural parts. |
| Impact resistance | How well a material absorbs a sudden hit | Critical for cases, guards, snaps, and dropped products. |
| Heat resistance | How the resin behaves at elevated temperature | Needed for hot-fill packaging, automotive parts, enclosures, and machine components. |
| Chemical resistance | How well the material handles oils, cleaners, fuels, and solvents | A weak point for parts exposed to detergents, lab chemicals, or industrial fluids. |
| Creep resistance | How much a part slowly deforms under constant load | Critical for clips, shelves, threaded features, and long-life assemblies. |
| Clarity | How much light passes through with minimal haze | Important for displays, medical covers, packaging, and inspection windows. |
Two technical terms are worth knowing. Glass transition temperature is the point where an amorphous plastic starts to lose stiffness and become more rubbery. Heat deflection temperature is a more practical service indicator, because it shows when a loaded part starts to deform. I also pay attention to crystallinity, because semi-crystalline plastics often shrink more during processing but can deliver better chemical resistance and wear behavior.
That property-first mindset becomes even more important once you match a resin to a fabrication method, because the process can expose weaknesses that a product brochure never mentions.
How fabrication method changes the best choice
In plastic design, the manufacturing process is not an afterthought. It shapes wall thickness, shrinkage, cosmetic quality, and even which resin is realistic. I have seen perfectly good materials fail on paper simply because they were a poor match for the process.
| Process | What it favors | Typical resin families |
|---|---|---|
| Injection molding | Good melt flow, predictable shrinkage, repeatable cycle behavior | PP, ABS, PC, PA, HDPE, acetal |
| Extrusion | Stable melt behavior and continuous output | PE, PVC, PP, PET, TPE |
| Thermoforming | Sheet materials with a forgiving forming window | PETG, HIPS, ABS, acrylic, PP sheet |
| CNC machining | Dimensionally stable stock that cuts cleanly | Acrylic, acetal, nylon, HDPE, PTFE, PC |
| 3D printing | Materials with controlled warping and usable interlayer adhesion | PLA, PETG, ABS, nylon, TPU, some PC blends |
A practical detail many beginners miss is the difference between amorphous and semi-crystalline plastics. Amorphous resins such as acrylic and polycarbonate usually offer better clarity and more predictable forming. Semi-crystalline resins such as PE, PP, and nylon often bring better chemical resistance or fatigue performance, but they can warp or shrink more, which matters when tolerances are tight. If I am designing a snap-fit or a thin-wall part, that tradeoff often decides the final material.
So the material choice is never just “strong plastic” or “clear plastic.” It is always a balance between resin behavior and the process that will shape it.
Where recycling codes help and where they mislead
Recycling is the area where I see the most confusion. The code on the container is useful for identifying the resin, but it does not tell you whether your local program actually wants the item. In the U.S., curbside rules vary by city and by sorting facility, so the same container can be accepted in one county and rejected in another.
That matters because the symbol is often read too literally. Wishcycling happens when people place an item in recycling because they hope it can be processed, even if the local system does not accept it. That can contaminate bales and reduce the quality of recovered material. Film, multilayer packaging, foam, and heavily decorated items are especially likely to cause trouble.
The EPA’s plastics material-specific data also show how uneven recovery can be. Its figures report a recycling rate of 29.1 percent for PET bottles and jars and 29.3 percent for natural HDPE bottles in 2018. Those numbers are a reminder that even the most familiar packaging resins are not automatically part of a high-recovery system.
My rule is straightforward: use the resin code to identify the material, then check local guidance to decide whether the item belongs in the bin. That leads directly to the most practical part of the discussion, which is how to narrow the options for a real project.
A practical shortlist for common design jobs
When the brief is vague, I narrow the field by starting with the job the part must do. That is faster than comparing every plastic in the catalog, and it usually gets you to a usable shortlist in minutes.
| Project need | Good starting materials | Why they belong on the list |
|---|---|---|
| Clear packaging or a transparent cover | PET, PETG, acrylic, polycarbonate | These give clarity, but each trades off impact, heat, and cost differently. |
| Lightweight bottle, jug, or chemical container | HDPE, PP | Both resist many household chemicals and survive rough handling well. |
| Snap-fit housing or consumer enclosure | ABS, PC/ABS, PP | These balance stiffness, impact resistance, and processability. |
| Flexible seal, grip, or soft-touch part | TPE, TPU, silicone | Flexibility and recovery matter more than stiffness here. |
| Outdoor part with sun exposure | ASA, UV-stabilized PP or HDPE, UV-protected PC | UV resistance becomes a deciding factor, not a bonus feature. |
| High-heat or load-bearing component | Nylon, acetal, PEEK, thermoset composite | These are selected for service temperature, wear resistance, and dimensional stability. |
If I had to compress the whole topic into one practical rule, it would be this: start with service temperature, chemical exposure, and fabrication method, then balance cost, appearance, and recyclability. That sequence prevents most bad specifications before they happen, and it is the fastest way to move from a broad category to a material that actually works. For plastic design and fabrication, that is usually the difference between a part that merely exists and a part that performs reliably.
