TPU material sits in a useful middle ground: flexible like rubber, but processed like a plastic. In practice, that gives designers a single family of options for abrasion resistance, sealing, impact absorption, and soft-touch surfaces without moving to a fully rubber-based workflow. This article breaks down the property profile, grade selection, fabrication methods, and the limits that matter when you specify it for real parts.
What matters most about thermoplastic polyurethane at a glance
- Thermoplastic polyurethane bridges the gap between elastomeric feel and thermoplastic processing.
- Its strongest traits are abrasion resistance, flexibility, toughness, and design freedom.
- Ether-based and ester-based grades solve different service problems, especially around moisture and wear.
- Drying and temperature control are not optional if you want clean molding or extrusion.
- It is a strong fit for seals, hoses, cable jackets, protective films, and wearable parts.
- Grade approval for food, medical, or flame-retardant use always depends on the exact resin, not the family name alone.
What thermoplastic polyurethane is and why designers care

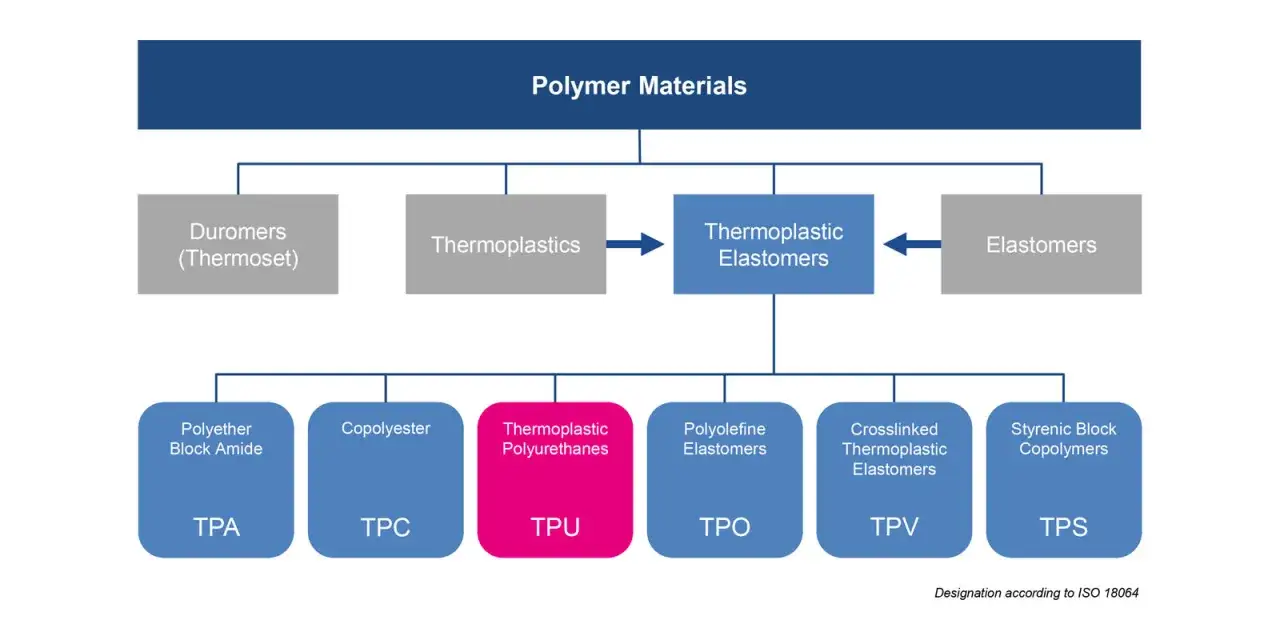

TPU is a thermoplastic elastomer built from hard and soft segments, which is why it behaves like two materials at once. The soft phase gives stretch, rebound, and comfort; the hard phase adds structure, tear resistance, and enough melt behavior to process the resin on standard thermoplastic equipment. I usually think of it as a design material first and a resin second, because its value shows up when performance and manufacturing have to meet in the same part.
That dual behavior matters. Unlike vulcanized rubber, TPU can be melted, shaped, and reprocessed, which makes it much easier to integrate into injection molding, extrusion, and blow molding workflows. It also gives you a broader visual range than many people expect: the same material family can be transparent, colored, grippy, or relatively rigid depending on grade and formulation. That flexibility is exactly why it shows up so often in consumer products and industrial components alike.
The key point is simple: TPU is not one fixed substance with one fixed feel. It is a family of formulations, and the formulation choice decides whether you get a soft sealing part, a tough wear strip, or a more rigid structural component. That is useful, but only once you look at the property profile in a more practical way.
The property profile that actually drives part performance
| Property | Why it matters in design | What I look for |
|---|---|---|
| Abrasion resistance | Controls wear life in sliding or rubbing contact | Belts, rollers, cable jackets, protective edges, and moving interfaces |
| Flexibility and rebound | Lets the part bend repeatedly without feeling dead or brittle | Straps, seals, tubing, wearables, and soft-touch housings |
| Low-temperature toughness | Helps the part stay usable in cold weather or refrigerated conditions | Outdoor parts, cold-chain components, and equipment used in winter |
| Tensile and tear strength | Reduces the risk of rupture under load or at stress points | Thin walls, tabs, overmolds, and flexible structural features |
| Chemical and hydrolysis resistance | Determines how well the part survives moisture, cleaners, oils, or solvents | Grade selection for humid, wet, or chemically exposed environments |
| Surface quality and colorability | Influences appearance, branding, and tactile feel | Consumer products, visible functional parts, and soft-touch finishes |
What I value most here is the balance. BASF notes that modern TPU families can be tuned for high tensile strength, abrasion resistance, flexibility, and resistance to hydrolysis, chemicals, or UV exposure, depending on the base chemistry. That means the material is less about one headline property and more about matching the right combination of properties to the part’s actual job.
There is a practical limitation hidden inside that flexibility: the resin can be excellent in one environment and merely average in another. A part that works well in dry mechanical wear may struggle in hot, wet service, and a soft comfort part may not be the right answer for a high-load mechanical interface. That is why grade chemistry matters so much.
Ether-based and ester-based grades are not interchangeable
| Grade family | Strengths | Watch-outs | Best-fit examples |
|---|---|---|---|
| Ether-based TPU | Excellent hydrolysis resistance, good cold-flex behavior, better resistance to microorganisms | Usually not my first pick when long-term oil or grease exposure dominates | Outdoor parts, humid environments, water-contact components, athletic and marine-style applications |
| Ester-based TPU | Very strong mechanical performance, high wear resistance, strong damping and rebound | Less forgiving when moisture and hydrolysis are part of the service environment | Industrial wear parts, belts, wheels, bushings, and dry-use protective components |
If I had to reduce the choice to one rule, I would say this: choose ether-based grades when water, humidity, sweat, or hydrolysis is part of the reality; choose ester-based grades when dry wear resistance and mechanical toughness matter more. That is not a perfect rule, but it is a reliable starting point.
Covestro’s TPU guidance makes the moisture issue especially clear. TPU pellets absorb water from the air, and the company recommends drying to a moisture content of ≤0.05% for trouble-free processing. It also gives a practical window of about 80-110°C for 1-3 hours, depending on hardness. Those are not small details; they are the difference between a clean part and a part with blisters, streaks, or a foamy surface.
That is why I never specify TPU by hardness alone. Chemistry, moisture exposure, and the end-use environment usually decide more than the nominal Shore value does. Once those variables are sorted, the fabrication route becomes much easier to control.
How TPU is processed without losing performance
TPU works well on standard thermoplastic equipment, but it is not forgiving about bad material handling. Injection molding, extrusion, and blow molding are all common routes, and each one rewards a different kind of discipline. The resin can flow well and fill thin sections, but only if moisture, temperature, and tooling are managed properly.
Drying and storage come first
The first failure mode I check is moisture. If the granules are too wet, surface defects appear quickly, and the melt can lose quality before the part even reaches the mold. Keep the resin covered, keep the hopper protected, and do not leave freshly dried material sitting in open air longer than necessary. That sounds basic, but it is where many prototype problems start.
Injection molding and extrusion each play to different strengths
Lubrizol’s processing guidance emphasizes that TPU melt viscosity is very low, which helps the material fill complex cavities under relatively low injection pressure. That makes it attractive for thin walls, small gates, and detailed molded parts. Extrusion, on the other hand, is where TPU often shines in hoses, profiles, cable sheathing, and films because the material can be pushed into long, continuous shapes with good surface quality.
In injection molding, dead spots and uncontrolled overheating are the enemy. In extrusion, melt consistency and die design matter more than people expect. If you need hollow sections, blow molding can also be a good fit, especially for flexible or semi-rigid shapes that need a clean wall profile.
Read Also: ABS Resin - The Practical Guide for Designers & Fabricators
Post-processing can still distort a good part
One detail that saves a lot of production headaches is post-bake timing. Lubrizol notes that molded parts may distort if they are baked too soon; in its guide, 48 hours before a 122°C, 30-minute bake is recommended. I would take that seriously any time a TPU part is going to be painted, heat-treated, or otherwise exposed to a secondary thermal step.

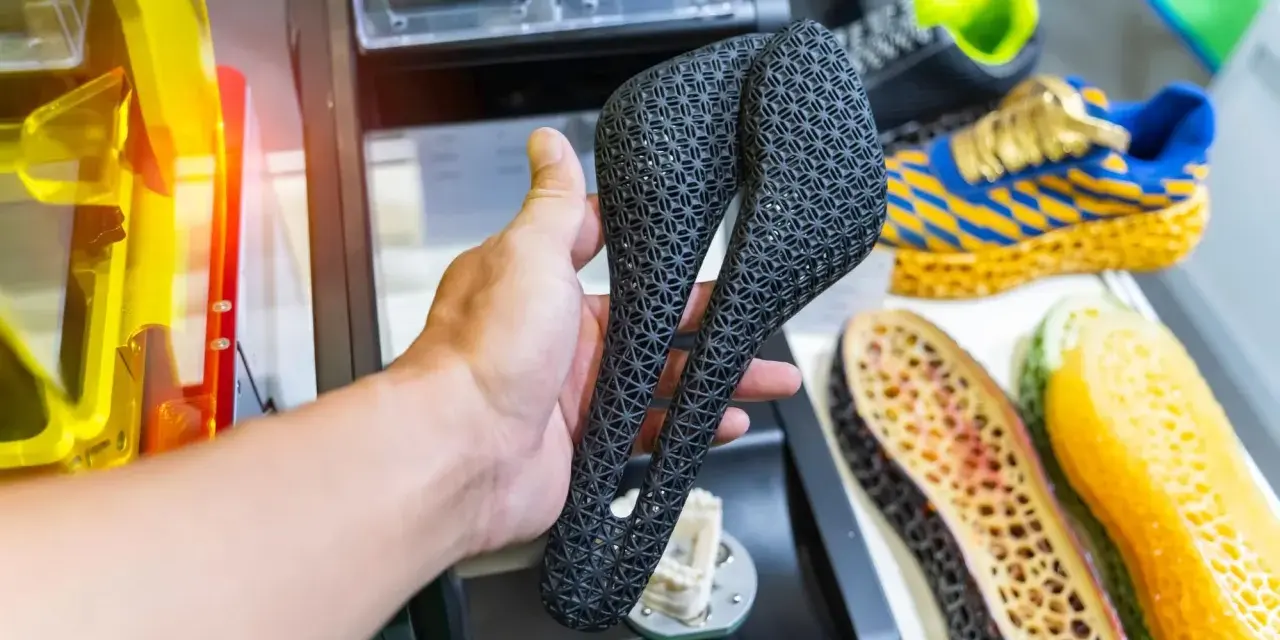

For additive manufacturing, TPU can work well for flexible prototypes, shoe-like geometries, and soft functional parts, but the same rules still apply: keep it dry, keep speeds realistic, and do not expect a printer to forgive a bad grade choice. Once the process is controlled, the material’s best applications become much easier to spot.
Where TPU earns its place in real products
| Application | Why TPU fits | What I would watch |
|---|---|---|
| Seals and gaskets | Flexible recovery and good sealing behavior | Compression set, hardness, and the actual chemical exposure |
| Cable sheathing | Abrasion resistance and repeated flex performance | Bend cycles, jacket thickness, and temperature range |
| Hoses and tubing | Flexibility, kink resistance, and easy processing | Pressure, compatibility with fluids, and sterilization needs |
| Belts, rollers, and wear strips | Wear life under sliding or rolling contact | Heat buildup, oil exposure, and dimensional stability |
| Films, covers, and overmolds | Good surface quality and a wide hardness window | Thickness control, clarity, and bond strength to the substrate |
| Wearables and footwear parts | Comfort, rebound, and soft-touch feel | Hydrolysis, sweat resistance, and long-term appearance |
| Food-contact or medical-grade parts | Specialized grades can meet regulated requirements | Grade-specific approvals, validation data, and processing traceability |
In the U.S. market, I would never assume that a broad material family automatically meets a compliance need. For food-contact, medical, or flame-retardant projects, the exact grade documentation matters more than the marketing label. A supplier may offer those options, but the approval belongs to the specific formulation, not to TPU in general.
By 2026, recycled and bio-based TPU options are much more visible than they used to be, which is useful for brand and sustainability goals. Still, I treat those claims as a starting point, not a shortcut. If the part fails in service, the sustainability story does not matter much.
The checks I make before I specify a TPU grade
- Load case - Decide whether the part is fighting wear, flex fatigue, impact, compression, or a mix of all four.
- Environment - Map moisture, UV, oils, cleaners, temperature swings, and any contact with sweat or water.
- Processing route - Confirm whether the part belongs in injection molding, extrusion, blow molding, or additive manufacturing.
- Hardness target - Use softer grades for comfort, sealing, and grip; use harder grades when shape retention matters more.
- Moisture control - Dry the resin, protect the hopper, and pre-dry any additives that can carry moisture into the melt.
- Compliance and finish - Check regulatory paperwork, surface appearance, and color requirements before freezing the grade.
If I had to give one practical rule, it would be this: TPU is strongest when you need rubber-like behavior with thermoplastic processing, but it only performs that way when the grade, the environment, and the process all line up. That is the difference between a clever material choice and a part that survives production, shipping, and real use. When those three things are aligned, TPU is one of the most useful polymers in the toolbox; when they are not, the shortcomings show up quickly.
