3D printing has become genuinely useful in bicycle design, but the sweet spot is narrower than the headlines suggest. In practice, the strongest builds combine printed titanium or aluminum parts with tubes, lugs, or accessory mounts, while full-frame printing still belongs mostly to high-end prototypes and specialist brands. That matters because the technology changes fit, geometry, and development speed without pretending that every bike should come straight off a printer.
The practical takeaways
- Most real bikes are hybrid builds. Frames, lugs, junctions, and small components are printed more often than entire frames.
- Titanium leads the premium segment. Aluminum is common for prototypes, and polymers are strongest as non-structural parts or tooling.
- The biggest win is design freedom. Custom fit, internal routing, and fast iteration are the real reasons brands use additive manufacturing.
- The economics favor small runs. Boutique printed bikes can cost from the high four figures into the low five figures in the U.S.
- Testing still matters. Fatigue, alignment, heat treatment, and repairability determine whether the bike is genuinely usable.

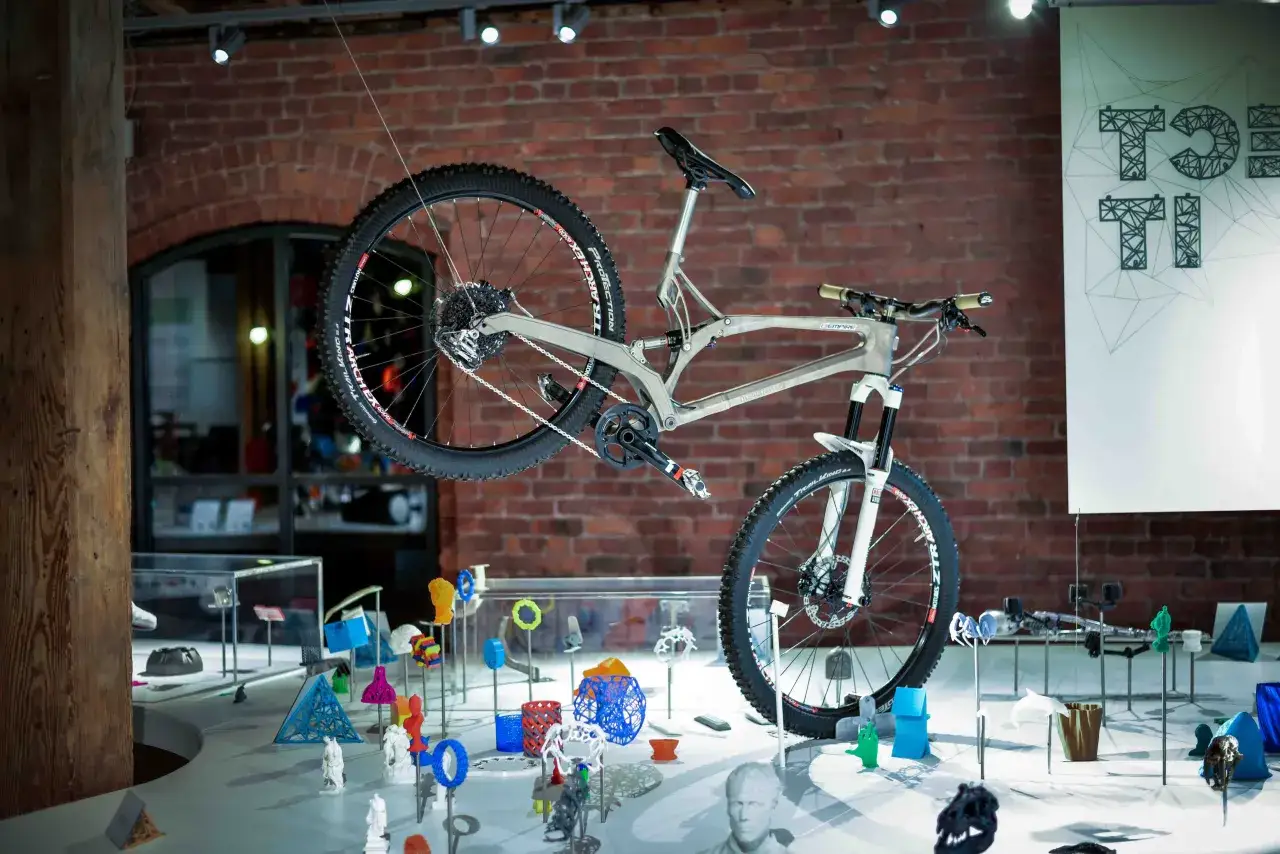

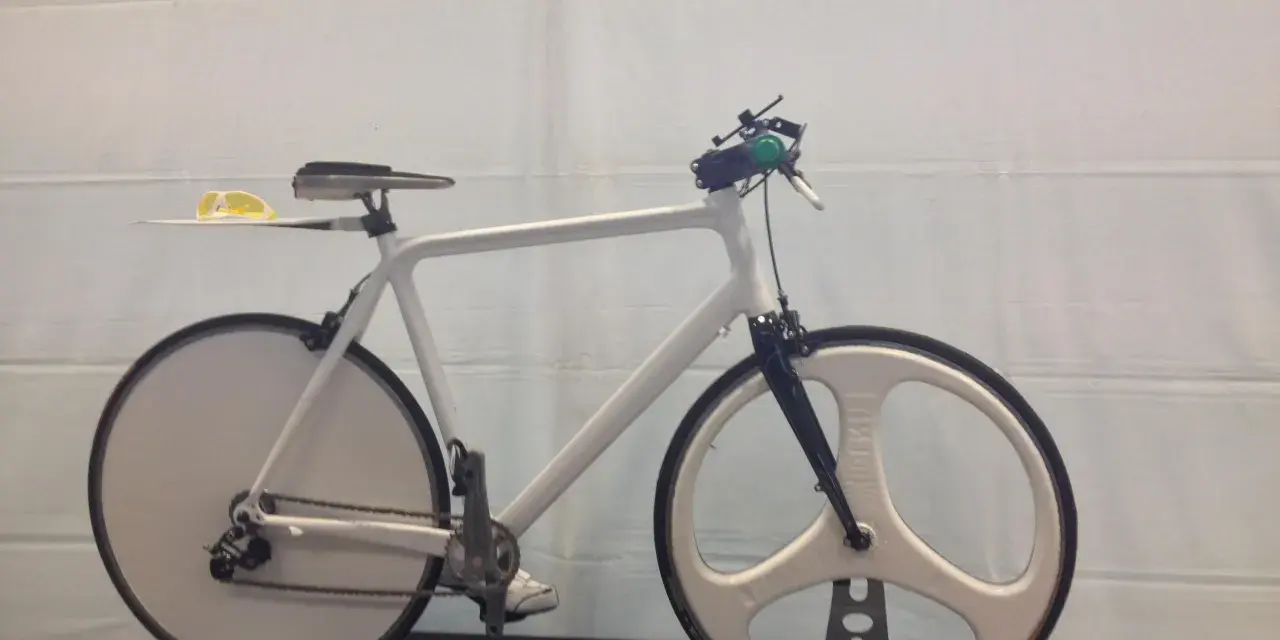

What a 3D-printed bike actually means
The phrase covers three very different things, and mixing them up leads to bad expectations. When I talk about a 3D-printed bike, I usually separate it into a full printed frame, a hybrid frame with printed lugs or junctions, and smaller printed components that support the bike rather than carry the whole load.
| Type | What is printed | Best for | Reality check |
|---|---|---|---|
| Full frame | Most or all of the structural frame | Prototype work, radical one-offs, premium concept builds | Rare, expensive, and heavily dependent on post-processing and testing |
| Hybrid frame | Lugs, junctions, dropouts, seat clusters, brackets | Custom road, gravel, and mountain bikes | The most commercially believable category today |
| Small components | Mounts, clips, cable guides, housings, spacers, tool-free adjusters | Cost-effective customization and rapid spares | Often the smartest use of additive manufacturing on a bike |
In the market I see right now, the hybrid category is the one that makes the most sense. It keeps the performance benefits of traditional tubing while letting designers print complex joints where welding or molding would be awkward. That leads directly to the bigger question: why brands keep choosing additive manufacturing at all.
Why bike brands keep using additive manufacturing
The short answer is that it solves problems traditional methods solve badly. Additive manufacturing gives designers more control over geometry, rider fit, cable routing, internal volume, and local reinforcement. It also removes a lot of tooling pain, which is why it shows up first in prototypes, custom builds, and limited runs rather than in giant factory volumes.
According to Materialise, Kalkhoff was able to move from concept to a fully functional metal prototype in six weeks, while complete bike development usually takes 2 to 2.5 years. That kind of speed is not just a nice-to-have. It lets a team test fit, ride feel, mounting points, and load behavior before they commit to expensive production decisions.
- Custom fit helps match geometry to a specific rider instead of forcing riders into generic sizes.
- Design freedom makes it easier to build shapes that would be inefficient or impossible with welding alone.
- Faster iteration shortens the loop between CAD, prototype, and test ride.
- Lower tooling dependence matters when a brand is making small batches or one-off frames.
- Brand differentiation is real, but I would treat it as a bonus, not the main reason to choose the process.
The catch is simple: additive manufacturing does not make a bike cheaper by default. It makes the design process more flexible, and that only turns into value when the geometry, the volume, or the customization needs justify the extra steps. That is why material choice matters so much.
Which materials make sense and why
Titanium is the premium sweet spot
Titanium is the material I associate most strongly with serious printed bike parts. It is corrosion resistant, strong for its weight, and well suited to high-end lugs, junctions, seatpost toppers, and custom fittings. It also supports the boutique aesthetic many riders want: precise, sculptural, and built around fit.
The downside is cost. Titanium printing is not the place to look for bargain pricing, and the post-processing is part of the bill. You still need machining, finishing, and fatigue validation if the part is carrying real loads.
Aluminum works well for prototypes and select production parts
Aluminum is often the practical middle ground. It is easier to justify in a prototype because engineers can test the shape without committing to full tooling. It is also useful for certain structural parts when the design has to be lightweight and the production run is limited.
Where aluminum gets tricky is heat treatment and geometry control. Once you start printing thin walls and load-bearing shapes, you have to think carefully about residual stress, distortion, and how the part will behave after finishing. That is manageable, but not casual.
Read Also: Filament Color Guide - Master 3D Print Aesthetics & Function
Polymers are better for support parts than for the main frame
Plastic and polymer printing have a clear place on a bicycle, just not usually as the primary frame material. I would use them for prototypes, jigs, fairings, cable guides, housings, chain protectors, and accessory mounts. In those roles they save time and money and let designers move fast.
For a load-bearing frame, polymers are much more limited. Fatigue, heat, and long-term stiffness become the real issues, especially if the bike is expected to survive hard road use or repeated off-road impacts. That is why the most credible bicycle AM projects still lean on metal or metal-composite hybrids.
Once the material is chosen, the next question is process. The route from CAD file to rideable bike has more steps than many people expect.
How the parts are made from CAD to rideable frame
Sika describes a titanium-lug frame project in which lug sets for 20 bike frames could be printed in 24 hours, with wall thicknesses as thin as 0.4 to 0.9 mm. That is a useful reminder that additive manufacturing is not just about “printing a shape”; it is about building a manufacturing system around geometry that conventional methods would struggle to handle.
- Define the bike around loads and fit. I would start with geometry, rider position, braking loads, drivetrain interfaces, and the terrain the bike is meant to handle.
- Run topology optimization. This is software-driven material reduction: keep mass only where the load paths justify it.
- Choose the print strategy. A frame may be printed as a single structure or, more often, as multiple segments or lugs that will be joined later.
- Remove supports and stabilize the part. Support structures are sacrificial scaffolds, and they often need careful removal plus heat treatment or stress relief.
- Machine the interfaces. Bottom brackets, head-tube faces, bearing seats, and axle points usually need CNC finishing for accuracy.
- Assemble and validate. Depending on the design, the parts are welded, bonded, pressed, or mechanically joined, then checked for alignment and fatigue behavior.
The smartest designs do not try to prove that printing can replace every bicycle manufacturing step. They use printing where it is strong and keep conventional fabrication where it is still better. That division is exactly what makes the economics more interesting.
Where the economics work and where they do not
In 2026, I would read the economics of printed bicycle parts in terms of volume, complexity, and customer willingness to pay. If the part is bespoke, low-volume, or geometrically difficult, additive manufacturing can make sense quickly. If the goal is mass production of standard frames, traditional methods still win on unit cost.
| Use case | Fit for AM | Why it works | Main limitation |
|---|---|---|---|
| Functional prototypes | Excellent | Fast turnaround, real-fit testing, fewer tooling delays | Not always final-grade finish or durability |
| Custom boutique frames | Strong | Geometry freedom and premium positioning | Price rises fast once finishing and testing are included |
| Small-batch components | Very strong | Low tooling burden and easy iteration | Post-processing and QA can dominate the schedule |
| High-volume standard frames | Weak | AM is usually not the cheapest path | Conventional welding, molding, and hydroforming are still more efficient |
A useful price anchor is J.Laverack’s AM64 Carbon, which starts at $9,215 for the frameset and $12,838 for the complete bike. That is not a typo. The number tells you exactly where this category lives: premium, bespoke, and very far from commodity pricing.
So when does the spend make sense? I would say when the buyer cares about fit, signature design, or engineering flexibility more than raw value per dollar. That becomes easier to see when you look at a few real builds instead of talking about the technology in the abstract.
Real-world builds that show the difference
The most convincing examples are rarely the loudest ones. What matters is whether the bike solves an actual design problem, not whether it looks futuristic. I find the strongest cases fall into three buckets: full metal prototypes that validated the process, hybrid custom frames that use printed joints, and premium limited-run bikes that use AM as part of a larger design language.
| Example type | What it proves | Why I care |
|---|---|---|
| First-generation metal frames | Metal additive manufacturing can produce a rideable bicycle frame | It established that the category was more than a lab demo |
| Functional e-bike prototypes | Fast iteration and realistic load testing are possible | It shows the value for product development, not just showpieces |
| Printed-titanium hybrid road and gravel bikes | Custom geometry and refined aesthetics are commercially viable | It is where the technology feels mature instead of experimental |
I am more persuaded by hybrid builds than by claims of a fully printed miracle bike. A printed junction connecting conventional tubes is usually the smarter engineering answer because it concentrates the additive process where geometry complexity is highest. That is also why recent premium bikes built around titanium segments and custom fitting feel credible to me, even when the price is high.
There is a real lesson here for U.S. buyers: the best printed bikes are usually not trying to be the cheapest bike on the shop floor. They are trying to be the most tailored, the most design-led, or the fastest to bring from concept to test ride. That brings me to the checklist I would use before spending money on one.
When I would choose one
If I were buying a printed or partly printed bike in 2026, I would ask five things before I looked at paint, branding, or hype. First, what exactly is printed? Second, what material is being used and how is it post-processed? Third, what testing data exists for fatigue and alignment? Fourth, can the frame be repaired if a printed junction is damaged? Fifth, does the price reflect a real advantage in fit or performance, or is it just paying for novelty?
- Choose it if you need custom geometry. That is where additive manufacturing earns its keep.
- Choose it if the design needs complex junctions. Printed lugs and nodes can solve problems that are awkward in welds or molds.
- Choose it if you value limited-run craftsmanship. Boutique production and AM pair naturally.
- Skip it if you mainly want value. Traditional carbon, aluminum, or titanium still gives better price-to-performance in most cases.
- Be strict about testing. A bike that looks advanced but lacks validation is not an advanced bike.
My bottom line is simple: a printed bicycle is compelling when the manufacturing method serves the ride, not the marketing. If you care about fit, bespoke geometry, and clever engineering, the category is absolutely worth watching; if you care first about cost and mainstream availability, conventional bikes still make more sense. The mature takeaway is not that printing replaces bicycle manufacturing, but that it gives designers a sharper tool when the problem is specific enough to justify it.
