The right answer depends on what you mean by strength. When I compare the strongest 3d printer filament options, I separate tensile strength, impact resistance, stiffness, heat tolerance, and layer adhesion, because a material that wins in one category can lose badly in another. That distinction matters even more for functional parts, where the print orientation and the printer itself can make or break the result.
The strongest printable material depends on the kind of failure you need to avoid
- For most functional FDM parts, carbon-fiber nylon is the best balance of stiffness, toughness, and real-world durability.
- Polycarbonate is the better all-round choice when you need heat resistance and impact resistance on a serious desktop printer.
- PEEK and PEKK sit above both, but they belong to high-temp industrial machines and much higher budgets.
- Strength is not one number; layer orientation, drying, enclosure, and wall design can change the outcome dramatically.
- PET-CF is a useful middle ground when you want stiffness and dimensional stability with easier handling than nylon.
What strength actually means in a printed part
I usually start by asking one simple question: what kind of load is the part going to see? A bracket that flexes, a fixture that gets clamped every day, and a cover that sits near a warm motor all fail in different ways. That is why I do not treat “strong” as a single label.
There are four material traits that matter most. Tensile strength tells you how well the part resists being pulled apart. Impact strength tells you how well it handles sudden hits or drops. Stiffness tells you how much it deflects under load. Heat resistance tells you whether the part keeps its shape in a hot environment instead of creeping or softening.
Then there is the 3D printing variable most people underestimate: anisotropy. Printed parts are not uniform like machined blocks. They are stronger along some axes than others, and that is why a well-designed part can still fail if it is oriented badly or printed wet. Once you think in those terms, the material ranking becomes much easier to interpret.
With that in mind, the next step is to separate the materials that are strong on paper from the ones that are genuinely useful on a realistic printer.
The strongest options, ranked by real-world use
If I had to give a practical answer first, I would say this: for most prosumer FDM printers, carbon-fiber nylon is the strongest useful choice, and polycarbonate follows close behind. If you move into industrial high-temperature systems, PEEK and PEKK take the lead, but that is a different class of machine and a different budget.

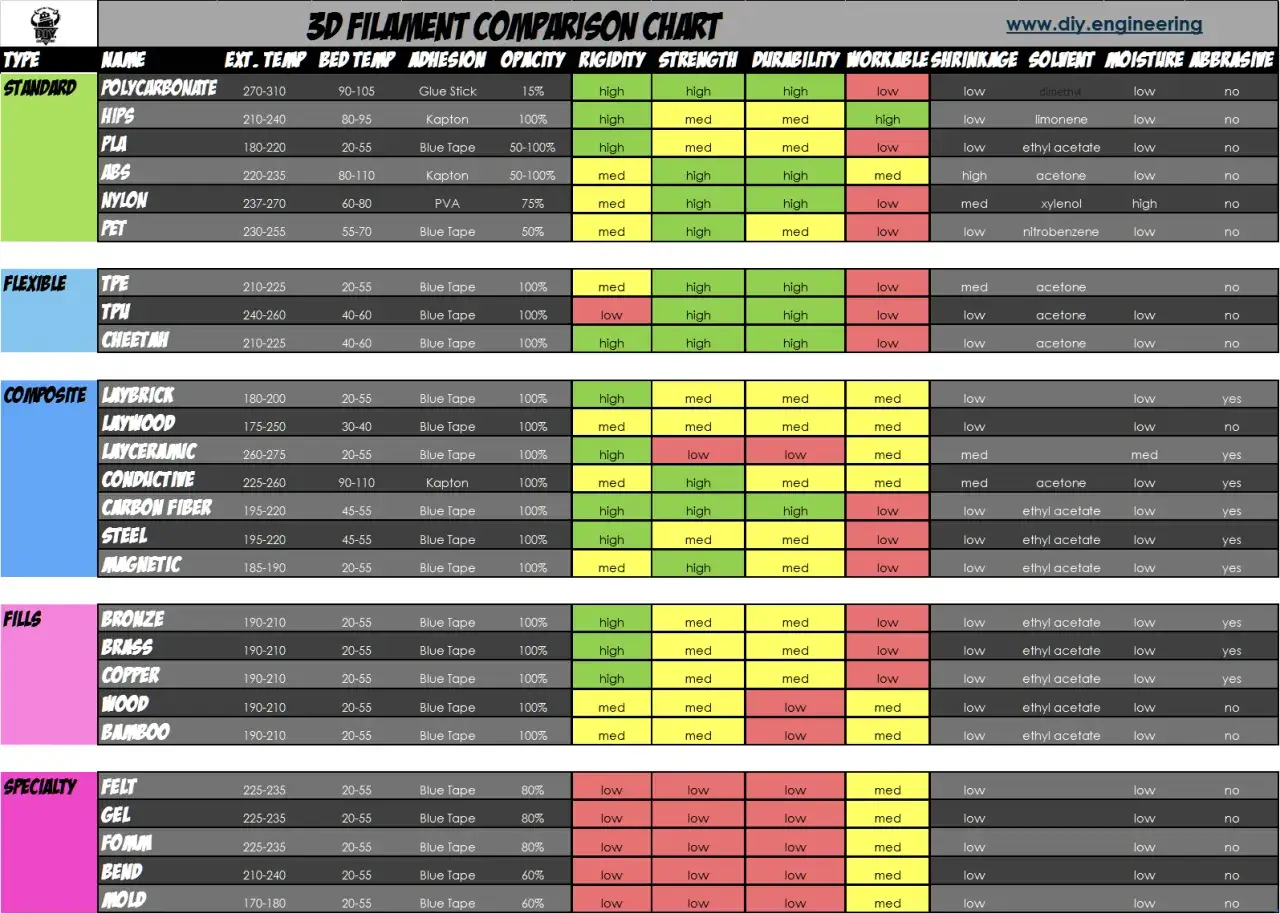

| Material | What it wins at | Typical current U.S. price | Printer expectation | My take |
|---|---|---|---|---|
| Carbon-fiber nylon / PAHT-CF | Best balance of stiffness, toughness, and dimensional stability | $70 to $115 per kg for branded engineering-grade spools | Enclosed printer, hardened nozzle, dry filament | The default choice for hard-working functional parts |
| Polycarbonate | Heat resistance and impact strength | $30 to $60 per kg for mainstream options | High-temp hot end, heated bed, enclosure recommended | Excellent when abuse and heat matter more than easy printing |
| PET-CF | Stiffness, stability, lower moisture sensitivity | $30 to $80 per kg depending on brand | Moderately demanding, often easier than nylon | Strong, but more of a stability pick than a raw toughness king |
| PEEK / PEKK | Extreme heat, chemical resistance, high-end structural use | $200 to $500+ per kg | Industrial high-temp machine only | The top tier, but only if the hardware and part justify it |
That table hides an important point: the “winner” changes depending on whether you care more about stiffness, impact, or heat. A carbon-fiber blend can be the stiffest practical option, while a nylon-based composite may absorb more abuse before it cracks. That is why I do not recommend picking by tensile strength alone.
When carbon-fiber nylon beats everything else you can print on a desktop
Carbon-fiber nylon is the material I reach for when a part has to feel serious. The carbon fibers raise stiffness and reduce warping, while the nylon base keeps the part from becoming too brittle. In practical terms, that combination is ideal for jigs, fixtures, robot brackets, drone arms, machine mounts, and low-volume production parts that need to survive repeated loading.
A current PAHT-CF formulation shows why this category is so popular: tensile strength around 92 ± 7 MPa, bending strength around 125 ± 7 MPa, impact strength around 57.5 ± 3.4 kJ/m², and heat deflection around 194°C. Those are not hobby-material numbers. They are the kind of values that move a part from “prototype” into “usable engineering component.”
There is a catch, though. Nylon absorbs moisture, and carbon-fiber blends are abrasive. If you skip drying, print too fast, or use a soft brass nozzle, the part quality drops quickly. I treat PAHT-CF as a high-payoff material, but only when the printer setup is ready for it. If not, the results are disappointing and the filament gets blamed for problems caused by the process.
That is why I often compare it directly with polycarbonate before I recommend it to someone building durable parts.
Why polycarbonate is still the heavy hitter for impact and heat
Polycarbonate remains one of the most respected engineering filaments because it handles abuse well. It is tough, heat resistant, and less likely than many plastics to crack suddenly under stress. For enclosures, guards, mechanical covers, and parts that live near warm electronics or motors, PC is still one of the smartest choices.
In one current FDM data set, printed PC shows 57.3 MPa strength at break in one orientation and a heat deflection temperature of 143.7°C. Another current PC formulation is described as retaining dimensional stability up to 105°C. Those numbers are why I think of PC as the material you use when PLA and PETG are out of their depth but you do not want to jump straight into industrial thermoplastics.
PC is not effortless, though. It wants higher nozzle and bed temperatures, and it tends to punish poor chamber control with warp or layer stress. It also does not have the same forgiving moisture behavior that some composite nylons can offer. My rule is simple: if the part needs to survive heat and mechanical abuse on a serious desktop machine, PC deserves a very close look.
From there, the next decision is whether the part needs the efficiency of a composite, or the absolute performance of a high-temperature polymer.
How I choose between PC, nylon CF, PET-CF, and PEEK
Here is the decision logic I use in practice.
- Choose carbon-fiber nylon when you need a part that stays stiff, resists impact, and behaves like a real structural component.
- Choose polycarbonate when the part will face heat, knocks, or repeated handling, and you want a strong material that is still within reach of advanced desktop printers.
- Choose PET-CF when dimensional stability and lower moisture sensitivity matter more than maximum toughness.
- Choose PEEK or PEKK only when the application is truly demanding enough to justify industrial hardware, specialist processing, and a much higher material cost.
The cost gap matters. In the U.S. market, PC often sits around $30 to $60 per kg, PET-CF frequently lands in the $30 to $80 per kg range, PAHT-CF is commonly closer to $70 to $115 per kg, and PEEK can jump to $200 to $500+ per kg. At that point, material choice is no longer just about performance. It becomes a question of whether the printer, the part value, and the production volume all make sense together.
That is also why I always ask what the printer can actually do before I talk about the spool.
What your printer must handle before you buy the spool
The best filament in the world will not save an under-specced machine. For carbon-fiber nylon, I want an enclosed printer, a hardened steel nozzle, stable bed adhesion, and a dry storage workflow. Current PAHT-CF guidance shows a nozzle range of 260 to 290°C, a bed range of 80 to 100°C, and drying for 8 to 12 hours at 80°C. That is a serious process, not a casual one.
Polycarbonate is similar in spirit, even if the exact settings vary by brand. It benefits from a hot chamber, good bed adhesion, and careful cooling control. If the printer cannot hold temperature consistently, the material’s real-world strength drops because layer bonding suffers.
PEEK and PEKK are in another league entirely. They typically need nozzle temperatures around 400°C or more, a chamber that can stay hot, and hardware built for sustained high-temperature use. That is why I treat them as industrial solutions rather than the natural upgrade from PETG.
My blunt advice: do not buy a premium filament before checking whether your machine can print it without compromise. The machine defines the ceiling, and the filament only works inside that ceiling.
Common mistakes that make a strong filament perform weakly
I see the same mistakes over and over, and most of them have nothing to do with the brand of filament.
- Choosing by tensile strength only and ignoring impact, stiffness, and heat resistance.
- Printing the part in the wrong orientation, which can cut effective strength dramatically across layers.
- Skipping filament drying, especially with nylon blends that absorb moisture quickly.
- Using a brass nozzle with abrasive composites, which wears the nozzle and ruins extrusion consistency.
- Ignoring wall thickness, infill, and load path, then expecting a thin shell to behave like a machined block.
- Overlooking creep, which is the slow deformation that happens when a part sits under load for long periods.
Layer orientation is the one I would emphasize most. In one carbon-fiber nylon data set, tensile strength is about 105 MPa in the XY direction and about 67.7 MPa in Z. In a PC data set, strength at break drops from 57.3 MPa in one orientation to 35.5 MPa in another. That is not a small difference. It is the difference between a part that survives real use and one that fails when the load crosses the layers instead of running with them.
Once you understand those failure modes, the final choice becomes more practical and less myth-driven.
The rule I use when a part has to survive abuse
If the part needs the best balance of strength, stiffness, and toughness on a desktop FDM printer, I start with carbon-fiber nylon. If heat and impact are the priority, I move to polycarbonate. If the part is high value, chemically exposed, or truly extreme, I stop pretending this is a normal filament question and evaluate PEEK or PEKK on industrial hardware.
That is the simplest honest answer I can give: the strongest printable material is the one that matches the failure mode, the printer, and the budget. If I had to choose one default for a tough functional print in the U.S. market, I would start with PAHT-CF, then move to PC when heat becomes the bigger problem, and reserve PEEK or PEKK for the jobs that justify the cost and equipment.
When the decision is made this way, the result is usually better than chasing the biggest number on a spec sheet. That is the version of “strong” that actually holds up in the shop.
