Curing resin prints is one of those steps that looks simple until you start chasing clean surfaces, full strength, and consistent results. The answer is not a single number: a small model may be ready in a few minutes, while a thick engineering part can need much longer, especially if you are using heat-assisted post-curing. In this article I break down the time ranges that actually make sense, the variables that change them, and the practical signs that tell you when to stop.
The fastest safe cure is the one matched to the resin and part size
- Small decorative prints usually start around 1-3 minutes in a strong 395-405 nm curing station.
- Average parts often land in the 5-10 minute range.
- Thicker or engineering-grade resins can need 15-30 minutes, and some heat-based workflows go up to 120 minutes.
- Drying matters: if IPA or rinse water is still trapped in the surface, cure quality drops.
- Overcuring has tradeoffs such as brittleness, yellowing, and loss of detail on clear resins.
- Best practice: start short, inspect, and extend time in small steps.
The practical answer for most resin prints
If you want a working rule, I would start with 2 to 5 minutes for a small print, 5 to 10 minutes for a medium part, and 10 to 20 minutes for a thicker functional piece. That is a starting point, not a law. Siraya Tech's fast resins call for only 1 to 2 minutes under 395-405 nm light, while Formlabs notes that some engineering resins can benefit from up to 120 minutes in heat-assisted hardware.
Here is the range I use as a practical reference when I do not have a resin-specific datasheet in front of me:
| Print type | Typical cure time | What I expect in practice |
|---|---|---|
| Small miniatures and decorative parts | 1-3 minutes | Fast surface cure, sharp detail, low risk of internal stress if the part is thin |
| Average hobby parts | 5-10 minutes | A good middle ground for most standard resins and consumer UV stations |
| Thick or functional parts | 10-20 minutes | More time is needed because light only penetrates so far into the part |
| Flexible, tough, or engineering resins | 15-30 minutes | These materials often keep improving with longer cure cycles, especially with heat |
| Sunlight or DIY UV setup | Hours | Cheap, but slow and inconsistent; I only use it when there is no better option |
Use the table as a starting map, not a finish line. The next thing that matters is why one print hits those times quickly while another takes much longer.
What changes cure time more than people expect

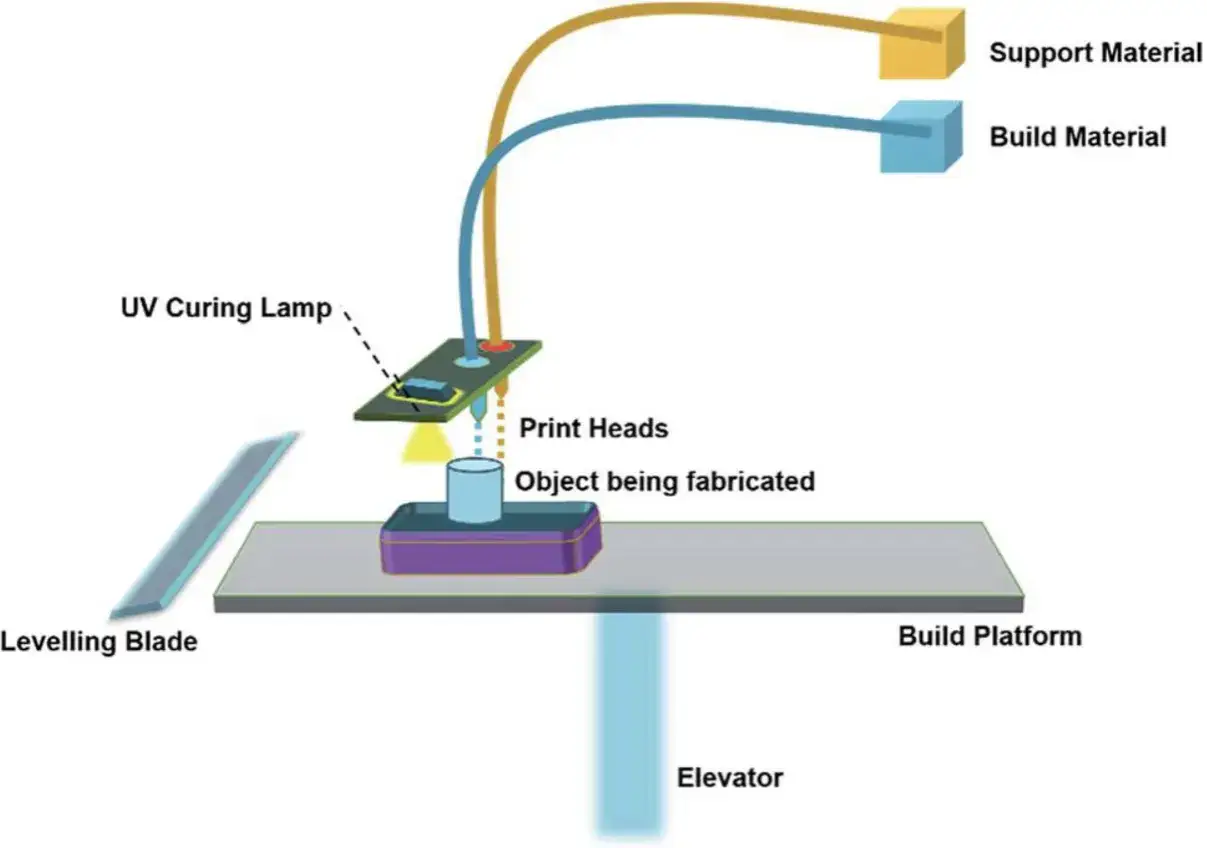

Most people assume cure time is controlled by the lamp alone. In reality, the resin, the geometry, and the cleaning step often matter just as much. Curing is a cross-linking process: the UV light helps the remaining liquid-like resin bonds form into a harder network, and that process behaves differently depending on the part.
- Resin chemistry changes everything. Standard resins usually cure faster than flexible or engineering formulations.
- Part thickness slows the process. Light cures the surface first, and deeper sections need more time or more heat to finish properly.
- Color and opacity matter. Clear and light-colored resins often show cure changes faster, which is one reason they can yellow or overharden more easily.
- Wavelength and intensity are not the same thing. Most desktop stations work around 395-405 nm, but a stronger, more even setup will cure more predictably than a weak one.
- Temperature speeds the reaction. Heat-assisted chambers do more than just shine light; they help the chemistry complete more fully and consistently.
- Washing and drying affect the result. If IPA, rinse water, or uncured surface resin is still hanging around, the part can feel tacky or cure unevenly.
I also pay attention to shape. Hollow shells, deep recesses, dense support scars, and blind pockets all trap residue and slow curing in ways that a flat test cube never reveals. Once you understand those levers, the signs of a finished part become much easier to read.
How to tell when a print is ready to come out
I do not rely on the clock alone. Time gets you close, but the part itself tells you whether it is done. For most prints, I look for a surface that is dry to the touch, no longer tacky, and visually even rather than wet or glossy in random spots.
- The surface feels dry, not sticky or rubbery.
- Detail stays crisp instead of smearing slightly when handled.
- The finish looks even, usually matte or uniformly cured rather than patchy.
- The part feels stable when lightly flexed, though flexible resins will still have their own expected give.
For functional parts, I also watch the stress points. If a bracket, clip, or mount still feels softer than it should, I extend cure time in small increments instead of jumping to a much longer cycle all at once. That matters because the biggest mistakes usually come from curing in the wrong way, not merely curing for the wrong number of minutes.
The mistakes that add time without improving the print
Most curing problems are self-inflicted. The print is not “mysteriously bad”; it was washed too poorly, cured too aggressively, or exposed unevenly. I see the same few mistakes over and over.
- Curing before the part is fully dry leaves alcohol or rinse residue trapped in the surface.
- Using the same time for every resin ignores how differently standard, tough, flexible, and castable materials behave.
- Overrelying on sunlight creates long, inconsistent cycles that are hard to repeat.
- Leaving one side exposed can warp thin parts or leave the back undercured.
- Chasing “extra cure” by default can make parts brittle, especially on clear or light-colored resins.
- Ignoring the manufacturer’s schedule is a bad trade if the print needs strength, heat resistance, or dimensional accuracy.
There is a real tradeoff here. Under-cured prints can feel sticky, weak, or even unsafe to handle for long periods, but over-cured prints can become brittle and may yellow faster than you expected. The safest route is not the longest cure; it is the most controlled one.
A workflow I would use for reliable results
When I want repeatable results, I follow the same sequence every time. It is not glamorous, but it works because it removes the variables that most often cause problems.
- Wash the print thoroughly with the resin maker’s recommended solvent or a clean IPA bath.
- Let the part dry completely, including hollow spaces, support scars, and deep recesses.
- Start with the resin maker’s recommended cure time if you have it; otherwise begin with a conservative midrange time.
- Expose the print from all sides, either in a rotating station or by turning it manually.
- Check the surface and add 1-2 minutes at a time only if the part still feels soft or tacky.
- Stop as soon as the surface is dry and the part has the stiffness you need for its job.
If I am working with a combined wash-and-cure machine, I still treat drying as a separate step. The convenience of the box does not replace the need for a dry part, and a part that looks clean but still holds solvent can fool you into thinking it is ready. That is why I always favor controlled, incremental curing over one long guess.
The rule I use when a print is almost there
My default rule is simple: undercuring can usually be fixed, overcuring often cannot. If the part is decorative, I would rather stop slightly early and check the finish than bake it past the point where fine detail starts to degrade. If the part is functional, I lean on the resin’s technical sheet and use the resin and hardware combination the manufacturer actually tested.
That last point matters more than people think. Some resins are happy with a short UV cycle; others keep improving for much longer when heat is part of the process. The most useful habit is to record the resin name, curing device, distance, minutes, and final feel so the next print does not start from zero. In practice, that small log saves more failed parts than any single curing accessory.
