FDM and resin printing solve different problems, even when they start from the same CAD file. The real choice is not about which process is “better” in the abstract; it is about whether you need a tough, practical thermoplastic part or a detail-first print with a smoother finish. In this article, I break down the tradeoffs that actually matter: print quality, strength, workflow, safety, and cost.
The right printer depends on what the part must do after it leaves the build plate
- FDM is usually the better fit for larger functional parts, jigs, fixtures, housings, and prototypes that will be handled or stressed.
- Resin is usually the better fit for small, highly detailed parts, presentation models, miniatures, dental models, and casting masters.
- Resin printing gives you finer detail and smoother surfaces, but it also adds washing, curing, and more careful handling.
- FDM is simpler to run and cheaper to start with, but it leaves visible layer lines and can struggle with very fine geometry.
- For many shops, the best answer is not one technology replacing the other; it is using each where it is strongest.
How I separate the real use cases
When I compare filament printing with resin printing, I start with the part’s job, not the machine’s spec sheet. If the part needs to survive handling, mounting, vibration, or a bit of heat, FDM is usually where I begin. If the part is judged by surface quality, tiny text, sharp edges, or a smooth cosmetic finish, resin tends to be the better opening move.
That simple split keeps you from overbuying detail you do not need, or underbuying strength you will regret later. A printed bracket, tool holder, or enclosure often benefits more from predictable thermoplastic behavior than from a glassy surface. A miniature, jewelry master, or inspection model, on the other hand, usually benefits more from precision than from impact resistance.
My rule of thumb is blunt: if the part will be used, grab FDM first; if it will be inspected up close, displayed, or cast into something else, resin deserves a hard look. That leads directly to how each process actually builds the part.
How each process actually builds a part
FDM, or fused deposition modeling, works by melting a solid filament and laying it down through a nozzle, one road of plastic at a time. The part grows as those roads stack into layers, which is why you see line patterns and stair-stepping on curved surfaces. Typical FDM layer heights usually sit in the 50 to 400 micron range, and that vertical layering is the main reason surface quality is never perfectly smooth straight off the printer.
Resin printing works differently. Instead of pushing molten plastic through a nozzle, the printer cures liquid photopolymer with light, building the part in thin layers inside a vat. In practice, desktop resin machines commonly print around 25 to 100 microns, and the liquid material self-levels before curing, which is why fine features and smooth surfaces are easier to achieve.
What that means in plain language
FDM is mechanically simple, but the nozzle and layer paths are always visible to some degree. Resin is chemically and operationally more demanding, but it can reproduce tiny geometry with much less visible stepping. That difference matters more than people expect, especially when the part includes text, thin ribs, small bosses, or organic curves.
That process gap is why the same CAD file can feel like two different products depending on which printer makes it.

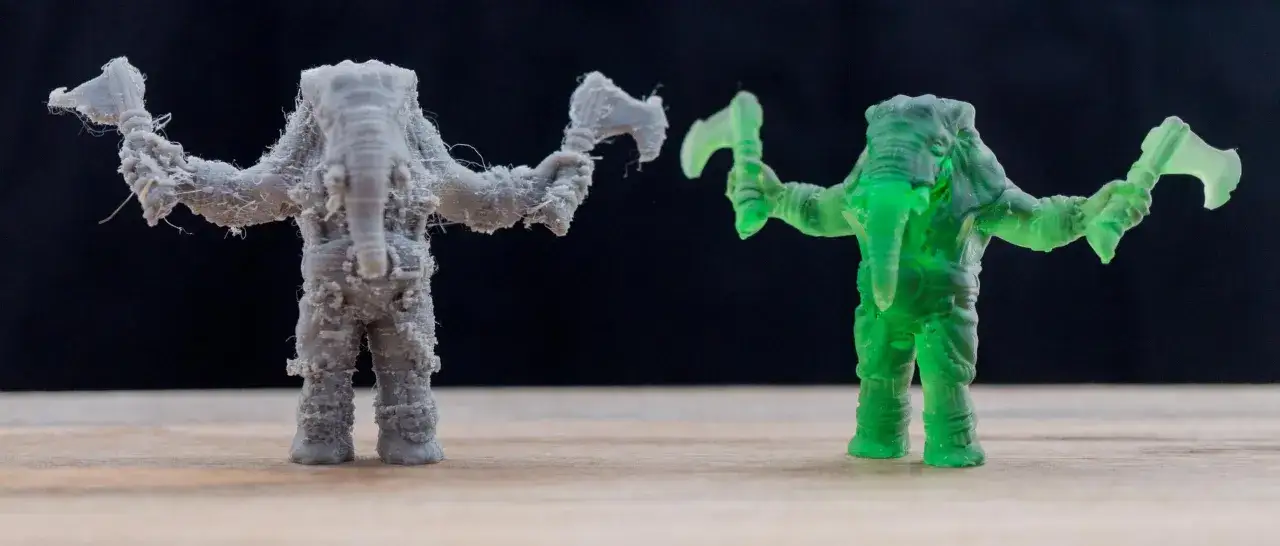

Why resin wins on detail but FDM often wins on usefulness
When people ask me for a direct comparison, this is usually the section they need most. Resin generally wins on surface finish, fine detail, and dimensional fidelity on small parts. FDM usually wins on build size, material variety, impact resistance, and overall practicality for everyday shop work.
| Criterion | FDM | Resin |
|---|---|---|
| Surface finish | Visible layer lines are normal | Smoother out of the printer |
| Fine detail | Good, but limited by nozzle size | Excellent for tiny features and text |
| Dimensional accuracy | Good on well-tuned machines, but more affected by extrusion and cooling | Very good, especially on small features, but post-cure can shift dimensions |
| Build volume | Usually larger | Usually smaller |
| Supports | Often easier to remove, but can leave scars | More delicate and often more visible on contact points |
| Best use | Functional parts, fixtures, housings, prototypes | Miniatures, dental models, masters, visual prototypes |
There is also a throughput angle that gets overlooked. FDM often scales better for larger parts because you can print bigger objects or many medium parts in one job. Resin can be very fast for small detailed parts, and it is especially efficient when you pack a build plate with many tiny items. For production planning, that difference matters as much as raw print quality.
I also think resin is overpraised when people only talk about “detail.” Detail is useful, but only if the part survives the real world you put it into. That is where material behavior becomes the deciding factor.
Strength, flexibility, and long-term durability
FDM parts are usually the better choice when the part must take knocks, flex a little, or live near heat. The thermoplastics used in FDM give you a wide menu: PLA for easy prototyping, PETG for a tougher general-purpose option, ABS and ASA for more demanding use, TPU for flexibility, nylon for durability, and composites for stiffness. That variety is one of FDM’s biggest advantages, because you can match the material to the job instead of forcing one resin family to do everything.
Resin parts have improved a lot, and engineering resins have narrowed the gap, but standard photopolymers are still more likely to feel brittle. In simple terms, resin often gives you a clean-looking part that is harder on the eyes than on the hands. Some specialty resins are much tougher than hobby users expect, but they are still not the same as choosing a thermoplastic with known impact or heat resistance.
Read Also: SLS 3D Printing - Is It Right For Your Shop?
Anisotropic versus isotropic behavior
FDM prints are typically anisotropic, which means strength can vary by direction because layers are stacked on top of each other. Resin parts are closer to isotropic, meaning the material behaves more uniformly in all directions. That sounds like a win for resin, and in a narrow sense it is, but the material itself can still be brittle or less forgiving under impact.
That is why I do not treat isotropy as a magic trump card. Uniform behavior is helpful, but if the resin snaps where a thermoplastic would bend, the uniformity does not save the part.
There is also the environmental side of the story. FDM materials such as ASA and PETG are usually easier to trust outdoors, while resin parts can be more sensitive to sunlight and long-term exposure if the material is not specifically chosen for that environment. That matters for enclosures, mounts, outdoor fixtures, and parts that sit in a hot car or by a window.
Once you add handling conditions and the environment, the workflow question becomes just as important as the material choice.
Workflow, cleanup, and safety are part of the decision
FDM is the simpler workflow. I slice the model, load filament, level the plate, print, remove the part, and do a little cleanup if needed. That cleanup usually means support removal, trimming strings, and maybe sanding or priming if I want a cleaner finish. The process is straightforward enough that it works well in classrooms, offices, workshops, and garages.
Resin printing is a more controlled workflow. I print the part, let excess resin drain, wash it in isopropyl alcohol or a dedicated wash solution, remove supports, and then cure it under UV light. If I want the part to be stable and fully usable, that wash-and-cure stage is not optional. It is part of the process, not an afterthought.
- FDM workflow: slice, print, cool, remove, trim, sand if needed.
- Resin workflow: slice, print, wash, dry, remove supports, UV cure, final clean-up.
- FDM handling: fewer consumables, fewer liquids, less protective gear.
- Resin handling: gloves, ventilation, dedicated tools, and more disciplined cleanup.
That extra handling is not just a convenience issue. It changes how you think about the machine. FDM feels closer to a standard fabrication tool. Resin feels closer to a finishing process with a printer attached to it. If you underestimate that difference, the printer will not feel “difficult” in a technical sense, but it will feel annoying in daily use.
And because that annoyance turns into real cost, the next thing I look at is not the sticker price alone, but the full operating picture.
What the price tags hide
Printer price is only the first line in the budget. Entry-level FDM printers commonly start around $200 to $300, while desktop resin printers tend to start around $1,000 to $3,000 for more capable systems. That gap already matters, but it is not the whole story.
Material pricing is also different. Filament often runs about $20 to $50 per kilogram, while resin is commonly around $50 to $200 per liter. On paper, that makes resin look expensive, but the better question is cost per usable part, not cost per container.
| Cost factor | FDM | Resin |
|---|---|---|
| Entry hardware | Lower | Higher |
| Material price | Usually cheaper | Usually more expensive |
| Extra equipment | Usually minimal | Wash station, cure station, gloves, solvent, ventilation |
| Labor | Lower active handling | More active handling and cleanup |
| Best cost scenario | Larger, simpler, functional parts | Small, detailed, high-value parts |
The hidden cost with resin is workflow overhead. You need somewhere to wash parts, somewhere to cure them, and enough discipline to handle liquid resin safely. You also need to accept that failed prints can be messier to recover from. FDM has its own waste and tuning problems, but the day-to-day operating burden is usually lighter.
In practice, I would not choose resin because it is “more precise” if the part is simple and large. I would choose it when the precision creates value that the extra handling actually earns back. That is the point where the decision becomes genuinely practical.
The rule I use when I only get one machine
If I can only buy one printer, I ask where the majority of jobs will come from. For shop fixtures, replacement parts, enclosures, brackets, prototypes with moving loads, and larger components, I start with FDM. For miniatures, display models, jewelry patterns, dental work, and tiny parts with crisp edges, I start with resin.
- Choose FDM first if the part will be handled, bolted, flexed, or exposed to heat and sunlight.
- Choose resin first if the part must look sharp, fit tiny details, or serve as a master for casting or presentation.
- Use both if your workflow includes both functional fabrication and high-detail finishing.
That is the version of the comparison I trust in real production work. FDM and resin are not rivals so much as two different answers to two different manufacturing problems, and the best teams usually stop treating them like substitutes. They pick the one that matches the part, the timeline, and the amount of cleanup they are willing to own.
