Plastic components live or die on process choice. In this article, I break down how thermoforming and injection molding shape finished parts, where each method fits best, and which design decisions matter most for cost, quality, and lead time. I also cover the practical details that usually decide the outcome: wall thickness, draft, tooling, materials, and the trade-offs that are easy to miss early.
The quickest way to choose the right plastic process is to match geometry, volume, and finish requirements
- Thermoforming is usually the better fit for large, shallow, or one-sided parts with lower tooling cost.
- Injection molding wins when you need tighter detail, repeatability, and very high volume.
- Part size changes the economics fast; the break-even point is often around 3,000 to 5,000 units, but it can move with geometry.
- Wall thickness, draft, and undercuts are the first places where a design becomes expensive or easy to manufacture.
- Material choice is not just about strength; it also affects surface appearance, trimming, cycle time, and scrap.
How thermoforming and injection molding differ in practice
Thermoforming starts with a heated plastic sheet that is pulled, pressed, or vacuum-formed over a mold and then trimmed to final shape. Injection molding starts with pellets that are melted and forced into a closed tool, where the part cools before ejection. That difference sounds simple, but it changes everything else: tooling cost, part detail, wall behavior, finish options, and the amount of flexibility you have once production begins.
| Factor | Thermoforming | Injection molding |
|---|---|---|
| Best fit | Large, shallow, or one-sided parts | Small to medium parts with more detail |
| Tooling cost | Often about $2,000 to $30,000, with many common tools landing around $4,000 to $7,000 | Often about $3,000 to $100,000+ depending on complexity and cavity count |
| Wall behavior | Thickness varies as the sheet stretches | Thickness can be designed more uniformly |
| Detail | Good for moderate detail, less ideal for tiny features | Better for fine features, bosses, ribs, and tighter geometry |
| Cycle behavior | Often fast for light-gauge parts; heavy-gauge or large-sheet jobs can take much longer | Commonly measured in seconds to a couple of minutes, depending on cooling and part thickness |
I usually think of thermoforming as a geometry-efficient process and injection molding as a detail-efficient process. Once you see that distinction clearly, the next question becomes a business one: when does one process actually pay off better than the other?

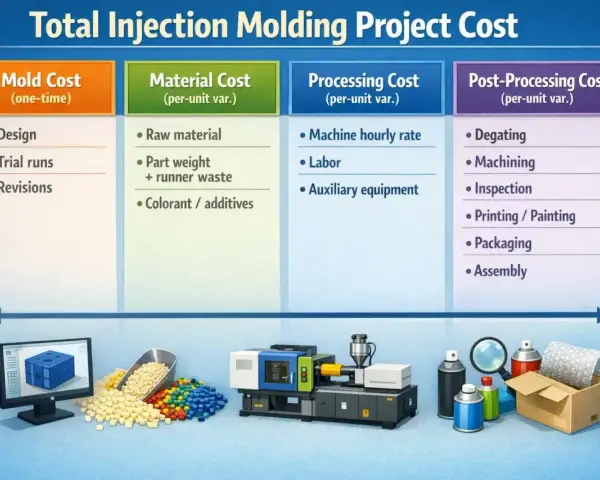

When the economics tip one way or the other
For many U.S. programs, the decision is not about whether a part can be made. It is about whether it can be made with sane tooling cost and acceptable unit cost over the life of the project. A common breakeven range is around 3,000 to 5,000 parts, but I would not treat that as a law. Part size, cosmetic expectations, and the number of cavities can move the line in either direction.
Thermoforming tends to make sense when the part is big, the shape is relatively open, and the run is not huge. Think equipment covers, enclosures, trays, liners, protective shrouds, and panels. The tooling is simpler, so you do not need massive volume to justify the project. Injection molding becomes more attractive as the part gets smaller, more detailed, or more heavily produced, because the part price drops sharply once the mold is amortized over enough units.
Here is the short version I use in practice:
- Choose thermoforming when the part is large, the cosmetic face is mainly on one side, and tooling budget matters early.
- Choose injection molding when the part needs ribs, bosses, snap features, tighter repeatability, or a more complex 3D shape.
- Choose thermoforming first when you need a quicker path to market and the design is still likely to change.
- Choose injection molding first when the design is stable and production volume will stay high for a long time.
That economic split is useful, but it only works if the design itself suits the process. The next section is where most of the avoidable mistakes happen.
Design rules that prevent scrap and surprise costs
When a project goes wrong, the issue is usually not the resin. It is the shape. I see the same mistakes again and again: walls that are too thick in the wrong place, draft that was treated as optional, and details that were copied from one process into another without redesign. A part can look clean in CAD and still be awkward or expensive to produce.
Wall thickness is not just a number
Injection molded parts generally live in a wall range of about 1 to 5 mm, with many practical designs starting around 1.2 to 3 mm. Uniformity matters because sudden thickness changes can create sink marks, warp, and longer cooling times. In injection molding, ribs are often kept to about 40% to 60% of the base wall so they add stiffness without telegraphing defects through the surface.
Thermoforming behaves differently because the sheet stretches. Light-gauge sheet is often in the 0.010 to 0.080 in range, while heavy-gauge work moves well beyond that and can reach a quarter inch or more on some parts. The thicker the starting sheet and the deeper the draw, the more carefully you need to think about thinning. I usually treat draw ratio as a real design constraint, not a post-quote afterthought. The deeper the part, the more likely the wall will vary across the surface.
Draft angle is the quiet detail that saves a tool
Draft lets the part release cleanly from the mold. In injection molding, a common starting point is about 1 to 2 degrees on many features, with more draft needed for deeper walls or textured surfaces. For thermoforming, vertical surfaces usually need more taper because the sheet has to release from a single-sided tool; female features often work around 1.5 to 2.5 degrees, while male features commonly need 4 to 6 degrees.
That difference matters because people often copy the same steep wall from one process to another and expect the part to behave the same way. It rarely does.
Undercuts and texture change the whole approach
Injection molding can handle undercuts with slides, lifters, or collapsible cores, but those features add cost and complexity. Thermoforming is less forgiving. Small undercuts can sometimes be managed if the part shrinks away from the tool, but deeper ones usually require special tooling, secondary trimming, or a redesign. If the part needs a strong visual texture, remember that texture increases the need for draft in both processes.
That is why I ask about release early. If the part does not release cleanly, the mold quote is only the beginning of the expense.
Read Also: 3D Printing for Casting & Molding - Your Guide to Success
Tolerances and edge quality must be planned, not hoped for
Injection molding is the better choice when dimensional control is critical, but even there, tolerances depend on part size, material, gate location, and cooling. Thermoforming is naturally more variable because the sheet stretches and then gets trimmed. For that reason, formed parts often rely more on acceptable functional ranges than on extremely tight feature-to-feature control. If a cosmetic edge, mating flange, or sealing surface matters, I would define it explicitly instead of assuming the shop will infer it.
Once the shape is under control, the next lever is material selection, because the resin or sheet stock changes both appearance and performance.
Materials and finishes that suit each process
Material choice is not just a strength decision. It affects how the part forms, how it cools, how it looks, and how much post-processing you will need. Some resins are easy to thermoform because they arrive as sheet stock and behave well under heat. Others are better suited to injection molding because they fill fine features cleanly and hold detail with less variation.
| Material | Process fit | Why it is often used |
|---|---|---|
| HIPS | Thermoforming | Low cost, easy to form, good for trays, covers, and packaging |
| PETG | Thermoforming or injection molding | Good clarity and impact resistance for display parts and medical packaging |
| ABS | Both | Balanced impact performance, good appearance, and reliable processing |
| Polycarbonate | Both | High impact resistance and better heat resistance for protective parts |
| PP and PE | Both, especially utility parts | Chemical resistance, toughness, and flexibility for trays, liners, and housings |
For finishes, thermoformed parts often rely on trimming quality, printed graphics, coating, or pre-colored sheet stock. Injection molded parts can build more of the finish directly into the tool through texture, gloss control, or molded-in color. If you need a premium look, I would decide the finish strategy before tooling starts, not after samples arrive. A late finish change can be more expensive than the part itself.
Once the material story is clear, the remaining challenge is practical: making sure the part, the budget, and the production schedule all line up.
What I check before I release a design for tooling
Before I approve a plastic part for tooling, I run through a short checklist. It sounds basic, but it prevents most of the expensive surprises:
- Volume - Is this a 500-piece program, a 5,000-piece program, or a long-running production part?
- Geometry - Does the part need deep detail, or is it mostly a large shell or panel?
- Release - Can the part eject or unwrap cleanly without forcing the tool to become too complex?
- Thickness - Are we controlling wall behavior, or are we just accepting whatever the process gives us?
- Finish - Do we need texture, gloss, transparency, print, or a painted surface?
- Assembly - Will there be inserts, welds, fasteners, adhesives, or secondary trimming?
- Inspection - Which dimensions are functional, and which are only cosmetic?
I also ask whether the part has to survive transport, UV exposure, chemicals, or repeated handling. Those requirements often push the design toward a different resin or a different process altogether. For molded plastic parts, the best route is usually the one that balances geometry, volume, and acceptable risk, not the one that looks cheapest in a single quote. If you start there, the rest of the project becomes much easier to quote, build, and ship.
