Fast-built tooling is the practical middle ground when a design is close enough to test, but not stable enough for full production. In this article I explain how quick-turn molds are made, where they fit in thermoforming and molding, what drives lead time and cost, and which design choices matter most when the goal is usable parts instead of theory.

What rapid tooling solves in a real production schedule

I use rapid tooling when the design is close, but the team still needs physical parts for fit checks, form validation, customer samples, or a short launch window. The point is not to bypass tooling altogether; it is to replace a months-long wait with a tool that can be built, tested, and adjusted much sooner.

That matters because most product teams do not fail on the final production tool first. They fail on assumptions: a wall that looked fine in CAD but sags in real material, a corner that traps air, a trim edge that shifts after cooling, or a resin that behaves differently than expected. A faster tool lets me find those problems when they are still cheap to fix.

In practical terms, I think of it as bridge tooling. It bridges the gap between prototype and production, and it is especially useful when the design may still change after the first parts are tested in the real world. That is why it shows up so often in thermoforming, molding, and other plastics workflows where speed matters but part quality still has to be credible.

Once that goal is clear, the next question is not “Can we make a tool quickly?” but “Which tool type gets us there with the least risk?”

The main ways I build tools quickly

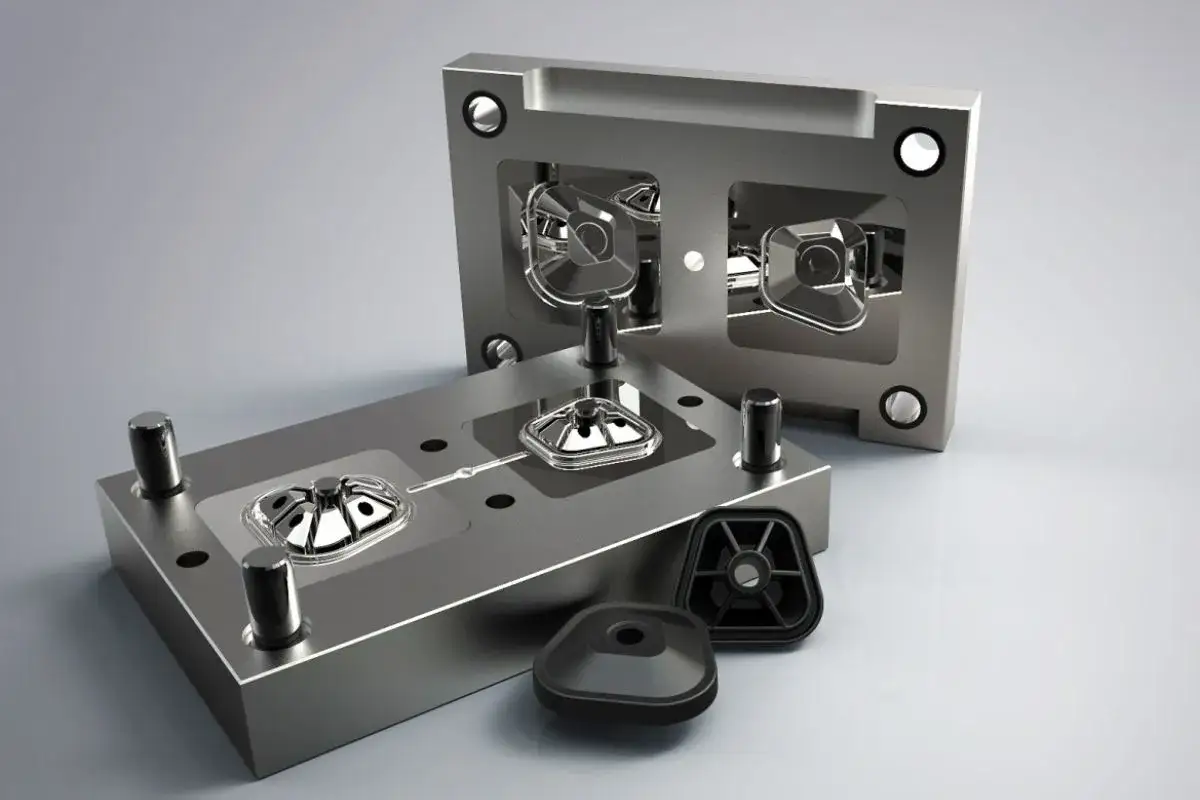

There is no single fast tooling method that wins every time. I usually choose among CNC-machined aluminum, 3D-printed tools, cast urethane or epoxy tools, and hybrid builds depending on volume, surface quality, and how much uncertainty is left in the design.

I find aluminum to be the safest default when the part has to look decent, the timeline is tight, and the tool needs to survive more than a handful of pulls or shots. Printed tools are great when learning speed matters more than longevity. Hybrid builds sit in the middle and are often underrated because they let me spend durability only where it is actually needed.

The decision changes once thermoforming enters the picture, because sheet forming has its own set of tool demands.

Why thermoforming changes the tooling decision

Thermoforming looks simpler than molding at first glance, but it is unforgiving in different ways. I am shaping a heated sheet, not injecting a molten polymer, so the tool has to manage air escape, part release, draw depth, and cooling behavior all at once.

That is why the mold surface and geometry matter so much. A good thermoforming tool needs enough draft for release, enough venting to stop air pockets, and enough thermal stability to avoid softening or distortion during repeated cycles. If any of those are wrong, the part usually shows it immediately.

• Venting keeps trapped air from leaving bubbles, webbing, or incomplete detail transfer.
• Draft angle helps the formed sheet release cleanly instead of sticking and stretching on the way out.
• Radiused corners reduce thinning in deep draws and lower the chance of tearing.
• Thermal mass affects cycle time because a tool that holds too much heat slows the whole process.
• Tool stiffness matters when the mold is printed or composite-based, because a soft tool can deform before the part is fully set.

For vacuum forming, I prefer a tool that is simple, well-vented, and conservative on fine detail. For pressure forming, I can push the detail further, but only if the tool is rigid enough to keep the surface stable under load. In either case, a printed tool is usually best when the run is short and the geometry is still moving. A machined aluminum tool becomes the better choice as soon as surface quality and repeatability start to matter.

That is also why many thermoforming teams care more about tool behavior than tool life in the abstract. A fast tool that warps after a few pulls is not useful; a slightly slower tool that gives consistent parts is.

Injection molding is more demanding in a different direction, so I treat it as a separate decision.

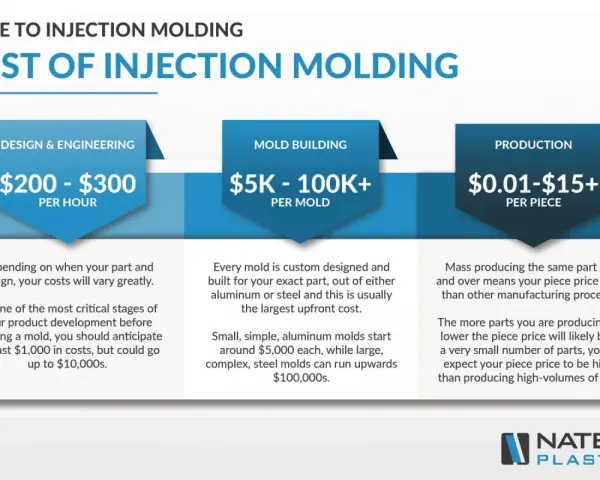

How I choose tooling for molding projects

In injection molding, the real pressure is not just inside the cavity. It is in the schedule. The mold has to fill properly, cool predictably, release cleanly, and survive repeated cycles without turning into a maintenance problem. That makes tool material and mold architecture central to the decision.

I usually split the choice into three questions: how many parts are needed, how stable is the design, and how much wear can the tool tolerate before it stops being economical? If the answer is “not many parts” and “the design may still change,” I lean toward aluminum or another short-life tool. If the answer is “stable design” and “high volume,” hardened steel starts to make sense.

There is one detail many teams miss: aluminum is not just faster because it is cheaper to buy. It is also easier to machine than steel, which is one reason prototype tooling often comes back sooner. In practice, prototype molds commonly land in the 2 to 6 week range, and simpler jobs can sometimes move even faster when the shop capacity is open. That short window is often enough to validate a design before committing to a more expensive production mold.

Once the tool type is chosen, the next gains usually come from how the part itself is designed.

A practical path from CAD to first parts

I do not start with the tool. I start with the part and ask what absolutely has to be proven first. If the design is still fluid, I focus on critical dimensions, fit, and form before I worry about perfect cosmetics. That keeps the early tool simple and prevents unnecessary complexity from slowing everything down.

1. Freeze the function, not every detail. Decide which dimensions, surfaces, and interfaces actually matter for the first round of testing.
2. Run a DFM check early. Draft, wall thickness, undercuts, venting, gate placement, and ejection all need attention before the tool is cut or printed.
3. Match the tool to the risk. If the design is uncertain, I stay with a tool that is fast to revise. If the design is stable, I move toward a more durable build.
4. Plan one revision loop. A first tool rarely arrives perfect. I budget for one practical adjustment rather than pretending iteration will not happen.
5. Test with the real material. The actual resin or sheet stock matters more than a lab substitute when I want honest results.
6. Define pass/fail before the first shot or pull. I want clear criteria for dimensions, surface, release behavior, and cycle time before the tool ever runs.

When teams do this well, the tool becomes a learning instrument instead of a gamble. For thermoforming, that means checking draw behavior, trim accuracy, and cosmetic transfer. For molding, it means confirming fill, shrink, ejection, and repeatability. If any of those are off, I would rather change the tool while it is still cheap than defend a bad decision because the schedule is tight.

The fastest projects usually go wrong in the same predictable ways, and most of them are avoidable.

Where teams lose the speed advantage

The biggest mistake is overbuilding the first tool. Teams often add fine texture, tight tolerances, or complex moving features before the geometry is proven. That sounds efficient on paper, but it usually slows the project down and makes every correction more expensive.

• Too much detail too early creates unnecessary machining time and more opportunities for rework.
• Poor venting in thermoforming causes air traps, thin spots, and incomplete feature transfer.
• Weak thermal management can make printed or composite tools lose shape faster than expected.
• Ignoring release geometry leads to sticking, part distortion, or damage during ejection.
• Choosing a tool only on price often backfires when cycle time or finish quality becomes the real bottleneck.
• Skipping the bridge plan leaves teams with no path from pilot parts to production parts once demand shows up.

I also see teams underestimate how much the secondary steps matter. A thermoformed part still has to be trimmed cleanly. A molded part still has to be gated, cooled, and ejected in a way that matches the intended use. If those follow-on steps are not designed alongside the tool, the supposed speed advantage gets eaten by finishing work.

That is why I prefer a tool that is simple, honest, and easy to adjust over a clever one that looks impressive but slows the project down. The best quick-turn programs are rarely the fanciest ones.

What I would do when the part has to scale

If a part needs to move from pilot run to steady volume, I usually plan a two-step tooling ladder. First I use the fastest tool that can produce credible parts. Then I move to a more durable tool once the design, forecast, and material behavior are stable enough to justify it.

• Use printed or urethane tooling when the main goal is learning, sampling, or very short runs.
• Use aluminum bridge tooling when you need sellable parts before the final mold is finished.
• Move to hardened steel when the part is stable, the volume is predictable, and cycle life matters more than lead time.
• Keep the same reference datums and critical dimensions across tool generations so qualification does not start over.

That approach is usually the most efficient one in U.S. manufacturing schedules because it avoids a false choice between speed and durability. You can have both, but not in the same tool at every stage. The trick is to use the right tool for the right phase, then let the part earn its way into production.
