Acrylic is widely used because it is clear, light, and easy to fabricate, but its electrical behavior is often misunderstood. Does acrylic conduct electricity? In normal sheet form, no: standard acrylic acts as an insulator, yet it can still hold static charge and behave differently when coatings, fillers, moisture, or contamination are involved. This article breaks down the real electrical properties of acrylic, where it works well, and when you need a static-dissipative or conductive alternative.
Acrylic blocks current, but surface charge is a separate issue
- Standard acrylic is an electrical insulator, not a meaningful conductor.
- It can still build static charge on the surface, which attracts dust and lint.
- ESD and antistatic acrylic are engineered to dissipate charge faster, but they are not the same as metal.
- Moisture, dirt, coatings, and conductive fillers can change how the surface behaves.
- If you need true conductivity, standard acrylic is the wrong starting point.
Acrylic is an insulator, not a conductor
In practice, I treat standard acrylic as a classic insulating plastic. Acrylic is usually PMMA, or polymethyl methacrylate, and its polymer structure does not give electrons an easy path the way a metal does. Plexiglas technical information describes standard acrylic sheet as an excellent electrical insulator, and typical PMMA datasheets put volume resistivity above 1017 ohm-cm with dielectric strength around 15 to 20 kV/mm.
Those numbers matter because they tell you two different things. Volume resistivity describes how hard it is for charge to move through the bulk of the sheet, while dielectric strength describes how much electric field the material can withstand before breakdown in a test setup. A material can score very well on both and still not be a conductor, which is why acrylic is useful for electrical separation but not for carrying current.
| Property | Typical standard acrylic behavior | Why it matters |
|---|---|---|
| Volume resistivity | >1017 ohm-cm | Bulk current flow is extremely limited |
| Dielectric strength | About 15 to 20 kV/mm | The sheet can withstand strong electric fields under test conditions |
| Dielectric constant | About 2.5 to 3.3 | Typical low-polarity plastic behavior, useful in insulation work |
| Arc resistance | No track in some datasheets | Better resistance to surface tracking than many basic plastics |
That is the clean answer, but it is only half the story. The next question is why acrylic sometimes feels “electrically active” even though it does not conduct like wire.
When acrylic seems to behave differently

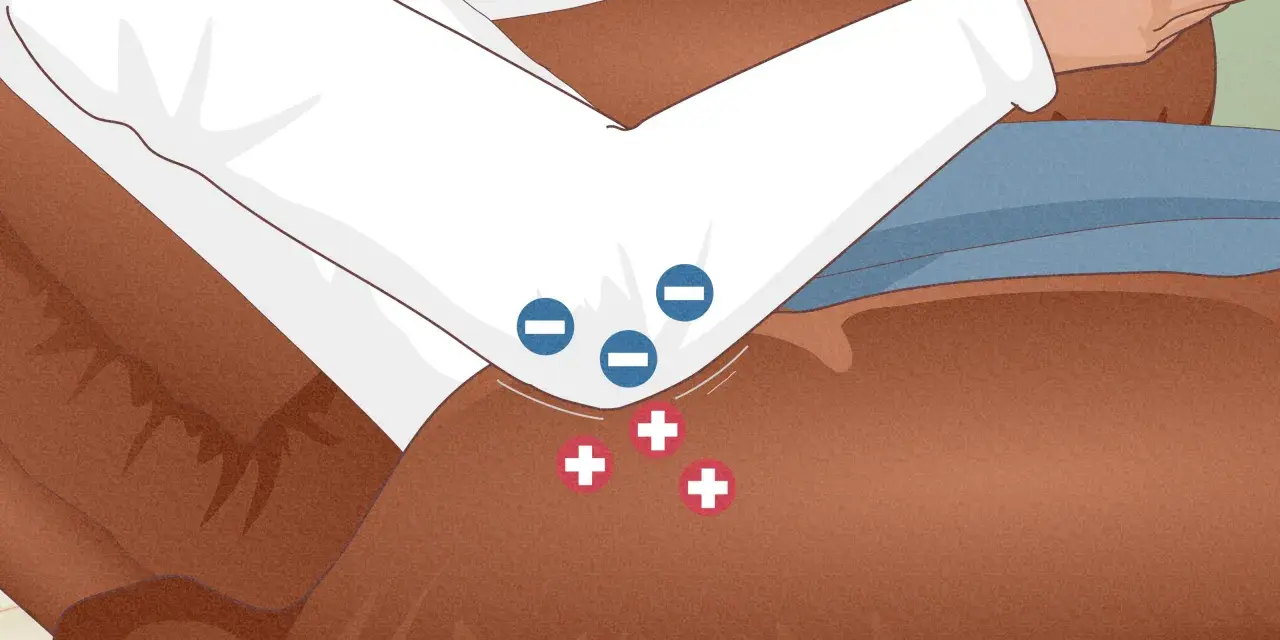

Acrylic does not become conductive just because the room changes, but its surface can behave differently depending on how it is handled and finished. Dry air, rubbing, and cleaning can leave the sheet with a static charge, which is why acrylic often attracts dust and lint. I see this most often in display work, machine guards, and freshly fabricated parts where the surface has been wiped, polished, or peeled from masking.
Moisture and contamination matter too. A thin layer of water, dust, residue, or process chemicals can create a surface path that leaks charge more easily than clean, dry acrylic. That does not mean the bulk material has turned into a conductor. It means the surface condition has changed, and for practical work that distinction is important.
There are also special grades made to control static. Plaskolite’s OPTIX ESD/AS data sheet lists surface resistivity below 5 × 108 ohms per square, which is far lower than standard acrylic but still not the same as a metal path. In other words, ESD acrylic is designed to dissipate charge, not to turn a clear plastic panel into a wire.
| Grade | How it behaves | Best use |
|---|---|---|
| Standard acrylic | Strong insulator, static can build on the surface | Clear windows, guards, signs, covers |
| ESD or antistatic acrylic | Surface charge dissipates faster | Electronics areas, cleanrooms, dust-sensitive enclosures |
| Conductive-filled or coated acrylic | Engineered for much lower resistance | Specialized industrial or controlled environments |
Once you separate bulk insulation from surface static, the next step is deciding where acrylic actually makes sense in an electrical design.
Where acrylic fits in electrical applications
I like acrylic whenever the job calls for visibility plus electrical separation. That is why it shows up in instrument windows, machine guards, light covers, protective shields, signage near low-voltage equipment, and faceplates that need to stay transparent. It gives you a clean visual barrier without introducing a conductive bridge.
Its usefulness is not only electrical. Acrylic is light, easy to machine, and available in clear or tinted grades, which makes it practical for fabrication and replacement parts. For many shops, that combination is the real advantage: you get a sheet that is easy to cut, drill, polish, and thermoform without giving up insulation.
That said, I would not let the material’s clarity create false confidence. Acrylic is not a universal substitute for glass, polycarbonate, ceramic, or purpose-built electrical insulation. If the part sits near heat, impact, arc exposure, or tight clearance requirements, I would check the full design, not just the material name. The next question is how to choose the right grade without over- or under-specifying the part.How to choose the right grade for the job
When I specify acrylic, I start with the electrical requirement first and the appearance requirement second. That order saves mistakes. If the project only needs a transparent insulator, standard acrylic is usually enough. If the environment creates static problems, an antistatic or ESD grade is a smarter choice. If the part must actually carry current, acrylic is usually the wrong material family altogether.
| Your goal | Better choice | Why I would choose it |
|---|---|---|
| Insulation with clear visibility | Standard PMMA acrylic | High resistivity, good clarity, easy fabrication |
| Static control around electronics | ESD or antistatic acrylic | Helps reduce dust attraction and discharge risk |
| True electrical conductivity | Conductive plastic, metal, or a coated composite | Standard acrylic will not behave like a conductor |
| Outdoor clarity and weathering | UV-stable acrylic | Maintains transparency better than many clear plastics |
One detail I always stress is that “antistatic” does not automatically mean “conductive.” Some products merely reduce charge buildup on the surface, while others use a coating or filler system to dissipate charge more aggressively. Read the data sheet carefully and look for surface resistivity, volume resistivity, and the intended use environment before you commit to a sheet. That leads directly into the real-world traps that cause most confusion.
What I check on the shop floor
Most problems with acrylic near electrical systems are not about the polymer itself. They come from how the part is handled, cut, cleaned, and installed. Freshly machined edges collect dust more easily, scratched surfaces hold grime, and the wrong solvent can craze the sheet and leave tiny surface defects that are easy to miss until the panel is already in service.
There are four checks I make every time:
- Surface condition matters, because dirt and residue can change static behavior.
- Cleaning method matters, because aggressive solvents can damage the sheet and its finish.
- Humidity and dust matter, because dry, dirty environments make static buildup more noticeable.
- Clearance and creepage still matter, because acrylic does not erase electrical design rules.
I also avoid assuming that a clear panel is automatically safe around live circuits. Acrylic can be a good insulator, but a real enclosure still needs proper spacing, mounting, and maintenance planning. If the environment is harsh or contamination is likely, the material choice has to be paired with the right geometry and housekeeping. Once those limits are clear, the material is much easier to use well.
What I would remember before using acrylic near electricity
The short version is simple: standard acrylic does not conduct electricity in any useful way, and that is exactly why it works so well as a transparent insulator. Its weakness is not bulk conduction, but static charge on the surface, which can become a nuisance in dusty or electronics-heavy environments.
If you need only insulation and visibility, standard acrylic is often the right answer. If you need static control, move to an ESD or antistatic grade. If you need true conductivity, choose a material system built for that job instead of trying to force ordinary acrylic to behave like metal. That distinction saves time, avoids failed testing, and usually leads to a cleaner final design.
