Cast and extruded acrylic are both PMMA sheet, but the manufacturing path changes how the material cuts, bends, polishes, and holds up over time. The real question behind extruded vs cast acrylic is not which one sounds premium; it is which sheet behaves better in your application. I want to make that choice straightforward: what each process is, where the performance gap shows up, and how to avoid buying the wrong sheet for a sign, guard, display, or glazing project.
The right sheet is the one that survives the job you give it
- Cast acrylic usually wins when clarity, chemical resistance, machining quality, or long-term load matter.
- Extruded acrylic usually wins when cost, thickness consistency, and faster thermoforming or cementing matter.
- For premium visual work, water exposure, and thicker stock, cast is often the safer call.
- For flat signs, display panels, and repeatable production, extruded often gives better economics.
- The expensive mistakes are usually about stress, heat, and chemistry, not the sheet label itself.

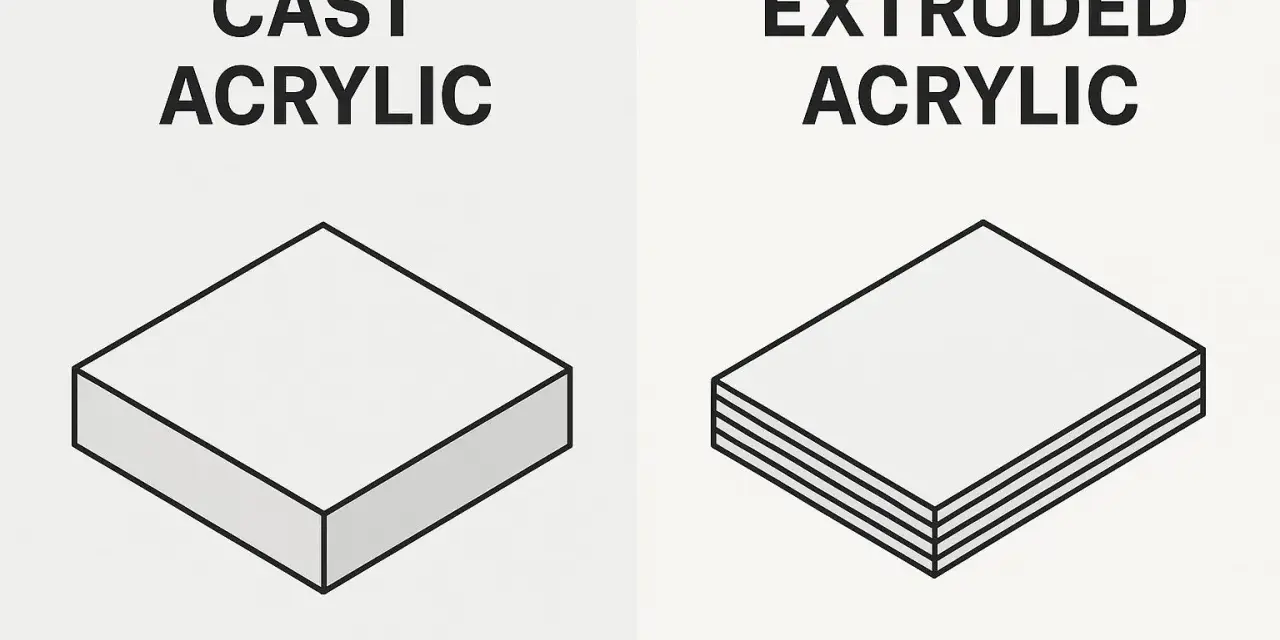

How the two sheet types are made
Most people in fabrication mean cell-cast acrylic when they say cast. The sheet starts as liquid monomer between polished plates and cures into an individual panel; extruded acrylic is pushed through a continuous forming line. Both are PMMA, but the route matters because the extrusion process uses a lower-molecular-weight polymer than cell casting, which is one reason the two products do not behave the same under heat, chemicals, and machining.
That process difference also explains the practical buying pattern. Cast sheet is where I look for more thickness options, custom colors, and low minimum order quantities. Extruded sheet is where I look for efficient, repeatable production and better thickness tolerance on standard parts. In other words, the manufacturing method is not just background detail; it is the reason the same design can look fine on paper but feel different on the bench.
That split becomes obvious once the sheet is judged by appearance, finishing, and service life, so that is where I look next.
What actually changes in performance and appearance
On paper, both materials are clear acrylic. In practice, the sheet you choose affects how much distortion you see at a shallow angle, how predictable the thickness is, how the edges finish, and how the part tolerates cleaners or long service. I keep the comparison simple: cast gives me more margin on demanding jobs, while extruded gives me more efficiency on straightforward ones.
| Criterion | Cast acrylic | Extruded acrylic | Practical takeaway |
|---|---|---|---|
| Visual quality | Less low-angle distortion, so large flat panels look cleaner when viewed from the side. | Still clear, but it is more likely to show distortion on big, flat viewing areas. | Choose cast when appearance is a selling point, not just a requirement. |
| Thickness control | Good, with a wider range of available thicknesses, including stock above 1 inch. | Usually tighter thickness tolerance. | Choose extruded when parts must match closely in repeated production. |
| Surface cleanliness | Good, but the main advantage is usually the overall optical behavior. | Can arrive with less dirt, lint, or particulate contamination in the sheet. | Useful for bright backlit panels and simple displays where surface flaws are easy to see. |
| Machining and edges | Less tendency to melt or chip during machining. | Can be faster to cement and thermoform, but it is less forgiving when heat builds up. | Cast is my default for routing, drilling, and polished edge work. |
| Chemical and load resistance | Slightly better chemical resistance, slightly higher service temperature, and better long-term load handling. | Good general resistance, but not the first pick for harsh cleaners or constant water contact. | Cast is safer where the sheet will live a harder life. |
| Cost and production fit | Usually more expensive and better when the job is specialized. | Usually lower cost and efficient for standard production. | Extruded wins when throughput matters more than premium behavior. |
The short version is that cast buys you margin and extruded buys you efficiency. I do not treat extruded sheet as “cheap acrylic” or cast sheet as “luxury acrylic”; they are different tools, and the right one depends on whether the part will be seen, bent, bonded, cleaned, or loaded. Once that is clear, the fabrication step becomes much easier to plan.
How they behave on the shop floor
Fabrication is where the difference stops being theoretical. The same acrylic family can cut, rout, bond, and form very differently once heat, blade pressure, and solvent contact enter the picture. I usually break the shop-floor decision into cutting and routing on one side, and bending and bonding on the other.
Cutting and routing
Cast sheet is the one I trust more when the part needs heavy routing, drilled holes, polished edges, or cleanly machined corners. A current cast-acrylic fabrication guide recommends sharp carbide tooling and a slow, continuous feed to avoid chipping, and it places circular saw work in the rough range of 8,000 to 12,000 linear feet per minute. I do not treat that as a magic number; I treat it as a reminder that heat control, chip evacuation, and blade sharpness matter more than brute force.
- Keep blades and router bits sharp.
- Do not force the feed if the cut starts to heat up.
- Use clean support under the sheet so vibration does not show up in the edge.
- Test the setup on an offcut before running the full job.
With extruded sheet, the same discipline still applies, but I am even more alert to heat because the sheet is usually chosen for speed and consistency, not for forgiving machine behavior. If the cut starts to smear, gum, or haze, the tool setup is already too aggressive.
Read Also: Plexiglass vs. Glass - When to Choose Acrylic Sheet?
Bending and bonding
This is where extruded sheet often earns its keep. It cements and thermoforms faster, which helps in production work where cycle time matters. For cast sheet, I like the extra fabrication margin when a part will be formed, cleaned, and then left in service for years. When the geometry is curved, I also keep the bend radius generous; a useful reference point is about 180 times the sheet thickness for an unheated curve, and some channel-supported applications use 250 times thickness.
- Use extruded when the build depends on fast solvent bonding or repeat thermoforming.
- Use cast when the formed part must stay visually clean and mechanically stable.
- Do not assume a tighter bend will work just because the sheet is acrylic.
- Let heat do the forming, not pressure from clamps or fixtures.
That is why I never separate material choice from fabrication method. A part that looks affordable at the sheet stage can become expensive if the shop has to fight the material to finish it correctly.
Where each material earns its keep
The easiest way to choose is to match the sheet to the job instead of trying to make one acrylic type do everything. In the US market, I see the same pattern again and again: cast is used when the part is judged by appearance, load, or exposure; extruded is used when the part is judged by repeatability and cost.
| Project type | Better fit | Why it tends to win |
|---|---|---|
| Premium retail displays, museum covers, and presentation panels | Cast acrylic | Less low-angle distortion and a cleaner visual impression. |
| Aquariums, water features, and parts with continuous water contact | Cast acrylic | Better fit for water contact and long-term load handling. |
| Thick custom panels, domes, and specialty glazing | Cast acrylic | Broader thickness range and more fabrication margin. |
| Backlit signs, flat graphics, and point-of-purchase panels | Extruded acrylic | Lower cost and strong thickness consistency for repeatable runs. |
| Large batches of standard flat parts | Extruded acrylic | Faster cementing and thermoforming help production flow. |
| Budget-sensitive replacement panels | Extruded acrylic | Good performance without paying for capabilities the job does not need. |
If the part is bought to impress, I lean cast. If it is bought to repeat, I lean extruded. That sounds blunt, but in practice it is usually the cleanest way to keep material choice aligned with the real business goal.
How I choose the right sheet for a project
When I spec acrylic, I start with the environment, then I move to the fabrication method, and only after that do I look at price. That order matters because the sheet that is cheapest on paper can be expensive once you add polishing time, rework, or a failed installation.
- Ask how the part will be seen. If shallow-angle distortion matters, I favor cast.
- Ask what will touch the sheet. Strong cleaners, solvents, or continuous water contact push me toward cast.
- Ask how the part will be made. Fast thermoforming and solvent cementing favor extruded.
- Ask how much identical stock you need. Repeatable flat parts usually point to extruded.
- Ask whether thickness or color is unusual. Thick stock above 1 inch, custom colors, and lower run quantities usually point to cast.
I also leave room for movement. Acrylic expands and contracts more than glass, so a 48-inch panel can move by almost a tenth of an inch across a 50°F swing. If the mounting holes are too tight or the fasteners are too rigid, the problem will show up later as stress, not during the quote.
That is why I price the whole part, not just the sheet. Labor, rework, and installation risk usually decide the real winner.
The mistakes that create expensive rework
Most acrylic failures are not dramatic. They are small decisions that compound: the wrong sheet type, the wrong clearance, the wrong cleaner, or the wrong heat strategy. Once I started looking at those details early, the repair calls dropped fast.
- Ordering “acrylic” without naming the type. The material label is too vague to support a buildable spec.
- Using extruded sheet where chemistry is harsh. It can work, but it gives you less margin if cleaners or solvents become part of the routine.
- Clamping or bolting the sheet like glass. Acrylic needs expansion space, not rigid restraint.
- Ignoring bend radius. Tight curves are where stress crazing starts to show up later.
- Buying by sheet price only. If the cheaper sheet takes more polishing, more setup time, or more scrap, it is not actually cheaper.
A good rule of thumb is to think about failure before you think about finish. If the part is likely to see heat, cleaners, water, or repeated bending, the wrong sheet will usually reveal itself there first.
The practical difference that matters when you place the order
When I write an acrylic spec, I start with the sheet type, because that one line prevents a lot of confusion later. A better spec does not just say “acrylic”; it says what kind, how thick, how it will be fabricated, and what environment it will live in. That is usually enough to turn a vague request into a buildable part.
- State cast or extruded explicitly.
- Give the nominal thickness and the acceptable variance.
- Call out bending, polishing, laser cutting, solvent bonding, or flame finishing.
- Describe any cleaners, UV exposure, water contact, or chemical contact.
- Ask for a sample if appearance is part of the sale.
In my experience, the cleanest acrylic jobs are the ones where the spec is honest about the load, the cleaning routine, and the finish you actually want. If those three are clear, the cast-or-extruded decision gets much easier, and the finished part usually looks better for longer.
