Carbon fiber 3D printing is not a single process so much as a materials decision with real mechanical consequences. The payoff comes when the part needs more stiffness, better dimensional stability, or higher heat resistance than plain plastic can give, and the printer is set up to handle abrasive composite feedstock properly. This article breaks down the material families, the hardware requirements, the design rules, and the tradeoffs that determine whether the result is a useful engineering part or just an expensive print with a matte finish.
The short version before you choose a spool
- Chopped carbon-fiber filaments usually improve stiffness and dimensional stability more than raw strength.
- Continuous fiber reinforcement is a different tier of performance, but it also means a different machine class and higher cost.
- A hardened nozzle is the safe default, and a 0.6 mm nozzle is often the practical starting point for CF blends.
- Nylon-based composites need dry storage and disciplined drying; moisture is one of the fastest ways to ruin print quality.
- Part orientation, wall count, and load path matter more than most people expect.
- The right material depends on environment: PLA-CF for ease, PET-CF for functional parts, nylon-CF for tougher jobs, PPS-CF for harsh conditions.
What carbon fiber printing actually means
When I talk about carbon-fiber printing, I am usually talking about one of two things: a thermoplastic blended with chopped carbon fibers, or a machine that lays continuous fiber into the part during printing. Those are not interchangeable. Chopped fiber adds stiffness, reduces shrinkage, and gives parts a clean technical look, but it is still mostly a plastic part with filler inside it.
Continuous fiber is closer to a composite layup process. The printer places long fiber tow where the part needs reinforcement, so the load path can be designed into the geometry. That is why continuous fiber systems can produce parts that compete with conventional composite fabrication in the right application, while chopped-fiber filaments are better thought of as engineering plastics with a boost. I start with this distinction because it decides the rest of the project: machine choice, cost, maintenance, and realistic performance targets.
Once that difference is clear, the real question becomes whether the part actually deserves the added complexity.
When the extra stiffness is worth the tradeoff

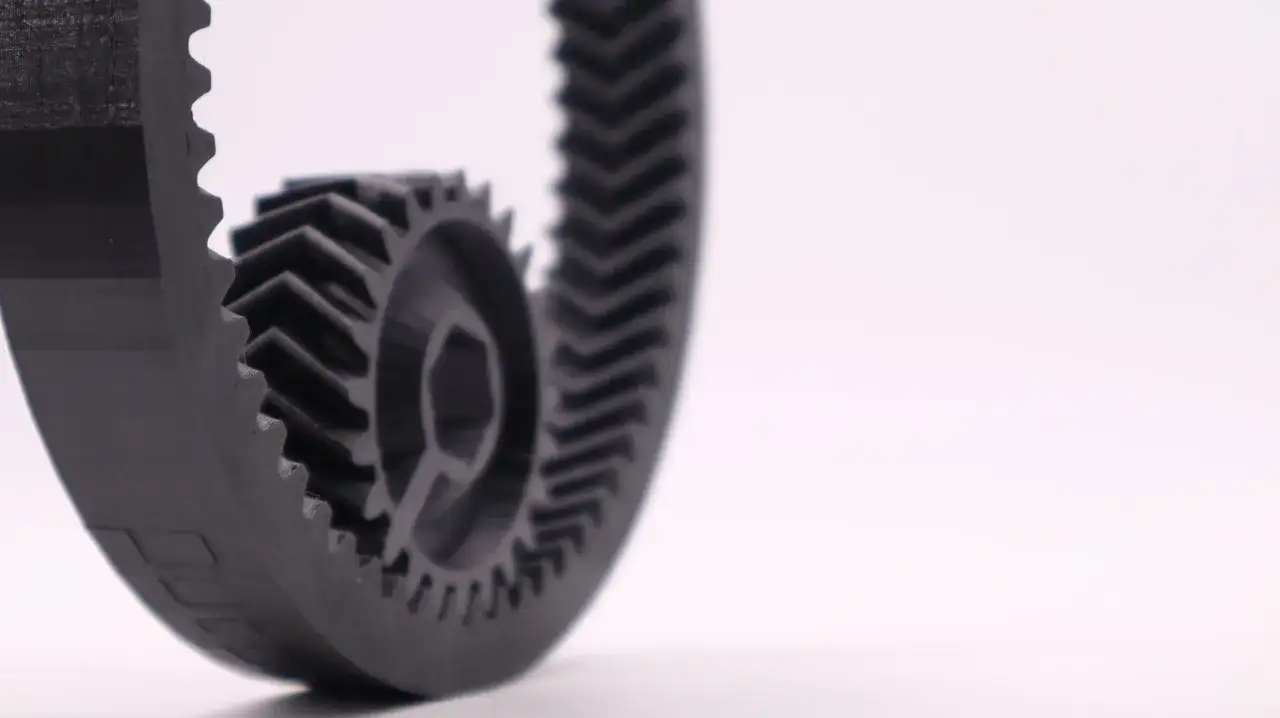

In practice, CF blends are most useful when a part needs to stay straight, hold tolerance, or resist bending under modest-to-moderate load. That is why they show up so often in jigs, fixtures, brackets, drone components, machine covers, robot tooling, and replacement housings. In those roles, the benefit is not just strength. It is the way the part behaves under heat, vibration, and repeated use.
Carbon-fiber-filled materials also help when warping has been the enemy. The low thermal expansion of the fibers can make flat parts print more predictably and stay truer after cooling. That matters in U.S. production environments where speed is often more important than a perfect composite layup, and it is one reason these materials have moved from hobby novelty into serious shop-floor use.
They are not the answer for every functional part, though. If the part needs flex, impact absorption, or a living hinge, the added stiffness can work against you. Carbon-fiber composites are often more brittle than the unfilled base polymer, so I would not reach for them simply because the part sounds “industrial.” I would reach for them when stiffness, accuracy, or heat resistance is the actual problem.
That brings us to the choice that matters most in real projects: the material family itself.
How the main material families differ
As a rough U.S. retail snapshot, entry PLA-CF often sits around $25 to $35 per kilogram, nylon-based CF blends commonly land around the mid-$30s to mid-$40s, and PPS-CF can start above $100 per kilogram. The price spread tells you almost everything about the intended use case.
| Material family | Best for | Main advantage | Main limitation | Typical U.S. price band |
|---|---|---|---|---|
| PLA-CF | Visual prototypes, jigs, fixtures, clean-looking one-off parts | Easy to print, stiff, matte surface, low warp | Limited heat resistance and lower toughness | $25 to $35/kg |
| PET-CF | Functional brackets, housings, light-duty tooling | Good balance of printability, stiffness, and moisture tolerance | Not a substitute for high-temp engineering polymers | $30 to $50/kg |
| PA6-CF or PAHT-CF | Load-bearing parts, machine components, demanding fixtures | Strong, stiff, and better suited to real service loads | Highly moisture sensitive and more demanding to print | $35 to $45/kg for entry grades, higher for premium grades |
| PPS-CF | High-heat, chemically aggressive, industrial environments | Excellent heat and chemical resistance | Expensive and printer-hungry | $100 to $130/kg |
| Continuous fiber reinforcement | Structural parts and metal-replacement applications | Biggest jump in reinforcement and load-bearing capability | Different machine ecosystem and much higher investment | System investment, not just filament cost |
If I had to reduce that table to one decision rule, it would be this: PLA-CF for convenience, PET-CF for functional parts, nylon-CF for serious engineering work, and PPS-CF only when the environment truly demands it. The move to continuous fiber makes sense only when the part is structural enough to justify the machine and workflow change.
With the material sorted, the next bottleneck is usually hardware.
The hardware and print settings that matter most
CF filaments are abrasive. That is not a footnote; it is the first hardware constraint. A hardened steel nozzle is the safe default, and on many systems a 0.6 mm nozzle is a more forgiving starting point than 0.4 mm because it reduces clog risk and handles fiber-filled extrusion more comfortably. Standard brass nozzles and soft feed components wear too quickly for regular composite use.
Drying is the second constraint, especially for nylon-based blends. Moisture shows up as popping, fuzzing, weak layer bonding, rough surfaces, and brittle parts. In real shop use, I treat sealed storage with desiccant as mandatory and not optional. For nylon-CF, drying windows around 80°C for 8 to 12 hours are common; for PET-CF, the window is often lower and somewhat shorter, but the rule is the same: print dry, not “probably dry.”
The third constraint is thermal control. PLA-CF and some PET-CF materials can run on capable desktop machines, but nylon-CF and PPS-CF usually benefit from an enclosure or heated chamber, stronger bed adhesion, and more careful temperature management. The more engineering-grade the base polymer, the more the printer needs to behave like a controlled machine rather than a hobby platform.
Speed matters too, but I would rank it below nozzle choice and moisture control. Slower print speeds usually improve consistency with composite filaments, especially on the first layer and around small features where flow instability shows up fast. Once the hardware is right, the part design starts to matter more than the slicer profile.
Design choices that improve the part more than the filament does
I have seen plenty of parts fail because the geometry ignored the way carbon fibers and layer lines behave. CF-filled parts are still anisotropic, which means they are stronger in some directions than others. The fibers and extrusion path help, but they do not erase the physics of FFF printing.
- Orient the part around the real load path instead of the prettiest face.
- Use more walls before chasing high infill percentages; the shell often carries more useful strength than the core.
- Add fillets around corners, bolt holes, and sharp transitions to reduce stress concentration.
- Keep unsupported spans short, especially on stiff materials that do not like to bend into place.
- Use infill to support volume, not as a substitute for structural design.
For continuous fiber systems, this becomes even more important, because the reinforcement is laid intentionally where the machine can place it. That is powerful, but it also means weak planning is harder to hide. A smart shape will outperform a lazy one every time.
That design discipline also makes the common failure modes easier to spot before they waste a spool.
Where people lose time and money
| Common mistake | What it looks like | Why it happens | Better approach |
|---|---|---|---|
| Printing wet nylon-CF | Stringing, rough surfaces, weak layers | Moisture flashes to steam during extrusion | Dry the spool and store it sealed with desiccant |
| Using a brass nozzle | Inconsistent extrusion and early wear | Abrasive fibers damage soft metal quickly | Move to a hardened nozzle and keep spare wear parts |
| Assuming CF means tougher in every direction | Parts crack despite looking robust | Stiffness rises, but impact behavior may get worse | Match the base polymer and orientation to the load |
| Using infill as the main structure | Walls split before the part feels full | Perimeters and load paths do most of the work | Increase wall count and redesign the geometry |
| Choosing PPS-CF for the wrong job | High cost without a clear payoff | The environment does not justify the material | Step down to PET-CF or nylon-CF when possible |
The biggest pattern here is simple: most bad CF prints are process mistakes, not material failures. If the nozzle is right, the filament is dry, and the part is designed for the load, the material usually performs much better than people expect.
How I would choose the first material for a real part
For a first project, I would choose PLA-CF only if the part is mostly about fit, appearance, and modest stiffness. It is the easiest way to learn the material behavior without fighting heat management or moisture too early. For a shop fixture, a lightweight bracket, or a prototype that needs to stay flat, that is often enough.
If the part is genuinely functional, PET-CF is the next step I would consider. It is usually the better compromise when you want more durability than PLA-CF but do not want to jump straight into nylon’s drying and enclosure demands. For load-bearing parts, moving assemblies, or components that will live in a warmer environment, nylon-CF becomes the more serious option. PPS-CF and continuous fiber reinforcement are the right answer only when the part, not the marketing, truly demands that level of performance.
The practical lesson is that composite printing works best when material, geometry, and machine capability are treated as one system. That is the mindset I would use on any production-minded project: pick the lightest solution that still meets the load, then give the printer the conditions it needs to succeed.
