3D printing is no longer just a presentation trick in architecture. I use it for fast concept models, presentation pieces, custom components, and, in select projects, wall systems or formwork that would be slow or wasteful to fabricate by hand. This article explains how to use 3d printing in architecture in practical terms: where it adds value, which materials and printers fit each job, how the workflow actually runs, and where the method still has hard limits.
The real value is in matching the print to the problem, not in printing for its own sake
- Best near-term uses: concept models, facade studies, connectors, molds, and limited structural components.
- Most of the value comes from one of four wins: faster iteration, lower waste, custom geometry, or reduced on-site labor.
- Small and large prints behave differently: desktop machines reward detail; construction printers reward speed and repeatability.
- Geometry quality matters more than software brand: clean meshes, sane part splits, and realistic tolerances decide most outcomes.
- Full-scale prints still need conventional trades: reinforcement, MEP, finishes, fire review, and inspections do not disappear.
Where 3D printing fits in an architectural workflow
I split architectural 3D printing into three layers: visual, functional, and structural. That lines up with Autodesk's broad view of the field, but I find the practical test even simpler: does the print help me explain a design, prove a detail, or build part of the project itself?
| Use case | What it is good for | Main limitation |
|---|---|---|
| Concept and massing models | Testing overall form, context, daylight, and client communication | Fine detail is wasted if the scale is too small |

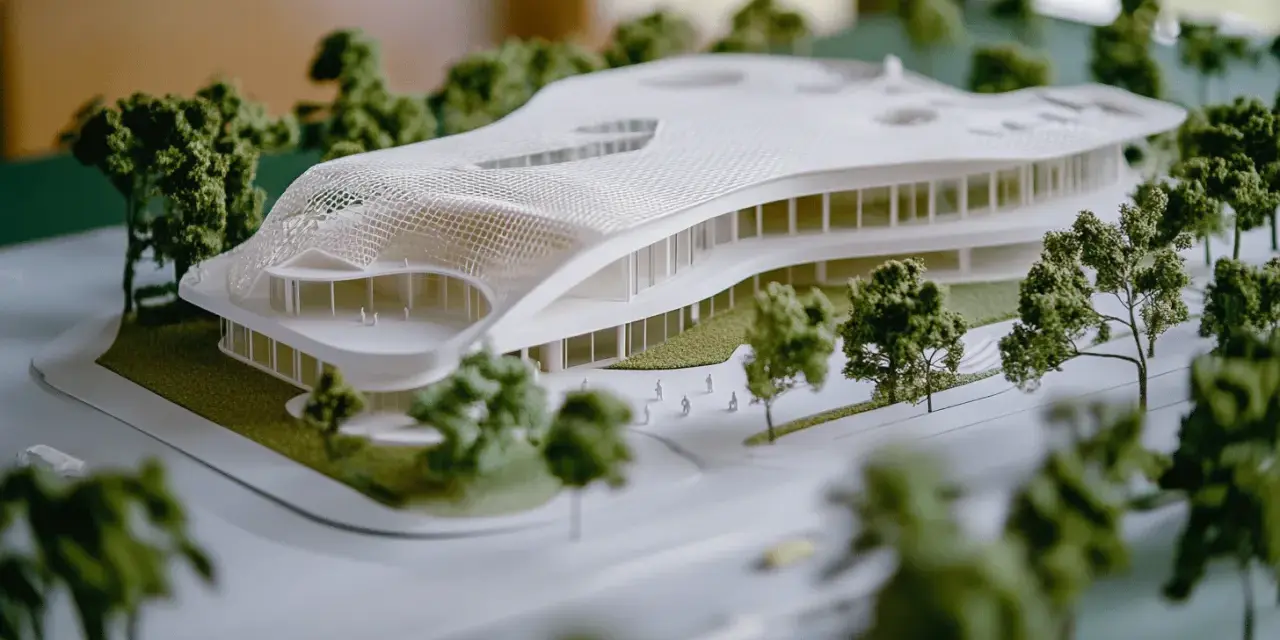

| Presentation models | Sharper surfaces, cleaner edges, and a more finished look than hand-built mockups | Post-processing can take longer than the print itself |
| Facade and interior studies | Checking rhythm, depth, joints, shadow lines, and material transitions | Small tolerance mistakes become very visible |
| Molds, formwork, and jigs | Making repeatable shapes that would be awkward or slow to mill by hand | Tooling has to survive the load, heat, or abrasion of the real process |
| Custom building components | Unique brackets, connectors, screens, diffusers, and decorative elements | Needs a clear plan for assembly, finish, and code compliance |
| Walls and shell elements | Reducing labor on selected projects and enabling fast, repeatable geometry | Approvals, reinforcement, weather, and finishing remain real constraints |
The point is not to force every project into the same category. I get the best results when I choose the smallest print that can answer the real design question, then move up only if the first test proves useful. Once that is clear, the next challenge is getting the file out of the screen and into the printer cleanly.
The workflow from digital model to printed part
The workflow looks simple until you run it on an actual project. For a small model, I want a clean mesh and a slicer setup that respects fragile edges; for a site print, I care about tool paths, nozzle behavior, curing, and weather windows. A slicer, for context, is the software that turns the model into layer-by-layer instructions.
- Define the job before you model. Decide whether you are printing to communicate form, test assembly, make tooling, or build a real element. That decision changes the scale, material, and accuracy target.
- Clean the CAD or BIM file. Remove tiny features that will vanish at print scale, close gaps, simplify surfaces, and export only the geometry the printer actually needs.
- Split the model with assembly in mind. Large parts need seams, transport limits, and hidden joints planned early. I prefer to place splits where a shadow line, corner, or cladding joint can hide them.
- Choose the printer and material together. A beautiful form can still fail if the material is too brittle, too rough, too slow, or too expensive for the job.
- Set print parameters deliberately. Layer height, infill, shell count, nozzle size, speed, and support strategy all affect strength and finish. CAM, or computer-aided manufacturing, is the stage where those tool paths are defined for the machine.
- Run a test before committing. A small calibration piece can reveal fit problems, seam issues, or warping long before the full print starts.
- Post-process and assemble. Sanding, priming, painting, sealing, and mechanical fastening are often part of the job, not afterthoughts. On larger prints, pumping, curing, and inspection can matter more than the actual deposition time.
In studio work, the digital file usually gets you most of the way there; on a real site, the process is only as strong as the calibration behind it. That is why material and printer choice matter so much, which brings me to the next decision.
Choose the printer and material to match the scale you actually need
I think of the machine as a means, not a strategy. If the output is a presentation model, I care about resolution and surface quality; if the output is a wall section, I care about structural behavior, cure time, and job-site logistics. The wrong material can make a perfect geometry look bad, and the wrong printer can make a simple geometry expensive.
| Technology or material | Best use in architecture | Why I choose it | Main trade-off |
|---|---|---|---|
| FDM/FFF filament printers with PLA, PETG, or ABS | Massing models, quick mockups, and fit checks | Cheap, fast, accessible, and easy to reprint | Visible layer lines and limited surface finish |
| SLA/DLP resin printers | Presentation models, detailed facades, and crisp interior fragments | Sharp detail and smooth surfaces | Brittleness and extra wash-and-cure steps |
| SLS nylon | Clips, joints, small functional assemblies, and parts that need toughness | No support structures and good functional strength | Higher cost and powder cleanup |
| Clay or ceramic extrusion | Expressive prototypes, tactile facade studies, and material research | Material character and a very architectural surface language | Shrinkage, drying, and firing limits |
| Large-format cementitious extrusion | Walls, shells, and other site-scale elements | Speed and lower waste on the right projects | Permits, reinforcement, and finishing still shape the result |
For architecture, I usually separate the choices into detail printers and construction printers. The first group is about communication and fit; the second is about labor, waste, and repeatability. Once you see that split, the design rules become much easier to apply.
Design rules that prevent the most common print failures
Most failed architectural prints are geometry failures, not machine failures. I see the same problems repeatedly: features that are too fine for the scale, unsupported overhangs, and parts that were never designed to come back together after printing.
| Failure mode | What it looks like | How I avoid it |
|---|---|---|
| Detail that is too fine | Blurred windows, soft edges, or missing texture | Simplify the model or increase the scale |
| Walls that are too thin | Breakage during removal or handling | As a rough FDM rule, keep walls at least 2 to 3 nozzle widths thick |
| Unsupported overhangs | Support scars, drooping edges, and cleanup labor | Rotate the part, add chamfers, or redesign the geometry |
| Bad part splits | Visible seams in the wrong place | Move seams to corners, shadow lines, or cladding joints |
| Material shrinkage or warping | Misfit between parts or a base that lifts from the bed | Test the material first and leave room for expansion or contraction |
| Assuming the print is structural by default | Unsafe expectations about load-bearing performance | Engineer the final assembly separately and verify it under local code |
In the U.S., I would treat fire performance, structural signoff, and inspection strategy as part of the brief from day one. The earlier you involve those constraints, the less likely the print is to become an expensive prototype that cannot be approved or installed. That is also the reason time and cost have to be read carefully, not optimistically.
Time and cost depend on whether you are saving labor, waste, or iteration
The numbers are easy to misread. A small print may cost very little in material and still be expensive if the finishing labor is heavy; a large printed shell may look fast on a stopwatch and still take weeks once foundations, reinforcement, utilities, and finishes are included. I judge the method by the bottleneck it removes, not by the printer's headline speed.
| Project type | Where printing saves time | When it does not pay off |
|---|---|---|
| Concept models | Rapid iteration and easier design review | When the form is simple enough to cut by hand faster |
| Presentation models | Complex geometry and more consistent detail | When the model needs so much cleanup that the labor wipes out the gain |
| Molds and formwork | Repeatable shapes and hard-to-machine negative forms | When the mold is a one-off and the setup work is too high |
| Wall and shell printing | Reduced on-site labor and less material waste | When approvals, weather, or finishing erase the schedule benefit |
Public project examples show why people pay attention: one 95 square meter housing project was printed in 54 hours. I use that figure as a signal, not a promise. It describes the print itself, not the full building package, because site prep, structural reinforcement, waterproofing, inspections, and interior trades still consume real time.
For repeated parts, the economics improve quickly because the setup work is spread across many copies. For one-off pieces, the savings usually come from geometry that would be hard to mill, cast, or assemble conventionally. That is why 3D printing often makes the most sense when the design is unique but the production steps can be standardized.
The first prints I would run in a real office
If I were introducing this into a studio, I would not begin with a house. I would start with small, low-risk prints that prove the workflow and expose the weak points before the project gets expensive.
- A massing model at 1:500 or 1:200. This tests model cleanup, orientation, and whether the geometry reads clearly at a distance.
- A facade corner or interior junction at 1:20. This tells me whether joints, tolerances, and surface quality are good enough for real design review.
- A functional connector, clip, or mold segment. This is where 3D printing starts paying for itself, because the piece has to fit and work, not just look good.
- Only then a larger wall section or shell prototype. By this point, the team knows how the printer behaves, where the seams land, and how much post-processing the part really needs.
The teams that benefit most are the ones that treat additive manufacturing as a controlled fabrication method, not a novelty. If the geometry is unique, the schedule is tight, or the form is expensive to make conventionally, the technology earns its place. In 2026, that is the practical sweet spot: print the parts that change the project, and let conventional methods handle the rest.
