Acrylic, often sold as plexiglass, gives a rare mix of clarity, stiffness, and weather resistance. The catch is that its strength depends on which kind of load you mean: tension, bending, impact, or surface wear. In this article I break down plexiglass strength in practical terms, show the numbers that matter, and explain how to design around the material’s real limits.
The numbers that matter before you choose acrylic
- Standard acrylic is strong and rigid, with tensile strength around 72-80 MPa, but it is not a high-impact plastic.
- Impact-modified grades trade some stiffness for better break resistance and are the right choice when the sheet will be handled or hit.
- UV stability is one of acrylic’s best strengths, which is why it performs well outdoors when the installation is designed correctly.
- Scratching, solvent attack, and stress at holes or edges usually cause more trouble than the base material itself.
- For repeated impact or abuse, polycarbonate still wins; for clarity, weathering, and appearance, acrylic often offers the better balance.
What acrylic strength really means
When I talk about acrylic strength, I separate it into four different questions. Tensile strength is how much pulling force the sheet can take before it breaks. Flexural strength describes resistance to bending. Impact resistance tells you how it behaves when something hits it. Surface hardness is a different issue again, and it controls how easily the sheet scratches, hazes, or picks up wear marks.
That distinction matters because acrylic can look excellent in one test and still fail in service for a completely different reason. A panel may be stiff enough for a display, yet still crack from an over-tightened screw or a solvent cleaner. In other words, the material is only half the story; the load path and the installation details finish the job.
I also like to keep one word in mind here: crazing, which means the fine crack network that appears when acrylic is stressed and then attacked by a bad chemical, a sharp corner, or a poor fastening detail. Once you understand those failure modes, the numbers start to make more sense. That leads directly to the actual performance ranges you can expect.
Typical strength values for standard and impact-modified sheets
According to PLEXIGLAS technical information, standard GS and XT grades sit around 72-80 MPa tensile strength at room temperature and roughly 105-115 MPa flexural strength, while impact-modified Resist grades give up some stiffness in exchange for much better break resistance. Trinseo notes that certain impact-modified PLEXIGLAS grades deliver 7x to 10x the impact resistance of standard acrylics, which is the kind of change that matters when a panel is exposed to handling, vibration, or accidental knocks.
| Grade family | Tensile strength | Flexural strength | Impact behavior | What it usually suits |
|---|---|---|---|---|
| Standard cast or extruded acrylic | About 72-80 MPa, or 10,400-11,600 psi | About 105-115 MPa, or 15,200-16,700 psi | Moderate; good for general use, not for abuse | Displays, glazing, light covers, signs |
| Impact-modified acrylic | About 40-60 MPa, or 5,800-8,700 psi | About 69-95 MPa, or 10,000-13,800 psi | Much higher break resistance; some grades are far tougher than standard sheet | Guards, transport parts, booth panels, outdoor protection |
The practical trade-off is simple. Standard acrylic usually feels more rigid and polished, which is why it works well in visible architectural and display work. Impact-modified sheet is the better pick when the panel might be bumped, shipped, installed in a busy area, or exposed to repeated contact. In my experience, this is where many projects are under-specified: people ask for “stronger acrylic” when what they really need is the right balance between stiffness and toughness.
The next question is why two sheets with similar thickness can behave so differently in the real world.
Why thickness and fabrication change the real result
Thickness raises load capacity and lowers deflection, but it does not change the material into something fundamentally different. A thicker sheet can carry more bending load, yet a poorly cut edge, a tight hole, or an over-clamped fastener can still become the weak point. That is why I never treat thickness as a magic fix.
Two fabrication choices matter more than most buyers expect. First, the edge quality: rough saw marks, micro-chips, and sharp internal corners act like stress concentrators. Second, the mounting method: acrylic moves with temperature far more than metal, so rigidly trapping the sheet is a common mistake. If the panel cannot expand and contract, the stress shows up as cracking or crazing instead of as visible movement.
There is also a bending limit to respect. The manufacturer data for PLEXIGLAS sheets shows very large minimum cold-bending radii, which is another way of saying that acrylic should not be forced into tight bends at room temperature. If a design needs a sharper radius, thermoforming is usually the cleaner route because it reduces residual stress and gives a more stable result.
For durable fabrication, I usually follow a short list:
- Round or chamfer corners instead of leaving sharp internal notches.

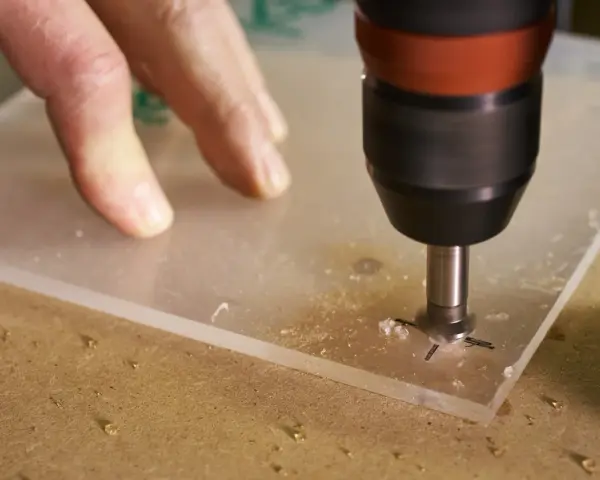

- Deburr cut edges and keep drilled holes smooth and clean.
- Use washers or bushings to spread clamp load.
- Allow expansion with slotted holes where the panel is fixed at multiple points.
- Avoid solvent-based cleaners and unknown adhesives unless they are proven compatible.
Once you see where acrylic really fails, the comparison with glass and polycarbonate becomes much clearer.
How acrylic compares with glass and polycarbonate
Acrylic is often chosen for glazing and visible panels because it combines clarity, light weight, and good weather resistance. But it is not the strongest material in every category. Glass is harder and resists scratching better, while polycarbonate is usually the better answer when impact is the primary concern.
| Material | Main strength | Main weakness | Best use case |
|---|---|---|---|
| Glass | Excellent surface hardness and scratch resistance | Brittle; can fail suddenly and sharply | Places where impact risk is low and scratch resistance matters most |
| Acrylic | Good rigidity, clarity, UV stability, and weathering performance | Scratches more easily than glass and is less impact-tough than polycarbonate | Outdoor panels, displays, signage, architectural glazing, light guards |
| Polycarbonate | Very high impact toughness | Scratches more easily and typically needs more surface protection | Security glazing, machine guards, abuse-prone installations |
My rule of thumb is straightforward: if the panel must stay visually clean outdoors and the main risk is weather, acrylic usually makes sense. If the main risk is impact, vandalism, or repeated abuse, polycarbonate is usually the safer choice. Glass still has a place, but only when its scratch resistance matters more than its brittleness. That decision logic points directly to where acrylic is genuinely strong, and where it is the wrong material.
Where acrylic performs best and where it does not
Acrylic performs best when the job asks for clarity, stiffness, UV stability, and a refined surface. That is why it shows up so often in signage, display cases, museum glazing, light diffusers, outdoor covers, partitions, and architectural panels. For those applications, it offers a better long-term appearance than many cheaper plastics.
It is a weaker fit when the installation faces repeated impact, rough handling, concentrated loads, or aggressive chemistry. Standard acrylic is not the first material I would specify for machine guarding in a high-abuse environment, and I would not treat it as security glazing. It also needs extra caution near solvents, chlorinated cleaners, ketones, and ester-based products because those can attack the sheet and start surface damage or cracking.
For outdoor use in the United States, acrylic is often a smart choice because the whole sheet is UV-stable rather than depending on a thin surface layer. That stability is one reason it keeps looking good for years instead of turning cloudy or yellow. Still, UV stability is not the same as impact toughness, so I always separate those two questions before I choose a grade.
That leads into the most practical part of the topic: how to specify a sheet that lasts instead of one that just looks good on day one.
How to specify a longer-lasting acrylic panel
If I were choosing acrylic for a real project, I would start with the load, then work backward to the grade, thickness, edge treatment, and mounting method. The biggest mistake is choosing sheet thickness first and assuming everything else will follow. In practice, support conditions matter almost as much as the sheet itself.
| Application | Reasonable starting thickness | Notes |
|---|---|---|
| Small indoor signs or covers | 3-4.5 mm, or 1/8-3/16 in | Works when the span is short and the panel is framed well |
| Framed panels or light guards | 6 mm, or 1/4 in | A common baseline for display and protective work |
| Larger guards or outdoor signs | 9-12 mm, or 3/8-1/2 in | Usually needs better support and movement allowance |
| Heavy-duty glazing or demanding installations | 19 mm and up, or 3/4 in+ | Must be engineered for span, load, and fastening detail |
That table is a starting point, not a code book. For any panel with wind load, impact exposure, or safety requirements, the final thickness should be based on the actual span, the support pattern, and the relevant standard. I would also ask for the right grade up front: standard acrylic for clean appearance and stiffness, impact-modified acrylic for better break resistance, or coated acrylic when wear and cleaning are part of the job.
The other detail I would never ignore is surface protection. A hard-coated acrylic can be a better long-term choice in high-touch areas because abrasion, not bulk strength, is often what ruins the finish first. That is the kind of design choice that keeps a project looking good well after installation.
The practical bottom line for durable acrylic design
Acrylic is strong, but its strength is selective. It does very well in tension, bending, outdoor exposure, and visually demanding applications. It does less well under sharp impact, tight fastening, solvent abuse, and careless fabrication. If you design with those limits in mind, the material is dependable and long-lasting.
For me, the decision comes down to this: choose standard acrylic when clarity and weatherability matter most, choose impact-modified acrylic when the sheet needs more break resistance, and move to polycarbonate when impact dominates everything else. That is the cleanest way to match material behavior to real-world use, and it is the difference between a panel that merely survives installation and one that performs for years.
