High-density polyethylene sits in a practical middle ground: tougher and stiffer than low-density polyethylene, but far from brittle. I’m focusing here on what HDPE flexibility means in real parts, how thickness and grade change the feel, and where the material works best in fabrication. That matters whether you are choosing sheet, pipe, or a molded component, because the same resin family can behave very differently once geometry enters the picture.
What HDPE flexibility means in practice
- HDPE can bend and recover, but it is usually more rigid than LDPE and less drapey than true flexible plastics.
- Grade, density, crystallinity, thickness, and temperature can change the feel more than the material name itself.
- Materials databases show a wide property spread, which is why one HDPE part may feel board-stiff while another feels much easier to bend.
- Pipe-grade HDPE is designed for controlled bending and field installation, while thick sheet and boards resist bend more strongly.
- The most common mistakes are overbending, ignoring creep, and assuming all HDPE grades behave the same.
HDPE is flexible, but it is not soft
I usually describe HDPE as conditionally flexible. It will flex before it fails, and it can handle impact, vibration, and moderate bending, but it does not drape like a film or behave like an elastomer. That is why a jug wall, a pipe wall, and a cutting board can all be HDPE while feeling like three different materials in your hand.
The practical takeaway is simple: flexibility in HDPE is not just a material property, it is a product-level behavior. Wall thickness, part shape, and load direction often matter as much as the resin itself. Once you think about it that way, the rest of the selection process becomes much easier. That leads straight into the factors that make one HDPE part feel supple and another feel almost board-stiff.
What makes HDPE bend differently from grade to grade
HDPE is a semicrystalline thermoplastic, which means part of its structure is orderly and part is not. More crystallinity usually brings more stiffness and higher resistance to bending; less crystallinity, or a formulation designed for impact, usually gives more give. Materials databases such as MatWeb show just how broad the spread can be: HDPE flexural modulus ranges from roughly 40,000 to 270,000 psi across reported grades, and elongation at break can vary from a few percent to well over 2,000% depending on formulation and test method.
Crystallinity and density
Higher density usually means the chains are packed more tightly, which increases stiffness and reduces easy bending. That is useful when the part must hold shape, but it also means you should not expect a high-density grade to behave like a soft liner or flexible film.Thickness and geometry
A thin HDPE sheet can flex in your hands, while a thicker plate of the same resin resists bending and springs back harder. Ribbing, curved shapes, and long unsupported spans all change the way force travels through the part. In practice, geometry often explains more of the “is it flexible?” question than the polymer name itself.
Read Also: ABS Plastic - Uses, Benefits, and When to Avoid It
Temperature and load
HDPE generally feels stiffer when it is cold and more forgiving when it is warm. Constant loads also matter because the material can creep, which means it slowly deforms over time instead of failing all at once. That is why a part that bends cleanly during installation can still sag or distort later if the design leaves it under steady stress.
Once those three variables are clear, the next useful step is comparing HDPE with the plastics people most often consider as alternatives.
How HDPE compares with LDPE, polypropylene, and PVC
When flexibility is part of the decision, I compare HDPE against the material's actual job, not against a generic label like “plastic.” The right answer often comes down to whether you need more bend, more stiffness, more impact resistance, or a balance of all three.
| Material | Flexibility feel | What it is good at | Main tradeoff |
|---|---|---|---|
| HDPE | Moderate; bends better than rigid plastics but still feels firm | Pipe, tanks, marine parts, cutting boards, durable outdoor components | More springback and creep than many engineers expect |
| LDPE | High; softer and more pliable | Films, bags, squeeze-style packaging, low-stress flexible parts | Lower stiffness and lower load-bearing capability |
| Polypropylene | Moderate, often stiffer in feel | Living hinges, molded housings, containers, automotive trim | Can be less forgiving in cold-impact situations |
| PVC | Depends on formulation; can be rigid or flexible | Pipe, cable jackets, flooring, flexible sheet when plasticized | Flexible PVC is a different formulation story, not the same as rigid PVC |
The important distinction is this: HDPE is rarely the most flexible option, but it often gives the best balance of bendability, chemical resistance, and toughness. Once that balance matters more than pure softness, HDPE starts to look a lot more attractive. That balance shows up clearly in the products it is actually chosen for.
Where HDPE's flexibility helps in real products
In real fabrication work, HDPE earns its keep when a part must survive motion, impact, or rough handling without turning brittle. I see that in several common applications:

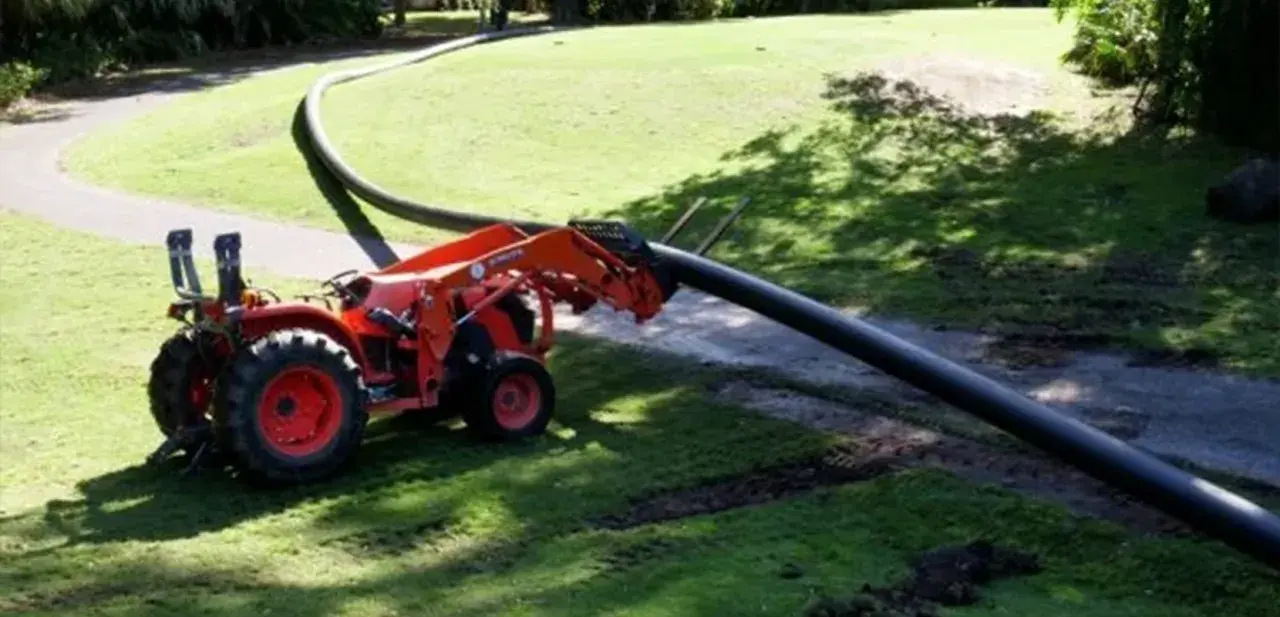

- Pipe and conduit - long runs can tolerate gentle curvature, which reduces the number of fittings and helps installation over uneven terrain.
- Tanks and liners - the material handles vibration, slosh, and handling stress better than a more brittle plastic would.
- Outdoor and marine parts - bumpers, dock hardware, and guard surfaces benefit from a material that flexes a little instead of chipping.
- Orthotic and support components - some HDPE grades are chosen because they are stiff enough to hold shape but still forgiving enough to wear comfortably.
- Packaging and containers - blow-molded jugs and bottles rely on controlled deflection, not on drape, but that deflection is often exactly what prevents cracking.
The theme across all of these examples is controlled movement. HDPE is valuable when the design needs the part to give a little, absorb energy, and return to shape without looking fragile. That advantage disappears quickly if the part is asked to bend too sharply or too often, which is where the common mistakes start.
Where designers get into trouble
Most HDPE problems come from expectations, not from the resin itself. The three failures I see most often are overbending, underestimating creep, and choosing the wrong grade.
- Assuming every HDPE grade behaves the same - pipe grade, sheet grade, and recycled blends can feel noticeably different.
- Confusing flexibility with toughness - a part may resist impact well and still be too stiff for the bend you want.
- Ignoring cold temperatures - a part that feels forgiving in a shop can become noticeably stiffer outdoors.
- Expecting adhesives to solve everything - HDPE is not a friendly adhesive substrate, so mechanical fastening or welding is often the cleaner route.
- Thermoforming without enough control - the material can be formed, but it is not the easiest plastic to shape when you want tight dimensional accuracy.
That last point is worth stressing. HDPE is easy to fabricate and weld, but it is not a forgiving material when the process window is sloppy. If you need a crisp bend, I would rather design for the bend than try to force the bend after the fact. A Plastics Pipe Institute guide makes a similar point for pipe, describing HDPE as flexible and ductile rather than brittle, which is exactly why it works so well in long runs but still needs respect at the bend radius. Once you accept those limits, the selection process gets much cleaner.
How I would specify the right HDPE grade
When I’m matching HDPE to a job, I ask for the properties that predict real bending behavior, not just the resin name. If the supplier can give me the numbers below, I can usually tell whether the part will behave the way the design expects.
| Property | Why it matters | What I look for |
|---|---|---|
| Flexural modulus | Shows bending stiffness | Lower values for easier bending; higher values for load-bearing parts |
| Elongation at break | Shows how far the material can stretch before failing | Higher values usually mean more tolerance, but not necessarily softness |
| Impact strength | Shows resistance to sudden blows | Important for outdoor, handled, or rough-service parts |
| Environmental stress crack resistance (ESCR) | Shows how well the resin resists cracking under load and chemicals | Critical for containers, pipe, and parts under constant stress |
| Service temperature | Flexibility shifts with temperature | Make sure the part works in the actual environment, not only at room temperature |
| UV stabilization | Outdoor exposure can age the surface and reduce durability | Needed for exterior components, especially in U.S. sun exposure |
If the part needs to bend repeatedly, I would usually start with a grade intended for that geometry instead of trying to force a stiff sheet to behave like a flexible one. If the part only needs occasional deflection, HDPE can be a strong choice because it balances toughness, moisture resistance, chemical resistance, and easy fabrication. The key is to decide whether you need compliance, recovery, or shape retention most of all.
What I would remember before choosing HDPE
HDPE is flexible in a useful, engineering sense, but it is not the softest choice on the shelf. It works best when you want a part that can bend a little, survive impact, resist chemicals, and keep its shape after real-world use.
My rule of thumb is simple: match the grade to the geometry, then verify the bend in the actual part. That approach prevents most mistakes, especially when the design is sensitive to thickness, temperature, or long-term loading. If you treat HDPE as a controlled-flex material rather than a truly soft plastic, you usually end up with a better part and fewer surprises.
