Understanding how a sheet handles ultraviolet light matters more than the generic label “clear plastic.” The phrase uv transparent plastic usually points to a material that lets UV through without giving up visible clarity, and that distinction affects everything from lab optics to greenhouse glazing. In practice, the right choice depends on wavelength, thickness, additives, and the environment around the part. This guide focuses on the materials that actually work, the limits they carry, and how I would select one for a real application.
The fastest way to judge a UV-transmitting plastic is by wavelength, not by appearance
- UVA, UVB, and UVC are different problems. A material that works at 390 nm may fail completely at 254 nm.
- Standard acrylic is not the same as UV-transmitting acrylic. Ordinary PMMA usually blocks shorter UV, while UVT grades are formulated for near-UV work.
- COC is strong in the near-UV. It is often used in diagnostics, cuvettes, and microfluidics because it combines optics with low autofluorescence.
- FEP and ETFE stand out in film form. They are useful when you need UV passage plus weathering or chemical resistance.
- Thicker is not better for UV throughput. Thickness, coatings, stabilizers, and colorants can change the transmission curve as much as the resin itself.
What makes a plastic truly UV-transparent
A plastic is only UV-transparent if its chemistry and structure let a meaningful amount of ultraviolet energy pass at the wavelength you care about. That sounds obvious, but it is where many projects go wrong: a sheet can look perfectly clear in visible light and still block most of the UV band. When I specify a material, I start with the target wavelength first and the resin family second.
The UV range is usually split into three bands: UVA at 315-400 nm, UVB at 280-315 nm, and UVC at 100-280 nm. Those bands behave very differently in plastics. Additives, UV stabilizers, pigments, flame retardants, and even surface coatings can all alter the path of light through the part. Thickness matters too, because the same polymer can look acceptable in a thin film and fail in a thicker sheet.
That is why “clear” is not the same thing as “UV-transmitting.” Clear only tells you that visible light can pass. UV work needs a spectrum, not a promise. Once that distinction is clear, the material shortlist gets much shorter and more useful.
Which materials actually deserve consideration
If I were shortlisting materials today, I would separate them by how they behave in the UV range rather than by how familiar they sound. The table below is the fastest practical comparison.
| Material | Typical UV behavior | Why it is used | Main limitation | Best fit |
|---|---|---|---|---|
| Standard acrylic (PMMA) | Usually passes the long-UVA edge and visible light; most grades do not pass UVC | Excellent clarity, easy fabrication, good general-purpose optics | Not the right choice when short-wave UV transmission is required | Display windows, glazing, non-UV optical covers |
| UV-transmitting acrylic | Can transmit down to about 260 nm; some grades show around 80% transmission at 300 nm | Familiar processing, good clarity, useful for UVA and UVB work | Grade-specific; you must verify the actual spectral curve | UV lamps, tanning equipment, specialty optical sheets |
| COC | Strong near-UV performance; some grades are selected where transmission below 300 nm is needed | Low autofluorescence, low extractables, dimensional stability | Less commodity-like than acrylic, so sourcing is more specific | Cuvettes, diagnostics, microfluidics, analytical devices |
| FEP film | High transmittance of UV and visible light in thin film form | Flexible, chemically inert, good weatherability, easy to fabricate as film | Best as a film or thin section, not a rigid structural sheet | UV windows, liners, protective films, lab and industrial covers |
| ETFE film | Very good transmission across the UV range, especially in architectural film form | Weather resistance, durability, high light passage | More of a building-film material than a precision optical plastic | Greenhouses, skylights, façades, daylighting systems |
| UV-protected polycarbonate | Usually engineered to block UV rather than transmit it | High impact resistance and strong outdoor durability | Wrong default when the goal is UV passage | Protective glazing, shields, outdoor enclosures |
The pattern is simple: acrylic and COC are usually the first serious candidates for optical UV work, while FEP and ETFE become more interesting when you need a film, a flexible window, or strong outdoor durability. The next question is how far into the UV range you actually need to go.
How I match the material to the UV band
I do not choose a material by brand name when the wavelength is the real requirement. I choose by band, then by environment, then by fabrication method. That keeps the project grounded in physics instead of brochure language.
UVA and near-UV
For UVA and near-UV, UV-transmitting acrylic is often a practical starting point because it combines clarity with familiar machining and thermoforming. COC is also attractive here, especially when low autofluorescence matters. That makes it a better fit for diagnostics, sensor windows, and lab hardware where optical noise is a problem.
UVB
UVB is where material choice gets more specific. If the application needs a controlled amount of UVB through the part, I would look for a verified UVT acrylic or a suitable COC grade and compare the actual transmission curve at the sheet thickness I plan to use. This is also the band where thickness starts to matter fast, because a material that looks acceptable in a thin sample may lose performance in a thicker panel.
Read Also: HDPE Flexibility - Is it Truly Flexible? Find Out!
UVC
UVC is the hardest case. At this point, I stop trusting general claims and look for a measured transmission curve at the exact wavelength, whether that is 254 nm, 265 nm, or another source line. Some fluoropolymer films perform well enough for specialized uses, but the design margin is much tighter. If a supplier cannot show a curve, I treat the part as unverified.
In short, the shorter the wavelength, the more important the test data becomes. That brings us to the part most spec sheets underplay: fabrication and service conditions can change the answer as much as the resin itself.
Design and fabrication limits that change the result
In optical plastics, the real-world part is often less forgiving than the laboratory sample. I care about four things in particular:
- Thickness. UV transmission is not linear across every material. Compare the same thickness you intend to buy, not a thinner reference sample.
- Additives and coatings. UV stabilizers can improve weathering but reduce transmission. That tradeoff is common in outdoor-grade sheets.
- Heat and forming. PMMA is easy to thermoform, FEP can be heat sealed or welded, COC is strong in precision molding, and ETFE is usually handled as a film-based system.
- Optical side effects. For lab work, I watch haze, birefringence, and autofluorescence, because each one can distort a measurement even if the sheet looks clear to the eye.

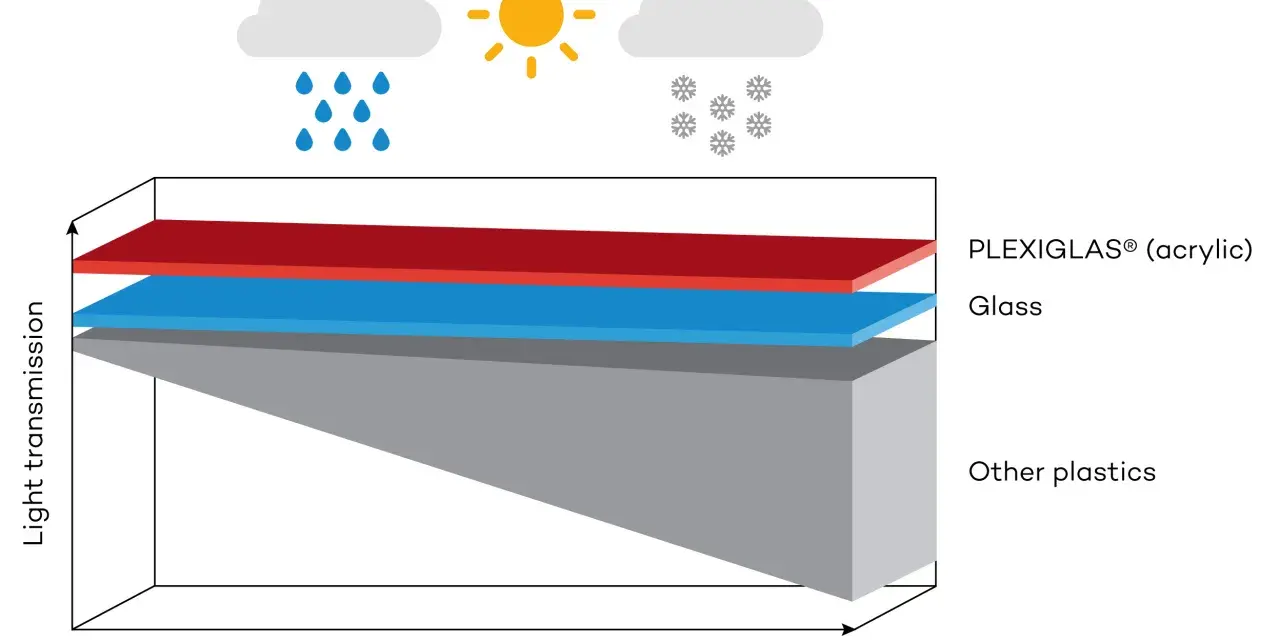

There is also a durability question. Standard acrylic can be a good optical material, but it is not the same as a UV-resistant outdoor glazing product, and it is definitely not the same as a UV-protective polycarbonate panel. If the part is going outdoors, the choice is not just about passing UV; it is also about whether the material keeps its transmission over time.
That is the line I draw in practice: transmission is the first requirement, but retention is what decides whether the part still works after exposure. Once that is understood, the application examples become much easier to read.
Where these materials make sense in practice
The best use cases are the ones where the material solves more than one problem at once. Here is how I usually think about the main categories:
- UV cuvettes and diagnostic parts. COC is especially valuable here because near-UV transmission, low autofluorescence, and dimensional stability all matter at the same time.
- Specialty lighting and tanning equipment. UV-transmitting acrylic is a common choice when the design needs a rigid, clear window that passes UVA or UVB.
- Greenhouses and architectural daylighting. ETFE film is a strong candidate because it combines high light passage with weather resistance and long service life.
- Protective film windows and liners. FEP film is useful when chemical inertness and UV passage need to live in the same part.
- Sensor covers and optical housings. PMMA or COC may be the cleaner choice when clarity, stiffness, and manufacturing precision matter more than impact abuse.
The common thread is that the material is selected for the job, not for the category. A greenhouse does not need the same optical behavior as a lab plate, and a lab plate does not need the same weathering profile as an architectural film. The wrong assumption here usually costs time, not just performance.
The checks I would run before approving a sheet
When a project depends on UV transmission, I run a short checklist before I sign off on the material. It saves a lot of debugging later.
- Ask for the transmission curve at the actual wavelength, not just a claim of clarity.
- Match the curve to the actual thickness of the sheet or film you will use.
- Check whether the material contains UV inhibitors, hard coats, pigments, or stabilizers.
- Confirm whether the application also cares about haze, fluorescence, chemical resistance, or sterilization.
- Verify the fabrication method: machining, thermoforming, heat sealing, welding, or lamination can all affect the final part.
- Test a sample under the real lamp, real exposure time, and real environment before committing to volume production.
If I had to reduce the whole topic to one rule, it would be this: do not approve a UV-transmitting plastic until you have matched the wavelength, thickness, and service conditions together. That is the difference between a sheet that looks right on paper and one that actually performs in the field.
