Does Resin Stick to Acrylic? The Truth About Bonding

Does resin stick to acrylic? Sometimes, but not consistently enough to trust without testing. In practice, the answer depends on the resin chemistry, the acrylic grade, and whether you want a temporary release surface or a permanent bond. This article breaks down the real-world behavior, the prep steps that matter, and the adhesives I would choose when acrylic has to hold up under load.

Why acrylic and resin do not behave like an easy pair

Acrylic, or PMMA, has a smooth surface and a chemistry that does not always give generic resin much to grab onto. Adhesion is not just about chemistry; it is also about wetting, meaning how fully the liquid spreads across the surface before it cures. A glossy acrylic panel can look bondable and still fail the moment the joint sees peel load, vibration, or a temperature swing.

I also separate cast acrylic from extruded acrylic in my head. Cast sheet usually gives more consistent bonding results, while extruded sheet can be more sensitive to stress cracking and solvent attack. That does not make one good and the other unusable, but it does change how cautious I am with resin, heat, and clamp pressure. A glossy sheet can release cleanly in one formulation and grab hard in another, so I never treat acrylic as a universal mold surface.

Once you understand that difference, the next step is deciding whether you are trying to bond the sheet or simply release from it.

How to improve adhesion without damaging the sheet

When I do want resin to hold to acrylic, I start with the least dramatic changes first: clean the surface, then create a controlled amount of tooth. A wipe with isopropyl alcohol removes fingerprints and silicone contamination; a light abrasion with 320-400 grit paper gives the adhesive something to key into without turning the panel cloudy. After that, I clean again and avoid touching the bond area with bare hands.

The part people miss is that abrasion should be light and even, not aggressive. Deep scratches weaken the appearance and can create stress risers, which is a bad trade on clear acrylic. If the bond line must stay visually clean, I prefer a small test coupon before I commit to the real part, because the same adhesive can look perfect on the bench and ugly under shop lighting. I also avoid flame treatment on acrylic unless the adhesive manufacturer explicitly allows it; the risk of distortion and crazing is too high for most practical jobs.

• Clean with a lint-free cloth and a plastic-safe solvent.
• Scuff only the bonding zone, not the visible faces.
• Dry-fit before mixing so the adhesive is not fighting alignment.
• Use moderate clamping pressure; starving the bond line is a common mistake.
• Let the resin reach full cure before load testing, usually 24-72 hours depending on the product.

Once the surface is prepared, the real choice is not just resin or no resin, but which bonding chemistry gives the joint the best odds.

Which resin and adhesive types actually work best

In practice, standard epoxies are a poor match for acrylic thermoplastics. Many structural acrylic adhesives are MMA-based, meaning methyl methacrylate systems designed specifically for plastic bonding, and that matters because plastics behave very differently from metal or wood. If the goal is a clean, durable acrylic joint, I usually reach for an acrylic-specific adhesive or solvent welding before I force a casting resin to do an adhesive’s job.

If I need a clear, durable acrylic joint, I treat solvent welding and structural acrylic adhesives as the serious options. That choice is often the difference between a joint that merely looks fine and one that survives real use.

When resin should not be the bonding method

There are plenty of cases where the right answer is simply no, not with resin. If the joint needs to carry load, resist peel, or stay dimensionally stable through temperature cycling, a generic resin bond is usually too unpredictable for my taste. The problem is not only ultimate strength; it is also long-term creep, edge lifting, and the risk of crazing, meaning the fine crack network that can appear in stressed acrylic.

That is why I avoid resin as the primary bond in four common situations. First, thin acrylic parts that can deform from heat. Second, clear display work where fogging would ruin the finish. Third, assemblies that see repeated shock or flexing. Fourth, joints that need a true chemical weld rather than a surface bond. In those cases, a purpose-made acrylic adhesive, mechanical fastening, or a solvent-weld system is the more honest engineering choice.

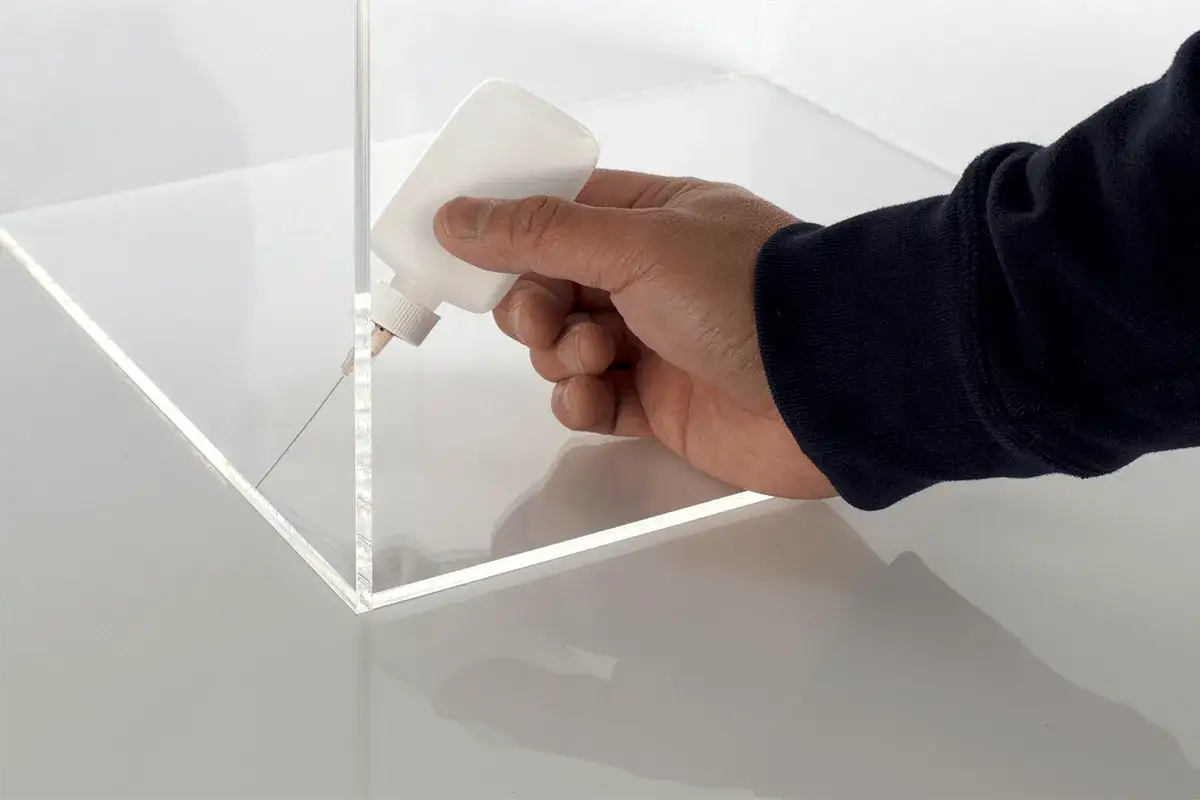

• Use solvent welding for acrylic-to-acrylic joins when clarity and strength matter.
• Use structural acrylic adhesive when you need plastic-to-metal or mixed-material bonding.
• Use mechanical fixation when future disassembly matters more than a hidden bond line.
• Use resin only after testing if the part is decorative, low-load, or noncritical.

Once the project type is clear, the remaining failures usually come from a handful of avoidable mistakes.

The mistakes that make acrylic bonds fail

The most common mistake is assuming all clear plastics are the same. They are not. Acrylic, polycarbonate, PETG, and PVC each react differently to resin, heat, and solvent-based products, and mixing them up is how people end up with cloudy edges or weak joints. The second mistake is over-clamping; if you squeeze all the adhesive out of the bond line, you have not made a stronger joint, just a drier one.

Another failure point is rushing cure. Many resin systems feel firm before they are actually ready to carry load, and acrylic does not forgive that kind of impatience. I also see contamination far too often: release agents from molds, polishing compounds, fingerprints, and even residue from paper towels can ruin adhesion. In the shop, the difference between a reliable bond and a frustrating one is often the unglamorous work nobody wants to do twice.

• Do not bond glossy acrylic without at least a light scuff on the hidden side.
• Do not assume “clear” means “compatible”.
• Do not use a thick resin bead where a thin, controlled bond line is better.
• Do not skip a small compatibility test on scrap.
• Do not load the joint before full cure.

That leaves one final question: what should you actually choose when the part is on your bench right now?

What I would choose for a real acrylic project

My rule is simple: choose the chemistry that matches the job, not the chemistry that happens to be on hand. That one decision saves more failed acrylic parts than any trick with sandpaper ever will, and it is the safest way to move from guesswork to repeatable results.
