Choosing plastics for electronics is rarely about picking the cheapest resin. I look at how the part handles heat, insulation, flame behavior, dimensional stability, and chemical exposure before I even think about color or finish. That matters because the same plastic can be perfect for a consumer enclosure and wrong for a connector body, a sensor carrier, or a flexible circuit.
The safest material choice starts with the part’s failure mode
- Electronics plastics have to do more than look clean; they must insulate, stay dimensionally stable, and survive heat and flame requirements.
- UL 94 is a common starting point, but it is only one piece of the selection puzzle.
- PC, PBT, PA, PPS, LCP, PEEK, and polyimide each fit different electronics jobs.
- Moisture, creep, tracking resistance, and chemical exposure often decide whether a part lasts in the field.
- Thin-wall connectors, housings, and flex circuits need different material logic, even when they share the same product.
What electronic parts actually ask of a plastic
I think of electronics plastics as functional materials, not packaging. A housing may need impact resistance and a good surface finish, but a connector shell needs electrical insulation, flame resistance, and enough stiffness to hold fine features without creeping out of shape. A spacer, standoff, or bobbin has a different job again: it has to preserve clearances, resist heat, and keep its dimensions after long service.
- Enclosures need impact toughness, appearance, and dimensional stability.
- Connectors need fine feature fill, low creep, and fire performance.
- Insulators and spacers need dielectric strength and tracking resistance.
- Flex circuits and cable-support parts need thermal stability and reliable bend behavior.
- Sensor carriers and precision mounts need stiffness with low warpage.
That is why I separate enclosure plastics from connector plastics and from flexible-film materials before I compare prices, because the failure mode is usually different in each case. That leads directly to the material families I shortlist first.
The material families I shortlist first
When the requirement is still broad, I start with a small set of proven thermoplastics and then narrow by heat, flame, geometry, and process. The table below is the way I usually think about them in practice.
| Material family | Where it fits best | What it does well | Main tradeoff |
|---|---|---|---|
| Polycarbonate (PC) | Protective covers, bezels, windows, rugged consumer housings | High impact strength, good appearance, transparent options | Can be sensitive to chemicals and stress cracking |
| PC/ABS | Portable device shells, laptop and accessory housings | Balanced impact, processability, and surface quality | Usually not the first choice for hotter electrical zones |
| PBT | Connectors, sensor housings, coil bobbins, small electrical parts | High rigidity, low creep, strong dimensional stability | Moisture and heat aging still need attention in harsh service |
| PA6 / PA66 | Clips, brackets, cable-management parts, some connector shells | Good strength and wear resistance | Moisture uptake can change size and properties |
| PPS | Socket parts, power-adjacent components, chemically exposed hardware | Excellent chemical resistance and strong performance above 200°C | Can become brittle in the wrong grade or geometry |
| LCP | Thin-wall connectors, very small components, compact interconnect parts | Excellent flowability and strong performance in tight geometries | Cost is higher, and design mistakes show up quickly |
| PEEK | High-temperature insulators, harsh-environment parts, semiconductor hardware | Very high heat resistance, good chemistry resistance, stable performance up to 250-260°C | Expensive and often overkill for ordinary housings |
| Polyimide | Flexible circuits, insulating films, compact high-heat interconnects | Strong electrical insulation, heat resistance, dimensional stability | Best for film and flexible constructions, not general enclosure work |

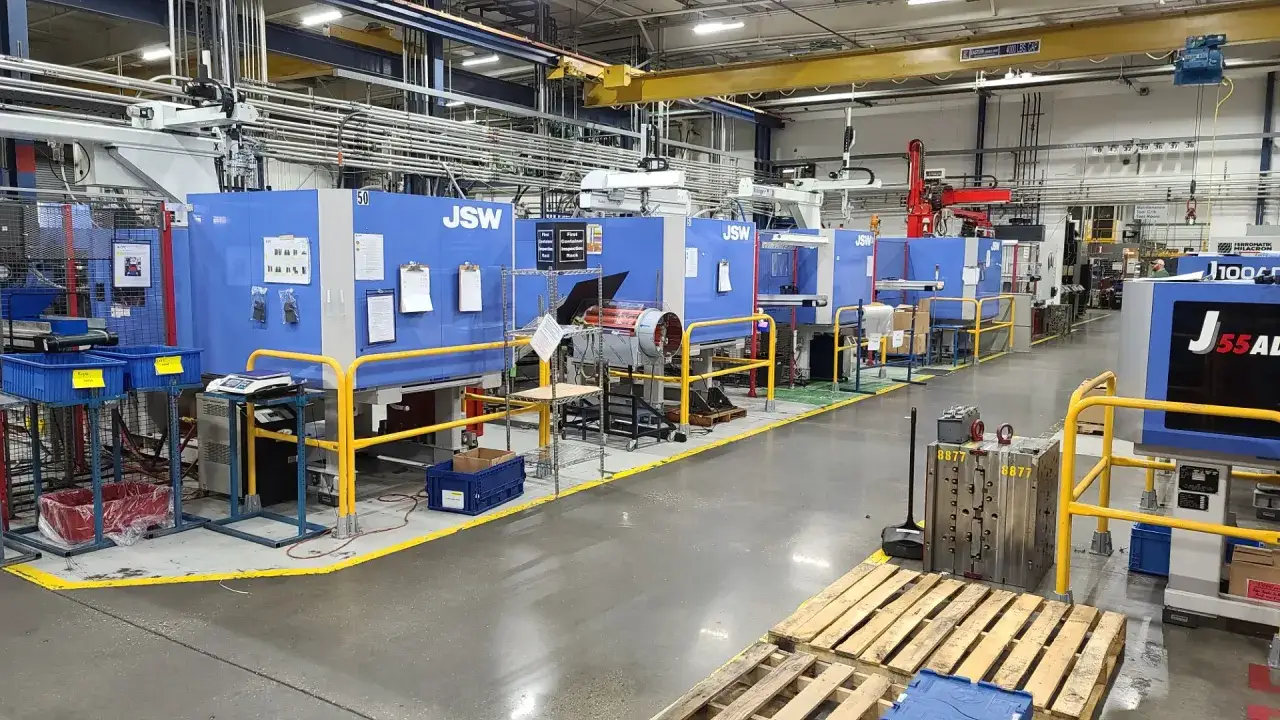

Two details matter more than many teams expect. First, a filled or flame-retardant grade often behaves like a different material, not just a minor variant. Second, the process matters as much as the polymer family: injection molding suits most housings and connector shells, machining is useful for prototypes or low-volume precision insulators, and polyimide belongs in flex and film constructions rather than in ordinary molded parts.
Once I have this shortlist, I stop asking “Which plastic is best?” and start asking which failure mode I need to control first.
How I match the resin to the failure mode
Heat is usually the first filter
If a part sits near power semiconductors, motor drivers, LEDs, or board-level soldering, I care about heat before almost anything else. Reflow is the heat cycle used when solder melts and wets the board, and some plastics survive it well while others warp, shrink, or lose strength. In those cases I look at heat deflection, long-term aging, and the real service temperature, not just the datasheet headline.
Electrical insulation is not the same as electrical safety
A plastic can be a good insulator and still be a bad choice for a contaminated or humid environment. One metric I pay attention to is CTI, the comparative tracking index, which is a measure of how easily a material forms conductive surface paths under contamination and moisture. If the part has tight creepage distances, I want a material that resists tracking, not just one that looks electrically “nonconductive” on paper.
Moisture and chemicals can change the outcome quietly
Nylon is the classic example: it is strong and useful, but moisture absorption can change dimensions and behavior enough to matter in a tight-tolerance part. PBT is often a better fit when I need lower creep and more stable dimensions, while PPS and PEEK make more sense when cleaners, flux residues, oils, or other chemicals are part of the environment. I treat chemical resistance as a real design input, not an afterthought.
Read Also: Injection Molding - Design, Cost & When to Choose It
Creep matters when tolerances stay tight under load
Creep is slow deformation under sustained load. It is the reason a clip, latch, or connector housing can pass assembly and still become loose after months of service. When load and temperature are both present, I favor stiffer, more dimensionally stable grades, often with glass reinforcement, but I also check whether the added filler will make the part too brittle or too abrasive for the surrounding components.
When those four filters are clear, the next question is whether plastic should do the job alone or share it with metal or ceramic.
Where plastic is the right answer and where it is not
I like plastics when the part needs to shape, insulate, lighten, or simplify assembly. I become cautious when the part must move heat, block EMI on its own, or carry high structural loads in a hot zone. That is the point where a plastic-only answer often becomes a compromise too far.
| Need | Plastic works well when | Plastic struggles when | I would look at instead |
|---|---|---|---|
| Lightweight enclosure | Impact, appearance, and electrical isolation matter most | Heat build-up or severe EMI dominate the design | Metal frame with plastic cover, or conductive shielding |
| Connector body | Fine features and flame resistance are the priorities | Very high mating force or high heat pushes the limits | PPS, LCP, or a higher-performance reinforced grade |
| Thermal path | Isolation matters more than heat spreading | You need the part to act like a heat sink | Metal, ceramic, or a hybrid design |
| EMI control | A conductive coating or shield can be added | The plastic itself must provide the shielding | Metal can, foil shield, or conductive composite |
| High-voltage insulation | The environment is clean and creepage distances are designed carefully | Humidity, contamination, or tight spacing raise the risk | Ceramic, more spacing, or a different insulation architecture |
Most of the time, the smartest design is a hybrid one: plastic where insulation and form are useful, metal where heat or shielding dominates, and a coating or insert only where it actually earns its keep. That practical split is also where many teams avoid rework, which is why the next section is about the mistakes I see most often.
The mistakes that create expensive rework
- Choosing by polymer name only rather than by exact grade. A base resin and its flame-retardant, glass-filled, or low-warpage version can behave very differently.
- Treating UL 94 V-0 as the whole answer. It is useful, but it does not automatically cover electrical tracking, aging, or the full product enclosure.
- Ignoring moisture conditioning. Nylon and some other engineering plastics can change dimensions enough to break a tight fit or alter electrical behavior.
- Overlooking filler effects. Glass fiber can improve stiffness, but it can also change shrink, wear, surface finish, and brittleness.
- Designing walls the resin cannot fill cleanly. Thin sections, sharp corners, and abrupt thickness changes cause warpage, short shots, or stress concentration.
- Forgetting the chemicals around the part. Flux, cleaners, lubricants, battery electrolytes, and even skin oils can be enough to attack the wrong plastic.
I usually find that the cheapest mistake is the one caught during prototype, and the most expensive one is the one that only appears after tooling and launch. The way I reduce that risk is with a simple specification checklist.
The checklist I use before I sign off on a material
- Define the maximum continuous temperature and any short thermal spikes from reflow, nearby semiconductors, or power loss events.
- State the electrical job clearly: insulation, creepage and clearance support, CTI target, or signal-integrity needs.
- Set the fire requirement early, including whether the part needs UL 94 V-0, V-1, HB, or another class at the final wall thickness.
- Describe the environment in plain language: humidity, UV, cleaners, oils, vibration, salt exposure, or battery chemistry.
- Match the resin to the process: injection molding, machining, overmolding, or film lamination.
- Check whether the part needs stiffness, impact resistance, creep resistance, or snap-fit life, because those priorities do not always align.
- Ask for the exact grade, not just the family name, along with the actual test conditions used for the data.
If I can describe the part’s temperature, voltage, environment, and manufacturing method in one paragraph, the material choice usually becomes much clearer. That is the real value of working with plastics in electronics: not picking a universal winner, but matching the resin to the job so the part survives the way it is actually used.
